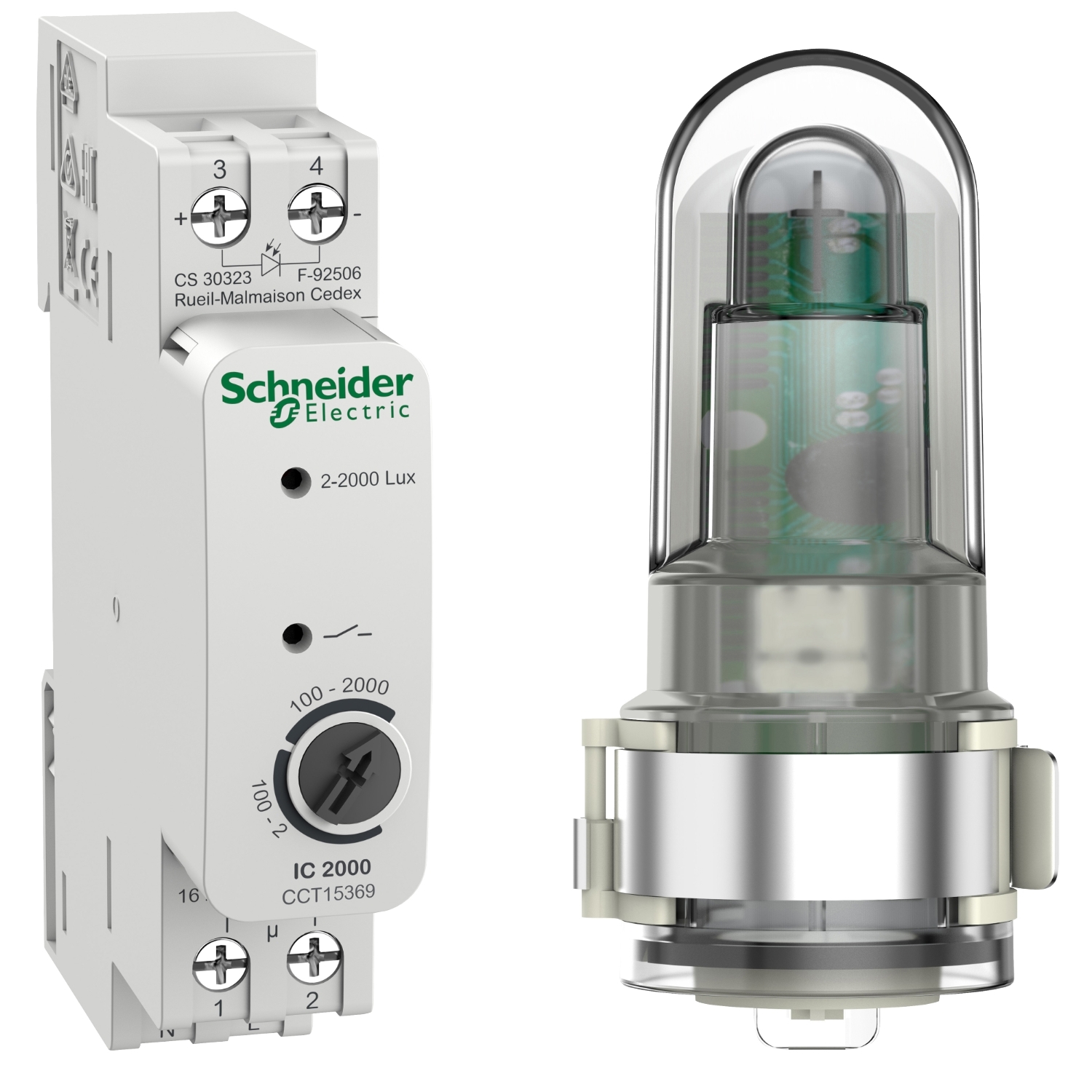

IC2000 analogue twilight switch Width of 18mm (2 modules of 9mm) Closing and opening of a contact when brightness decreases, or rises above the selected threshold. Adjustable brightness threshold: 2 to 2000 lux Delivered with outdoor wall-mounted sensor 1 channel output
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | IC2000 |
| Range | Acti9 |
| Product name | Acti9 IC |
| Product or component type | twilight switch |
| Provided equipment | twilight sensor outdoor |
| Load type | > 2 W LED lamp: 200 W, < 2 W LED lamp: 30 W, compact fluorescent lamp: 170 W, parallel compensated fluorescent lamp: 730 VA (80 µF), serial-compensated fluorescent tube: 2300 VA, non-corrected fluorescent tube: 2300 VA, halogen lamp: 2600 W, incandescent lamp: 2600 W |
| Complementary | |
| Device application | building |
| Maximum power consumption in W | 0.5 W stand by |
| Depth | 67 mm |
| Overvoltage category | class 3 |
| Output type | dry contact |
| Width | 18 mm |
| Light intensity adjustment | 2-2000 lux |
| Mounting support | TH35 DIN rail conforming to EN 60715 |
| Number of channels | 1 |
| Contacts type and composition | 1 NO |
| Electrical insulation class | class II |
| Control type | by brightness detection |
| Connections - terminals | 2 x 0.5-2.5 mm² screw terminals solid or flexible, 1 x 2.5-2.5 mm² screw terminals solid or flexible with sleeve |
| Time delay | 80 s off, 20 s on |
| Net weight | 111 g |
| Marking | CE |
| Accuracy | +/- 0.25 s/day 25 °C |
| [Ue] rated operational voltage | 230 V AC +10 % -15 % at 50/60 Hz |
| Total power losses | 0.3 W |
| Maximum switching current | 16 A - 250 V AC pf = 1 , 10 A - 250 V AC pf = 0.6 |
| Height | 85.5 mm |
| Minimum switching current | 100 mA 24 V AC/DC, 10 mA 230 V AC |
| Environment | |
| IP degree of protection | IP55 (sensor), IP20 |
| Relative humidity | 90-90 %, non-condensing |
| Ambient air temperature for storage | -30-70 °C |
| Standards | EN 60669-2-1 |
| Ambient air temperature for operation | -30-55 °C |
