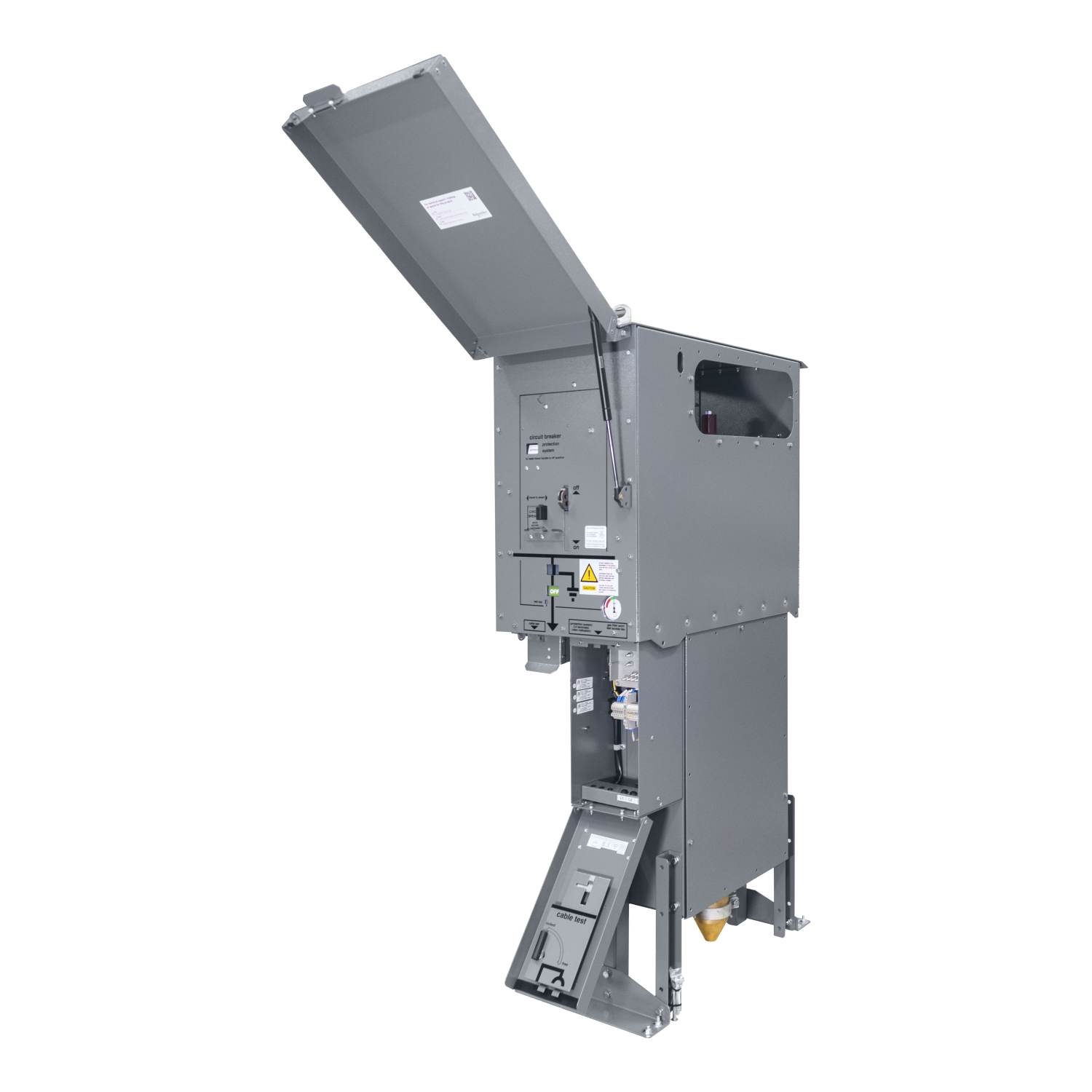

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 11 kV |
| Rated short-time withstand current (Ik) | 21 kA rms 3 s |
| Device application | distribution |
| Rated continuous current (Ir) | 200 A |
| Enclosure type | DE (double extensible) |
| Product or component type | switchboard |
| Remote control type | without |
| Variant | modular version |
| Standards | IEC 62271-200 |
| Network type | AC |
| Extensibility kit | provided |
| Rated voltage (Ur) | 12 kV |
| Technology type | gas insulated switchgear |
| Rated frequency (fr) | 50 Hz |
| Device composition | shunt trip |
| Range of product | Ringmaster |
| Rated lightning impulse withstand voltage (Up) | 95 kV |
| Number of functions | 1 |
| Complementary | |
| Height | 1630 mm |
| Relay type | voltage measurement relay VPIS, current control relay VIP 400 |
| Local signalling | voltage presence indicator light |
| Bus rated current | 630 A |
| IP degree of protection | IP54 |
| Product weight | 280 kg |
| Pressure sensor type | standard manometer |
| User language | English |
| Control type | motor mechanism (optional), manual |
| Mounting mode | free standing |
| Interlocking type | without interlock |
| Environment | |
| Operating altitude | < 1000 m |
| Product certifications | IEC |
