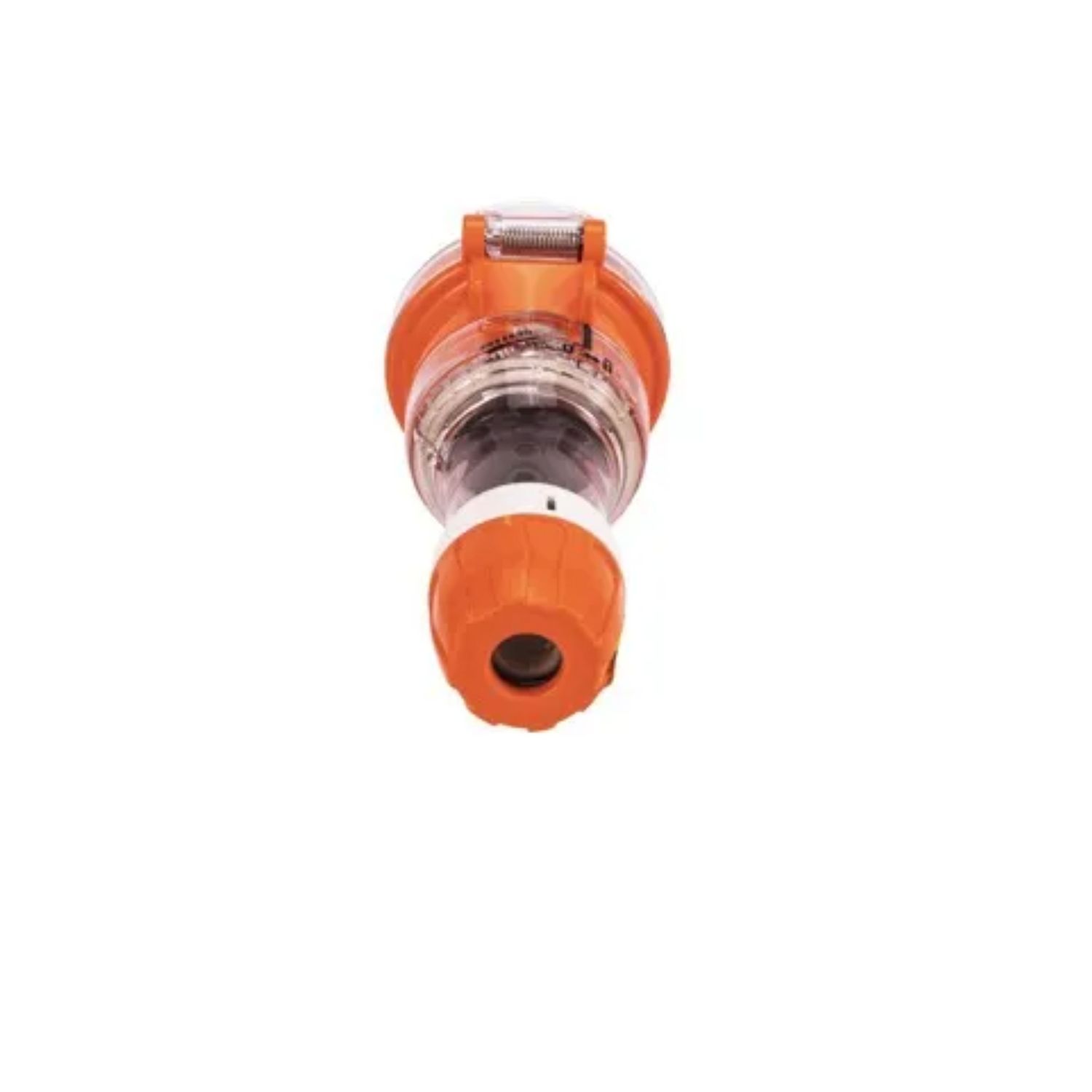

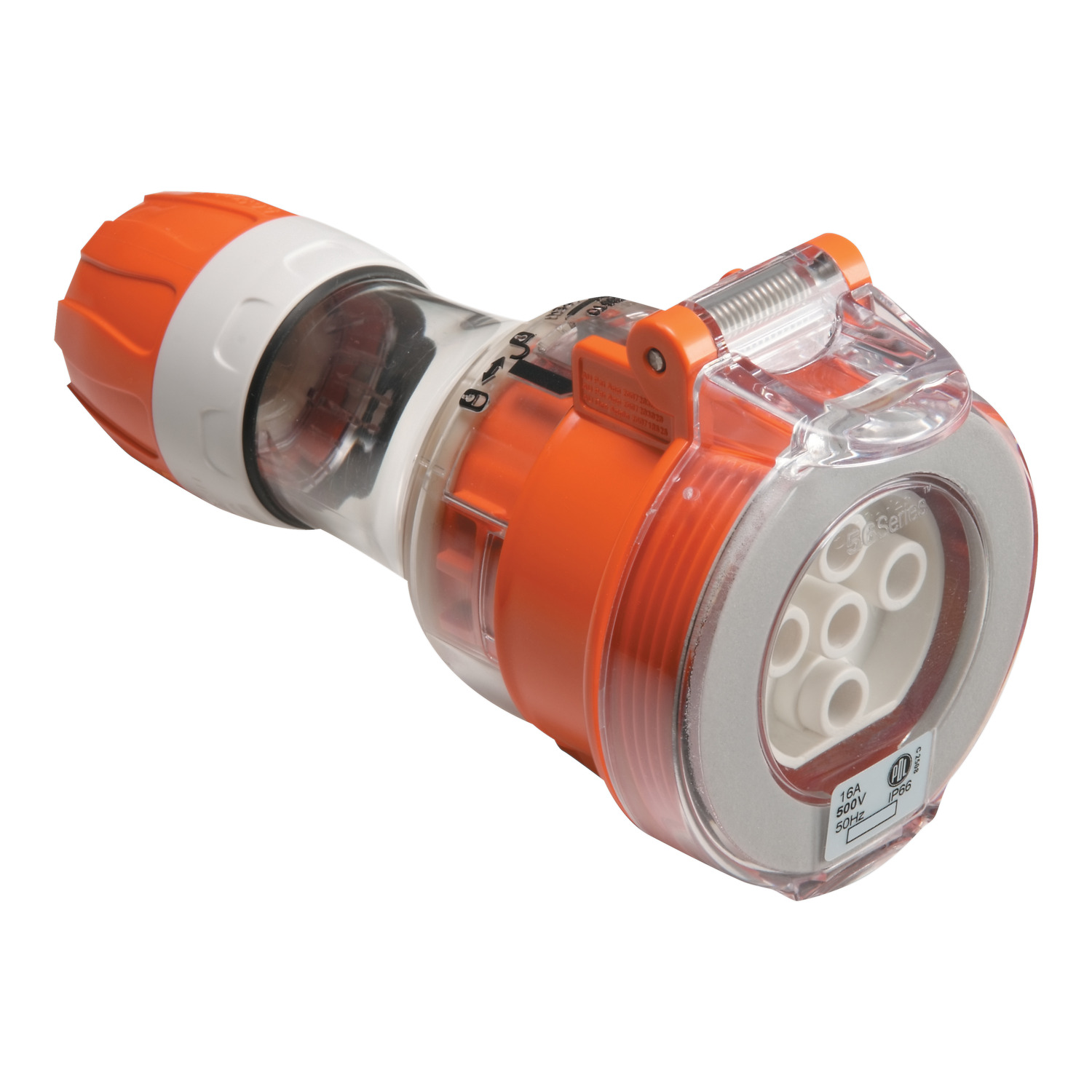

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | power supply |
| Colour | orange (RAL 2004) |
| Range | Clipsal - 56 Series |
| Product or component type | socket |
| Range of product | Series 56 |
| Product brand | Clipsal |
| Complementary | |
| Cable outer diameter | 7-16 mm |
| Depth | 173 mm |
| Market segment | small commercial, industry, utility |
| Plug, socket category | low voltage |
| Width | 90 mm |
| Outlet standard | industrial |
| [In] rated current | 20 A |
| Cable entry | cable gland |
| Poles description | 3P + N + E |
| Material | polycarbonate: housing |
| Mounting mode | external mounting |
| Thread type | M25 |
| Voltage colour | black |
| Colour code | EO |
| Net weight | 0.272 kg |
| Length | 173 mm |
| Socket-outlet type | R |
| Plug, socket, control station shape | straight |
| Socket number | 1 |
| Contacts material | sleeves: brass |
| [Ue] rated operational voltage | 500 V AC 50 Hz conforming to EN 60309-2 |
| Duration | 7 h |
| Height | 90 mm |
| Connections - terminals | screw terminal, screw terminals 1-6 mm² |
| Targeted country | Australia |
| Environment | |
| IP degree of protection | IP66 conforming to AS 60529 |
| Standards | AS/NZS 3120 |
| Ambient air temperature for operation | -25-75 °C |
