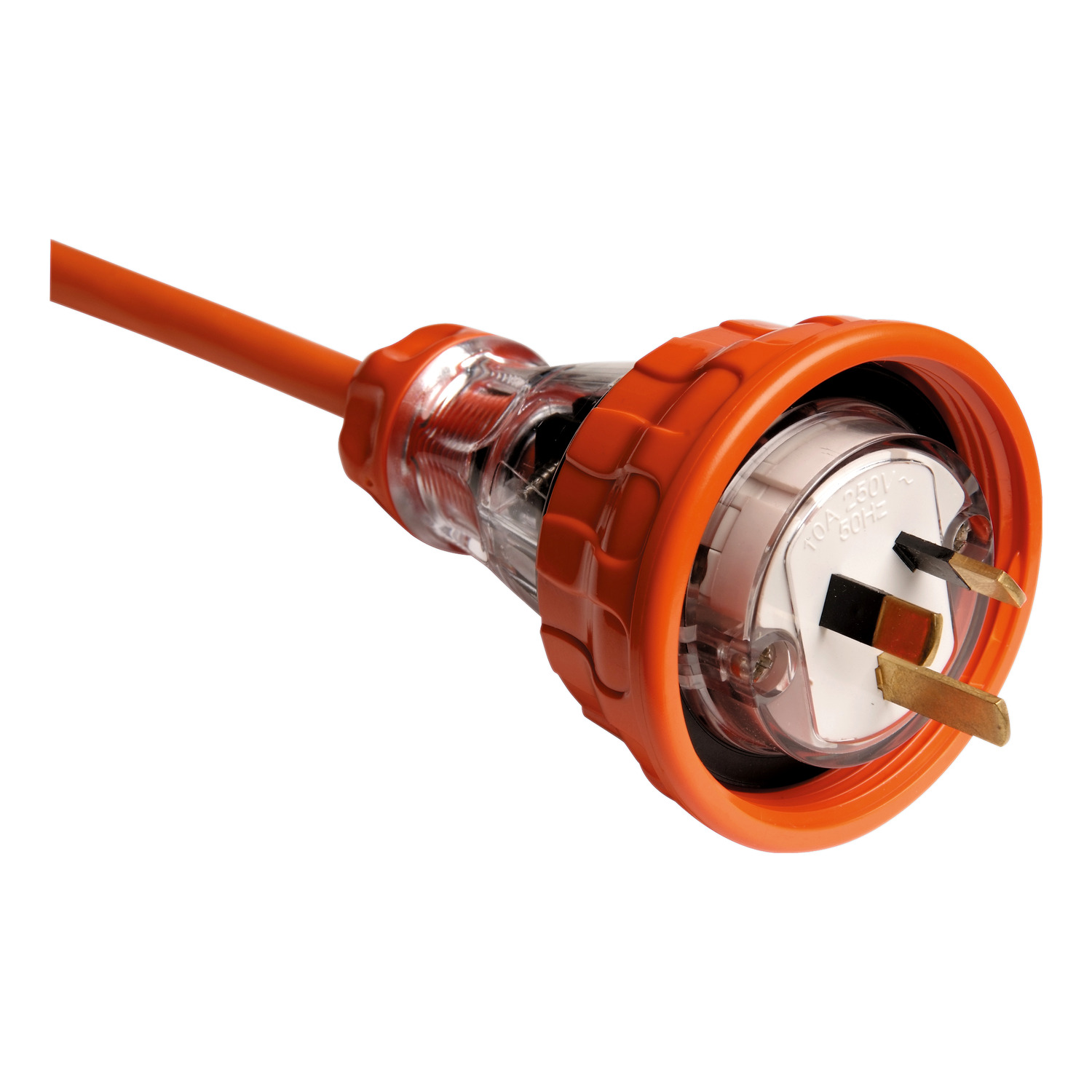

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Number of poles | 3 |
| Device application | power supply |
| Range | Clipsal - 56 Series |
| Product or component type | plug |
| Range of product | Series 56 |
| Product brand | Clipsal |
| Complementary | |
| Depth | 112.5 mm |
| Market segment | small commercial, utility, industry |
| Plug, socket category | low voltage |
| Width | 67 mm |
| Colour | orange (RAL 2004) |
| Outlet standard | industrial |
| [In] rated current | 10 A |
| Cable entry | cable gland |
| Pin arrangement | A |
| Poles description | 1P + N + E |
| Material | polycarbonate: housing, plastic |
| Quality labels | RCM |
| Wire stripping length | 10 mm, 35 mm |
| Thread type | M20 |
| Voltage colour | blue |
| Colour code | EO |
| Net weight | 0.12 kg |
| Plug, socket, control station shape | straight |
| Contacts material | pins: brass |
| [Ue] rated operational voltage | 250 V AC 50 Hz conforming to EN 60309-2 |
| Duration | 6 h |
| Height | 67 mm |
| Targeted country | Australia |
| Connections - terminals | screw terminal 0.75-1 mm² |
| Environment | |
| IP degree of protection | IP66, IP66 conforming to AS 60529 |
| Standards | AS/NZS 3112 |
| Ambient air temperature for operation | -25-75 °C |
