Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | power supply |
| Colour | grey (RAL 7035) |
| Range | Clipsal - 56 Series |

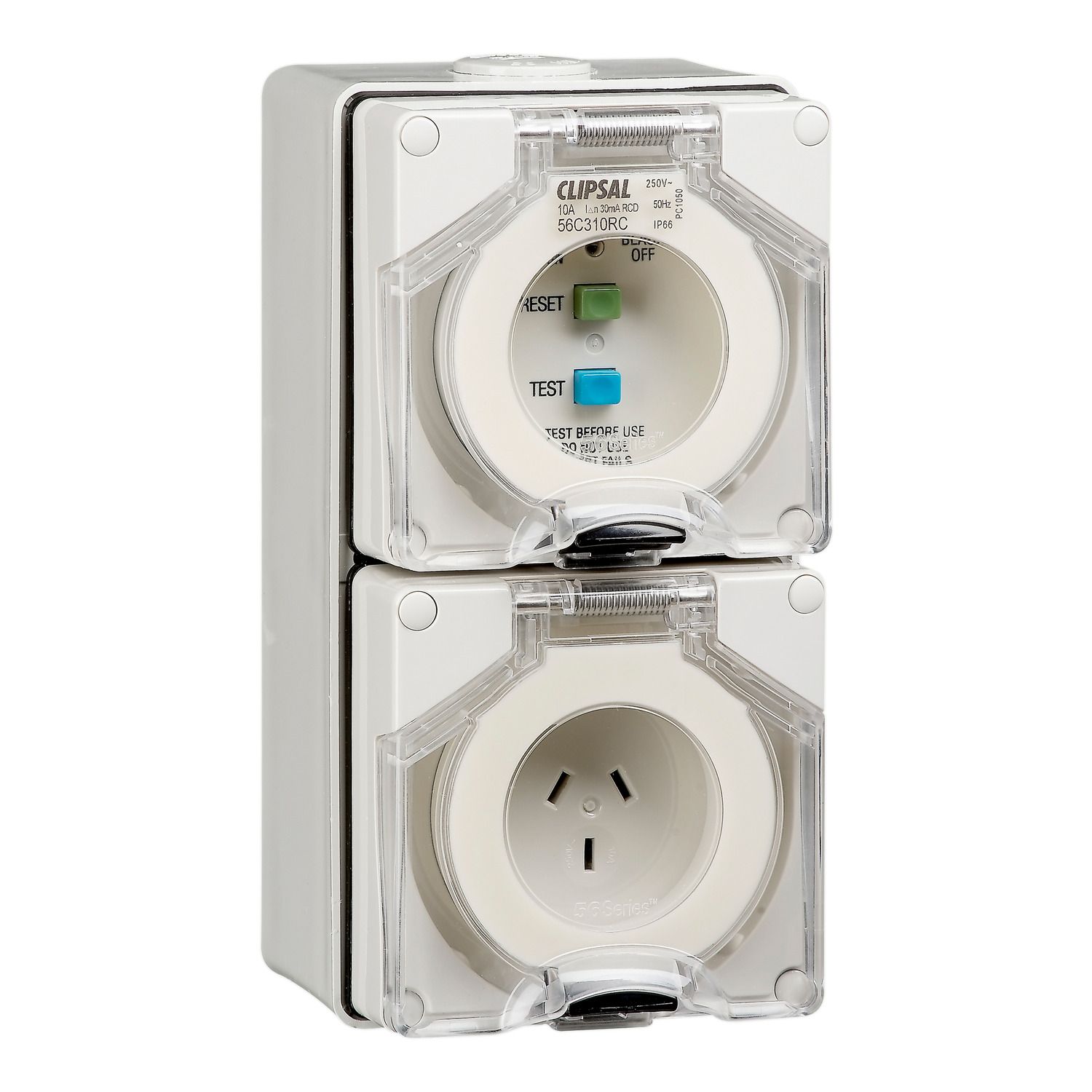

| Product or component type | socket-outlet with residual current device |
| Range of product | Series 56 |
| Product brand | Clipsal |
| Complementary | |
| Number of poles | 3 |
| Depth | 102 mm |
| Market segment | small commercial, industry, utility |
| Width | 101 mm |
| [In] rated current | 10 A |
| Material | polycarbonate |
| Number of power socket outlets | 1 protective cover |
| Installation direction | vertical |
| Control type | push-button |
| Colour code | GY |
| Net weight | 0.94 kg |
| Network number of phases | 1 phase |
| Connections - terminals | screw terminals cable(s) 1-6 mm² |
| Number of gangs | 2 gangs |
| Device mounting | surface |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Height | 204 mm |
| Targeted country | Australia |
| Environment | |
| Electrical insulation class | class II |
| IP degree of protection | IP66 |
| Earth-leakage protection class | type A |
| Ambient air temperature for operation | -25-75 °C |
