Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | protection |
| Poles description | 2P |
| Range | Clipsal - 56 Series |

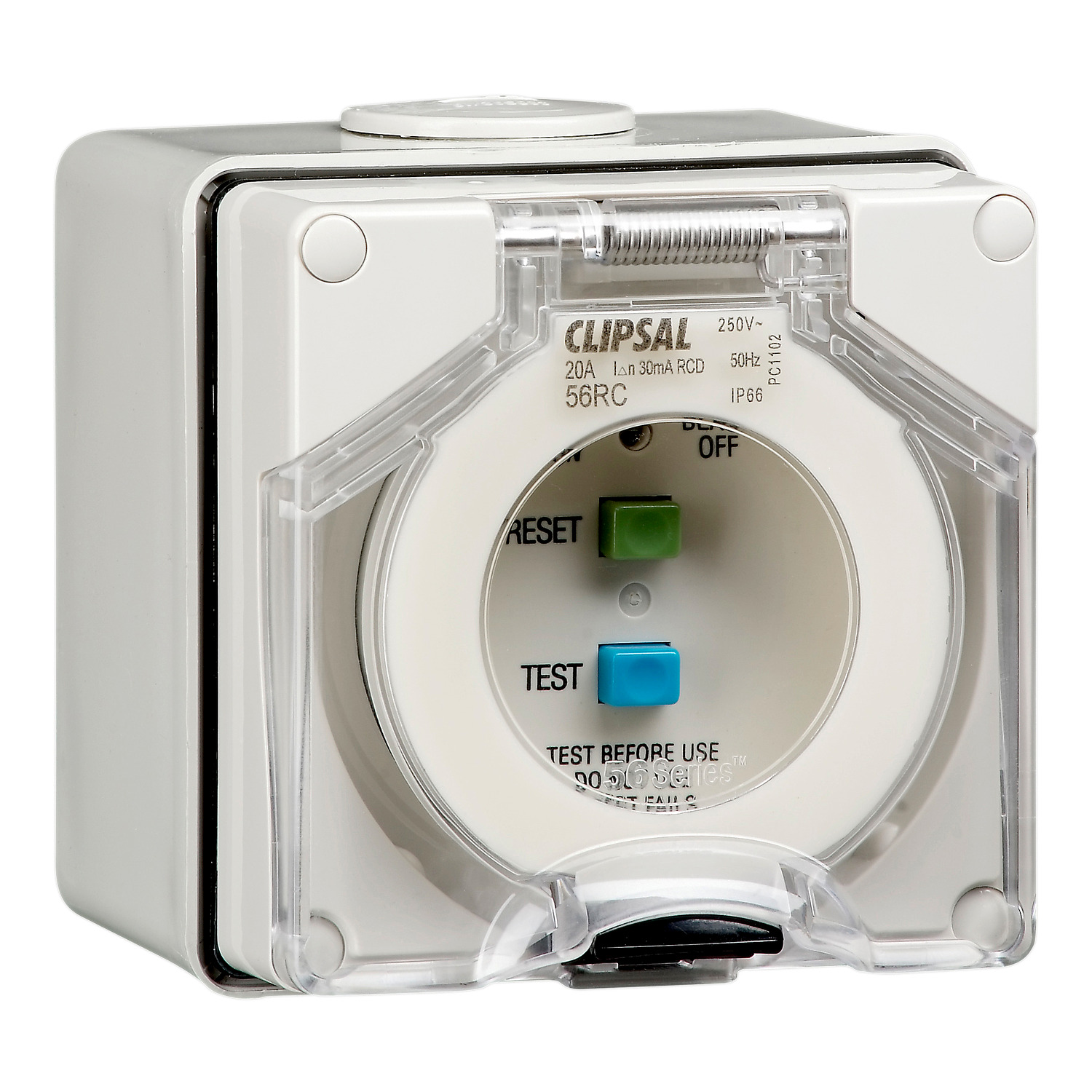

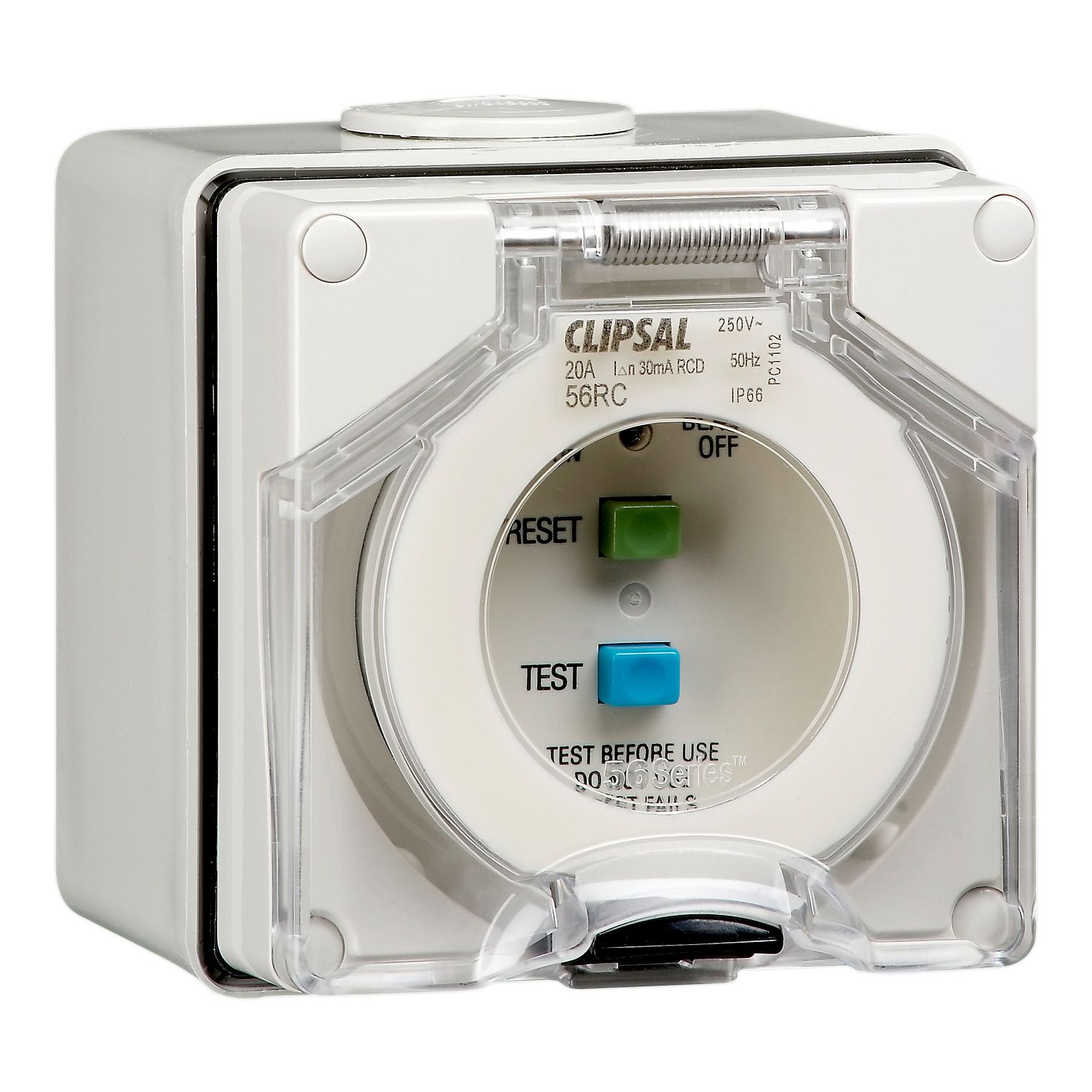

| Product or component type | residual current circuit breaker (RCCB) |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection class | type A |
| Range of product | Series 56 |
| [In] rated current | 20 A |
| Product brand | Clipsal |
| Complementary | |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Depth | 101 mm |
| Market segment | industry |
| Width | 101 mm |
| Colour | grey (RAL 7035) |
| Protection type | earth-leakage protection |
| Cable cross section | 1-10 mm² |
| Mounting mode | surface mounted |
| Installation direction | vertical |
| Control type | push-button |
| Net weight | 0.58 kg |
| Material | polycarbonate |
| Size | 107 x 101 x 101 mm conforming to DIN 43880 |
| Mounting support | DIN rail |
| Number of gangs | 1 gang |
| Height | 101 mm |
| Targeted country | Australia |
| Environment | |
| Electrical insulation class | class II |
| IP degree of protection | IP66 |
| Ambient air temperature for operation | -25-75 °C |
