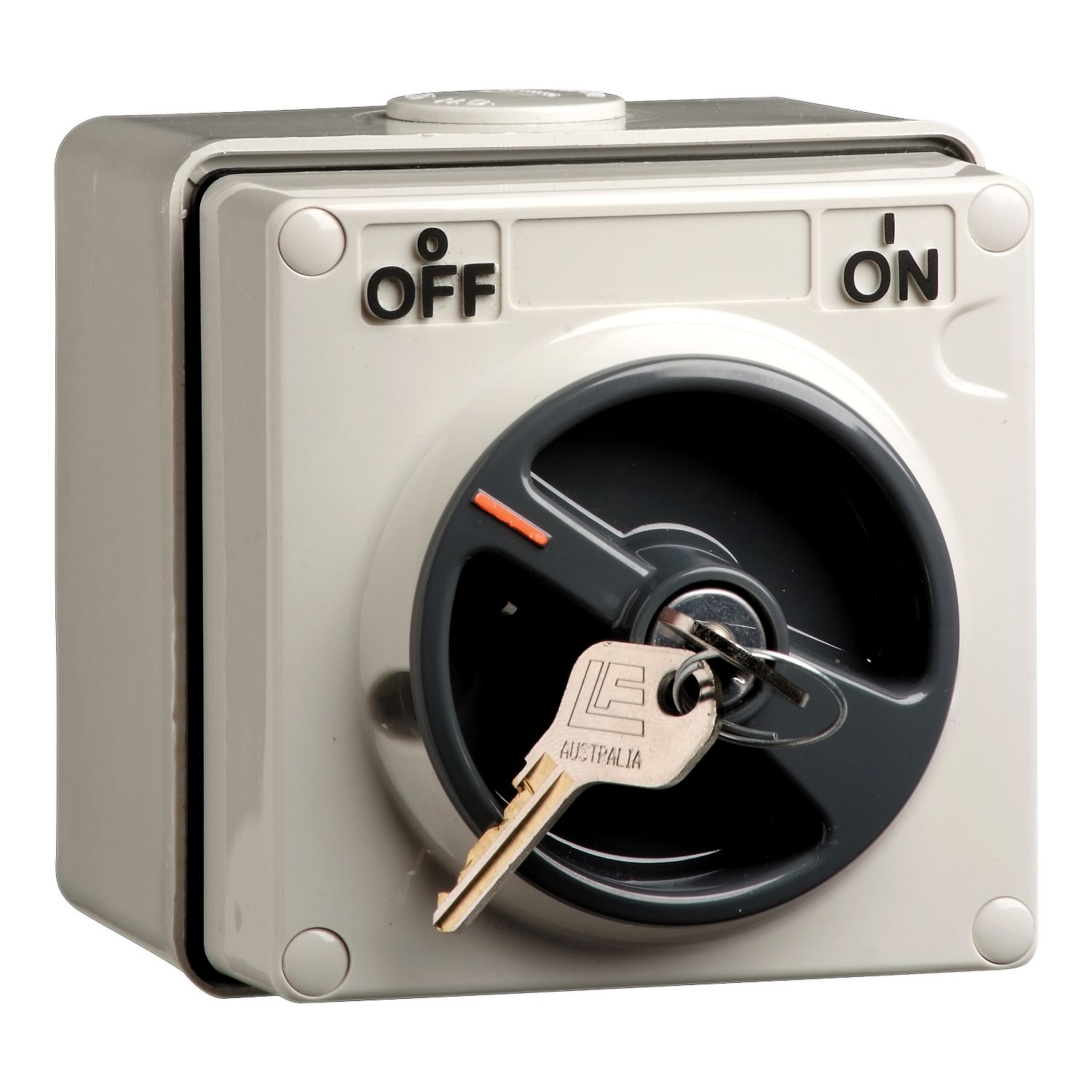

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | control |
| Colour | cover: grey |
| Device presentation | basic element with full cover plate |
| Range | Clipsal - 56 Series |
| Range of product | Series 56 |
| Suitability for isolation | yes |
| Product or component type | switch |
| Handle colour | grey |
| Product brand | Clipsal |
| Complementary | |
| [Icw] rated short-time withstand current | 1.2 kA for 1 s |
| Tightening torque | 0.8 N.m |
| Control type | rotary knob |
| Colour code | GY |
| Marking | ON-OFF |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Height | 107 mm |
| Targeted country | Australia |
| Number of poles | 1 |
| Breaking capacity | 32 kA |
| Depth | 112 mm |
| Market segment | utility, industry, small commercial |
| Width | 101 mm |
| Switch function | 1-pole |
| Poles description | 1P |
| Material | PC (polycarbonate) |
| Local signalling | without |
| Net weight | 0.504 kg |
| Marking location | marking on surface |
| Motor M-rating AS3133 | M250 at 250 V |
| Fixing mode | by screws |
| Rated current | 32 A |
| [Icm] rated short-circuit making capacity | 1 kA |
| Device mounting | surface |
| Actuator | key |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Rotary handle padlocking | 2 padlocks 8-8 mm |
| Environment | |
| IP degree of protection | IP66 conforming to AS 60529 |
| Standards | AS/NZS 3133 |
| Ambient air temperature for operation | -25-75 °C |
