Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Colour code | RAL 9010 |
| Quantity per set | set of 1 |
| Device presentation | two piece design |
| Range | Actassi |
| Type of packing | individual bag |

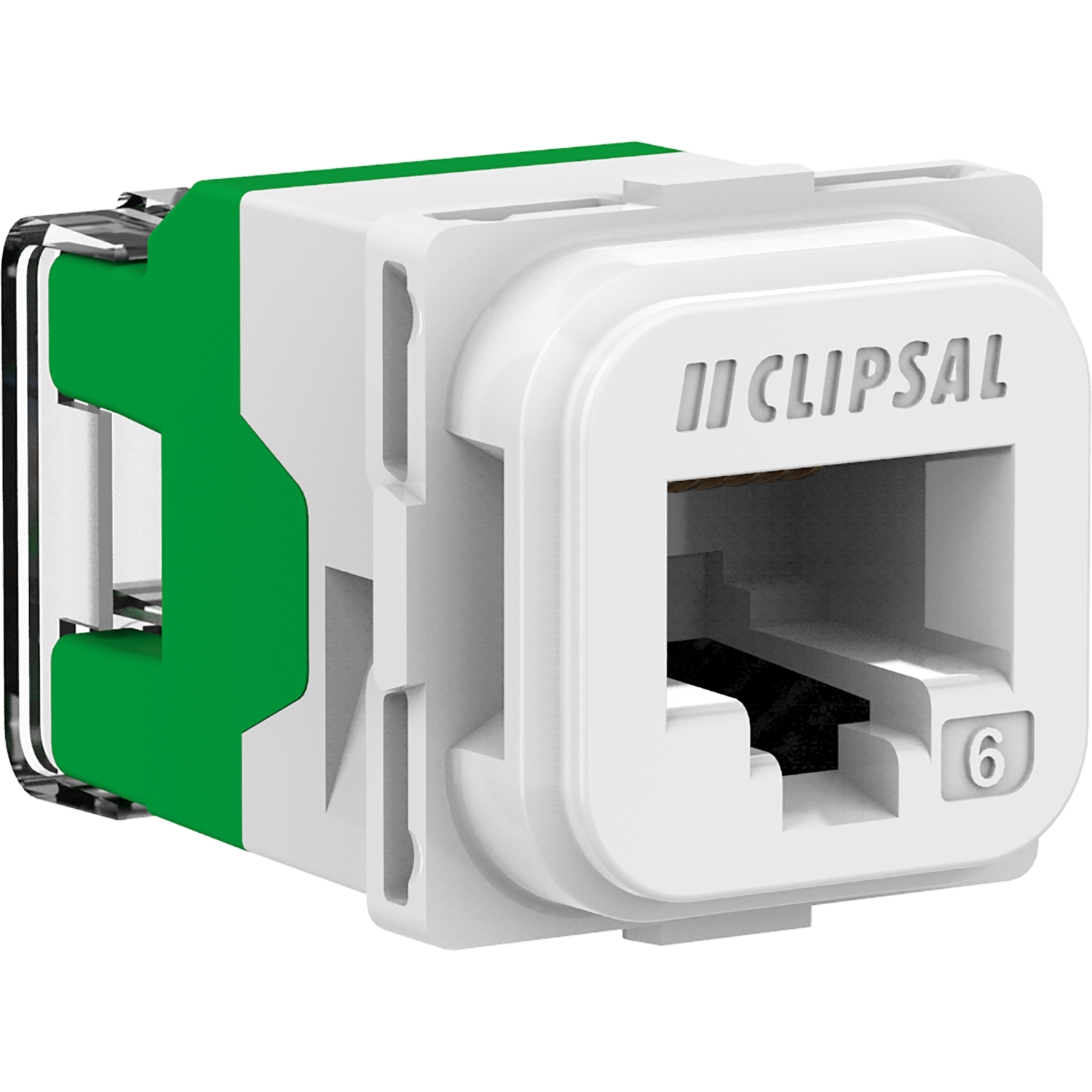

| Product name | Actassi S-110 |
| Product or component type | modular jack |
| Colour tint | top cover: transparent (PC), connector housing: white (ABS + PC) |
| Complementary | |
| Pin number | 8 pins of copper alloy and gold plated conforming to IEC 60603-7 |
| Contact resistance | 20 mOhm |
| Cable outer diameter | 0.9-1.4 mm |
| Product compatibility | RJ45 plug |
| Width | 16 mm |
| Communication network category | 6 |
| AWG gauge | AWG 24...AWG 23 |
| Mechanical durability | 750 cycles |
| Communication port protocol | 4PPoE 100W (Power over Ethernet), PoE+ 30W (Power over Ethernet Plus), PoE 15W (Power over Ethernet), PoE+ (Power over Ethernet) |
| Connector type | RJ45 |
| Transmission frequency | 1-250 MHz |
| Cable shielding type | UTP |
| Net weight | 0.008 kg |
| Length | 36 mm |
| Targeted region | Asia Pacific. |
| Tool type | quick termination tool, punch down tool |
| Insulation resistance | initial insulation resistance: > 500 MOhm at 100 V DC |
| Height | 22 mm |
| Connections - terminals | IDC |
| Type of footprint | 40 mech |
| Communication network type | 1000BASE-T |
| Environment | |
| Ambient air temperature for storage | -10-60 °C |
| Flame retardance | UL94-V0 |
| Product certifications | RCM, UL listed |
| Climatic withstand | 40/070/21 (21 days) |
| Standards | IEC 60512-99-002, IEC 60512-99-001, UL 1863, AS/NZS 3080:2003, ISO/IEC 11801:2011 Ed.2.2, IEC 60603-7-4, ANSI/TIA-568-C.2 |
| Ambient air temperature for operation | -10-60 °C |
