Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Colour code | TIA-568A/B |
| Quantity per set | set of 1 |
| Device presentation | two piece design |
| Range | Actassi |

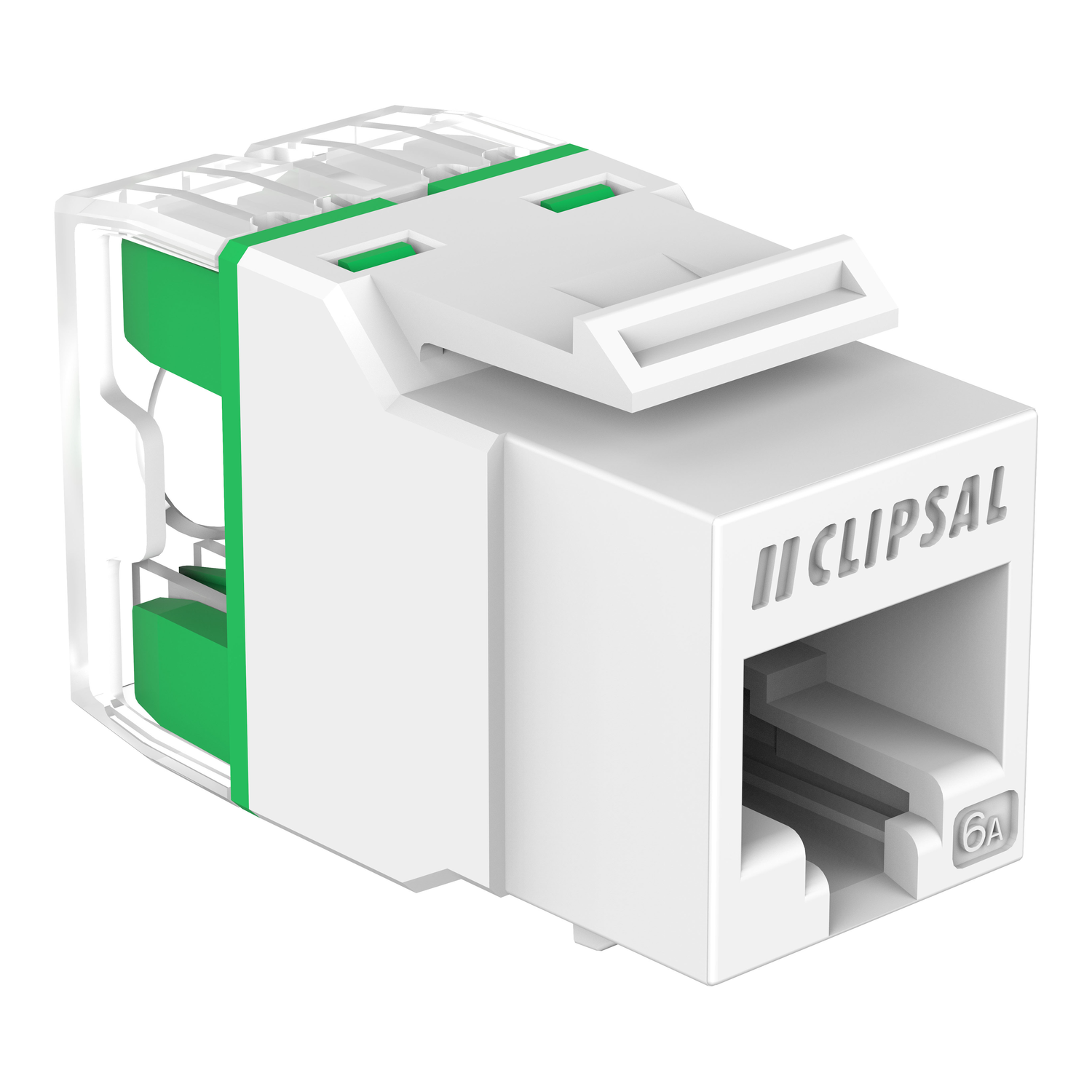

| Product name | Actassi S-110 |
| Product or component type | RJ45 connector |
| Colour tint | IDC cover: green (PC), top cover: transparent (PC), connector housing: white (ABS + PC) |
| Complementary | |
| Pin number | 8 pins of copper alloy and gold plated conforming to IEC 60603-7 |
| Contact resistance | 20 mOhm |
| Cable outer diameter | 0.9-1.4 mm |
| Product compatibility | RJ11 plug, RJ45 plug |
| Width | 16 mm, 0.052 ft |
| Communication network category | 6<sub>A</sub> |
| AWG gauge | AWG 24...AWG 23 |
| Mechanical durability | 750 cycles |
| Communication port protocol | 4PPoE 100W (Power over Ethernet), PoE+ 30W (Power over Ethernet Plus), PoE 15W (Power over Ethernet), PoE+ (Power over Ethernet) |
| Transmission frequency | 1-500 MHz |
| Cable shielding type | UTP |
| Permissible voltage | 1000 V AC/DC peak, between contacts |
| Length | 36 mm, 0.12 ft |
| Tool type | quick termination tool, punch down tool |
| Insulation resistance | initial insulation resistance: > 500 MOhm at 100 V DC |
| Height | 0.072 ft, 22 mm |
| Connections - terminals | insulation displacement contact |
| Type of footprint | S-110 keystone |
| [In] rated current | 1.5 A at 25 °C |
| Communication network type | 10GBASE-T |
| Environment | |
| Ambient air temperature for storage | -40-158 °F, -40-70 °C |
| Flame retardance | UL94-V0 conforming to UL listed |
| Product certifications | UL listed |
| Climatic withstand | 40/070/21 (21 days) |
| Standards | IEC 60512-99-002, IEC 60512-99-001, UL 1863, AS/NZS 3080:2003, ISO/IEC 11801:2011 Ed.2.2, IEC 60603-7-2, ANSI/TIA-568-C.2 |
| Ambient air temperature for operation | 14-140 °F, -10-60 °C |
