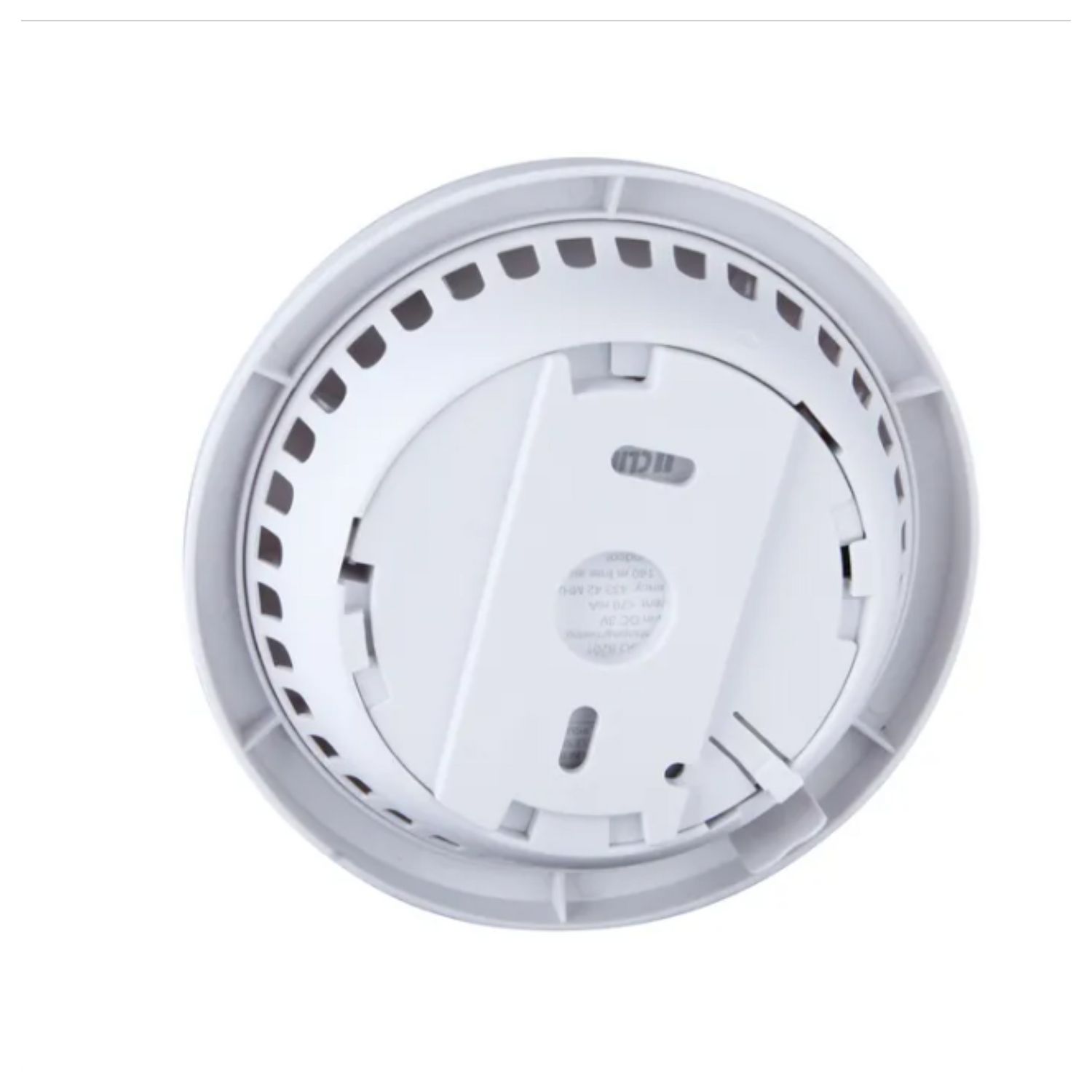

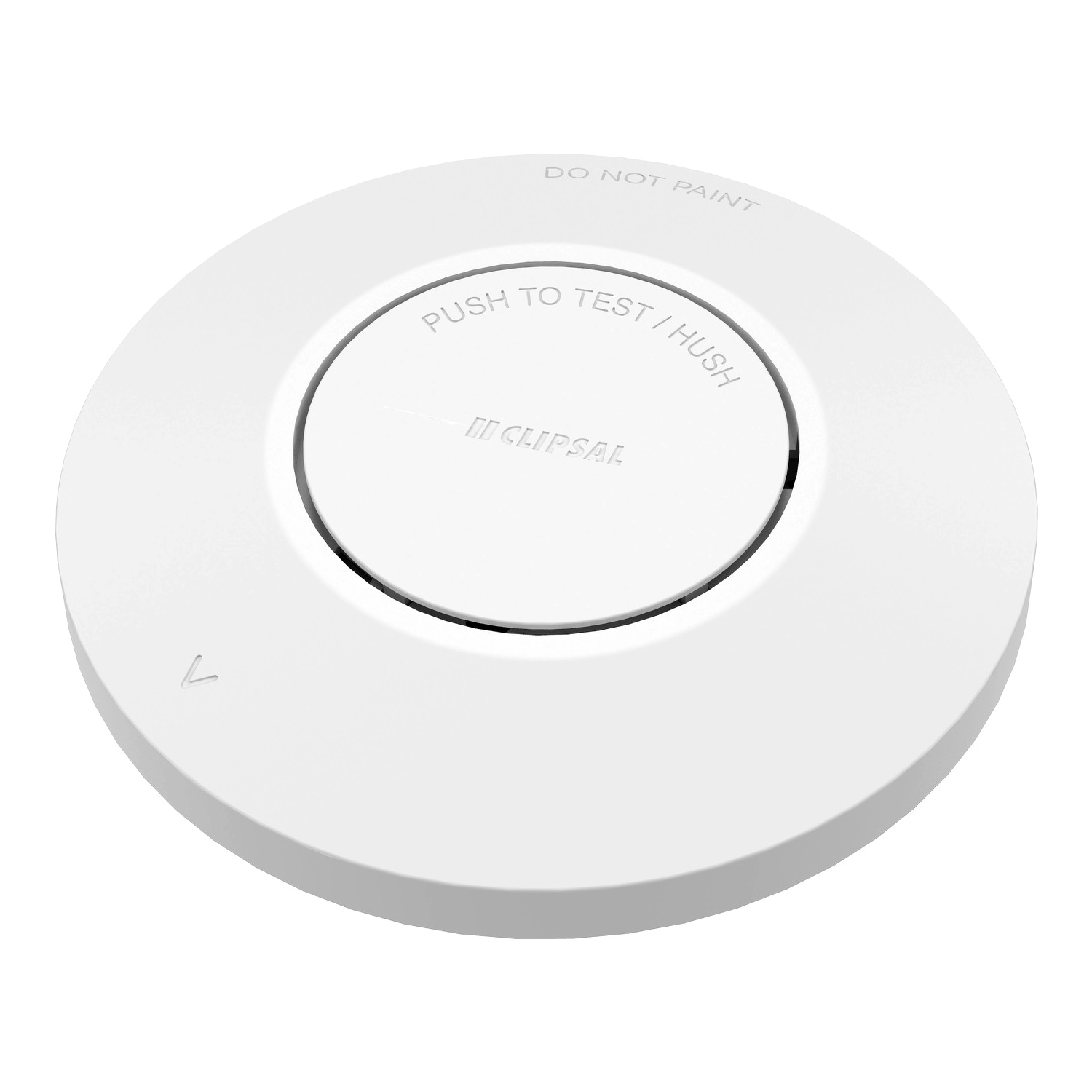

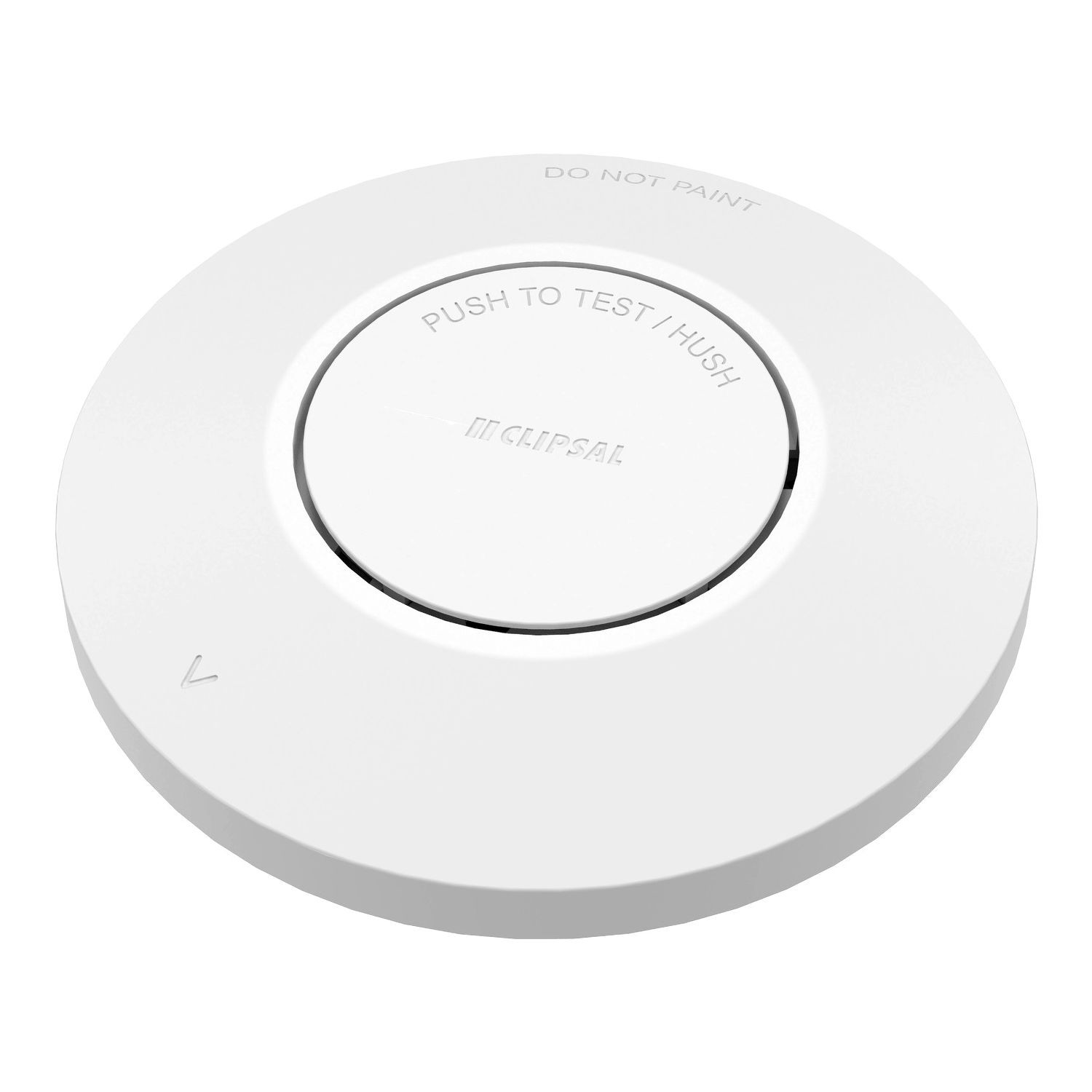

755LPSMA4 photoelectric smoke alarm helps in early detection of smouldering fires. Powered by a 10-year sealed-in lithium battery means no more replacing backup batteries annually. It can be interconnected with 755RFB2 to create a complete system with 240V alarms. New stylish low profile design blends into any décor.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | early detection of smouldering fires and open fires |
| Electronic sensor type | photo-electric sensor |
| Range | Fire Tek |
| Product or component type | smoke detector |
| Product brand | Clipsal |
| Complementary | |
| Depth | 37.5 mm |
| [Ie] rated operational current | 70 mA |
| Material | thermoplastic |
| Response time | < 30 s |
| Battery life | 10 year(s) |
| Operating distance | 140 m in free field, 50 m line of sight |
| Noise level | 85 dB at 3 m, minimum |
| Function available | local alarm |
| Number of devices | 40 for wireless alarm |
| Type of installation | indoor |
| Battery type | lithium 3 V |
| Supply | battery |
| Local signalling | sound: alarm, sound: signal, visual: 1 LED (red, green and blue) for wireless function status, visual: 1 LED (red) for low battery indication |
| Time delay range | 10 h (do not disturb), 10 min (hush) |
| Transmission frequency | 433420 kHz |
| Fixing mode | by screws |
| Detection type | heat |
| Mounting support | wall, ceiling |
| Device mounting | surface |
| Diameter | 130 mm |
| Control type | button (test/hush function) |
| Environment | |
| Ambient air temperature for storage | -20-60 °C |
| Relative humidity | 5-95 % |
| IP degree of protection | IP20 |
| Product certifications | Activfire, SAI, RCM |
| Standards | AS 3786:2014, ISO 8201 |
| Ambient air temperature for operation | 0-45 °C |
