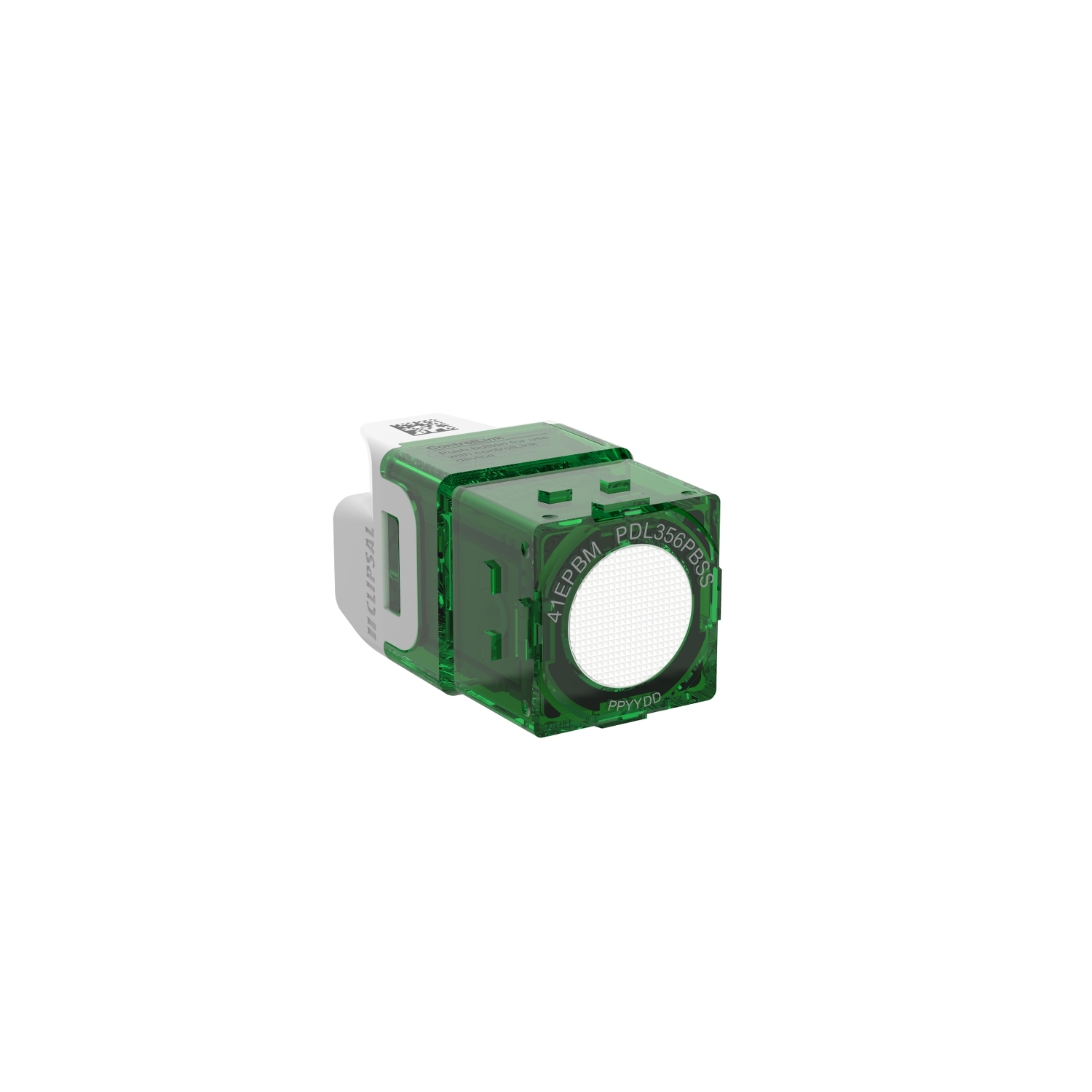

The Clipsal Iconic Momentary Pushbutton uses regular wiring to deliver multi-device control of dimming and switching for any ControlLink-compatible mechanism. This 2-wire momentary pushbutton provides control of lighting levels without a load.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device presentation | mechanism |
| Range | Clipsal Iconic |
| Product or component type | timer |
| Complementary | |
| Depth | 40 mm |
| Width | 22 mm |
| Wiring configuration | 2-wire |
| Material | PC MAS056 (UL94 V-2): bottom, PC (UL94 V-2): top |
| Sale per indivisible quantity | 1 |
| Control signal type | ControlLink |
| Type of packing | box |
| Remote control type | Wiser room application |
| Operating distance | 30 m |
| Surface finish | matt |
| Fixing mode | clip-in |
| Range compatibility | Clipsal Iconic cover plate |
| Device mounting | flush |
| Embedding depth | 38 mm |
| Colour tint | vivid white |
| Standards | AS/NZS 60669.2.1 |

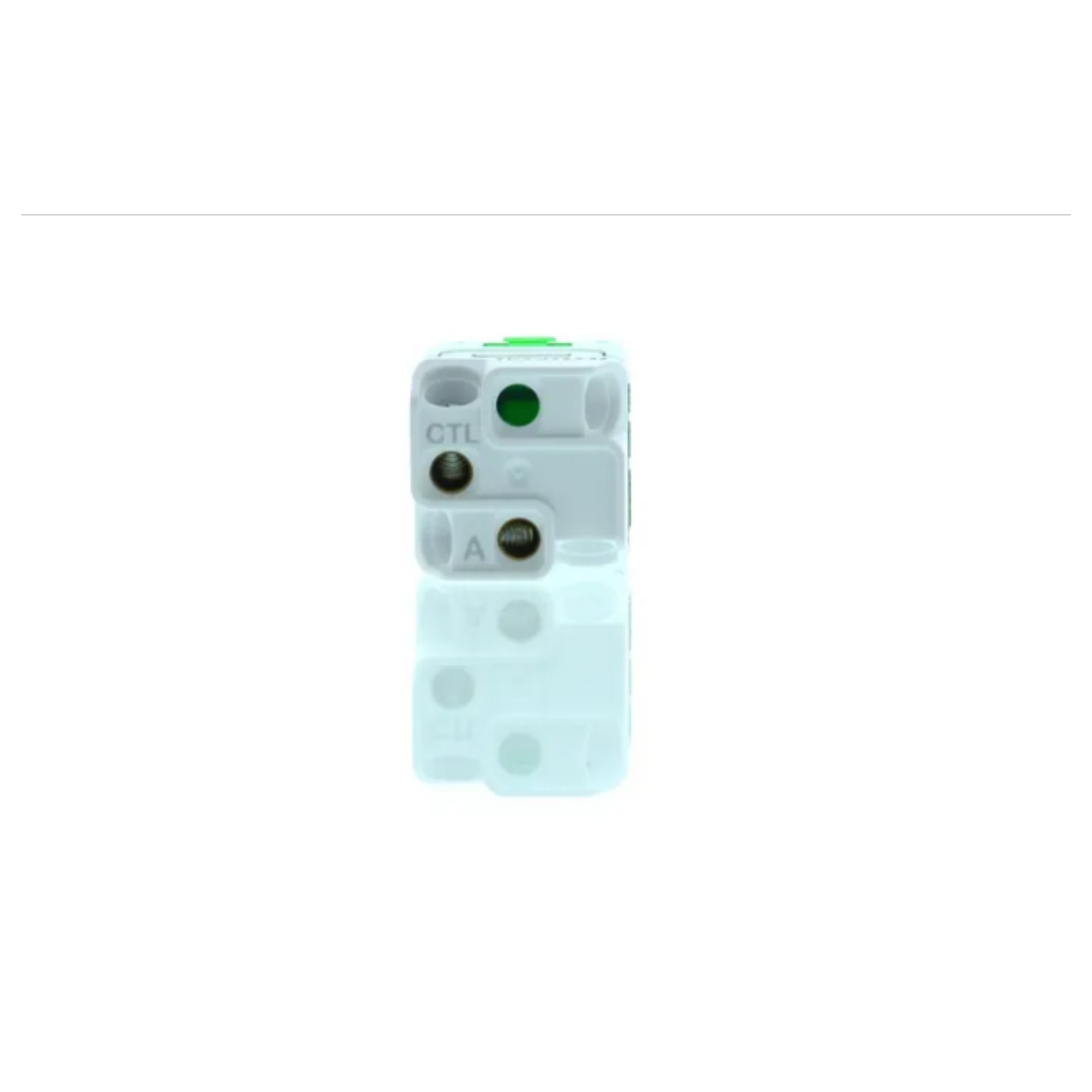

| Number of terminals | 2 |
| Actuator | push-button |
| Height | 22 mm |
| [Ue] rated operational voltage | 220...240 V AC 50 Hz |
| Connections - terminals | screw terminals |
| Environment | |
| Ambient air temperature for storage | 0-60 °C |
| Relative humidity | 0-90 % |
| Ambient air temperature for operation | 0-45 °C |
