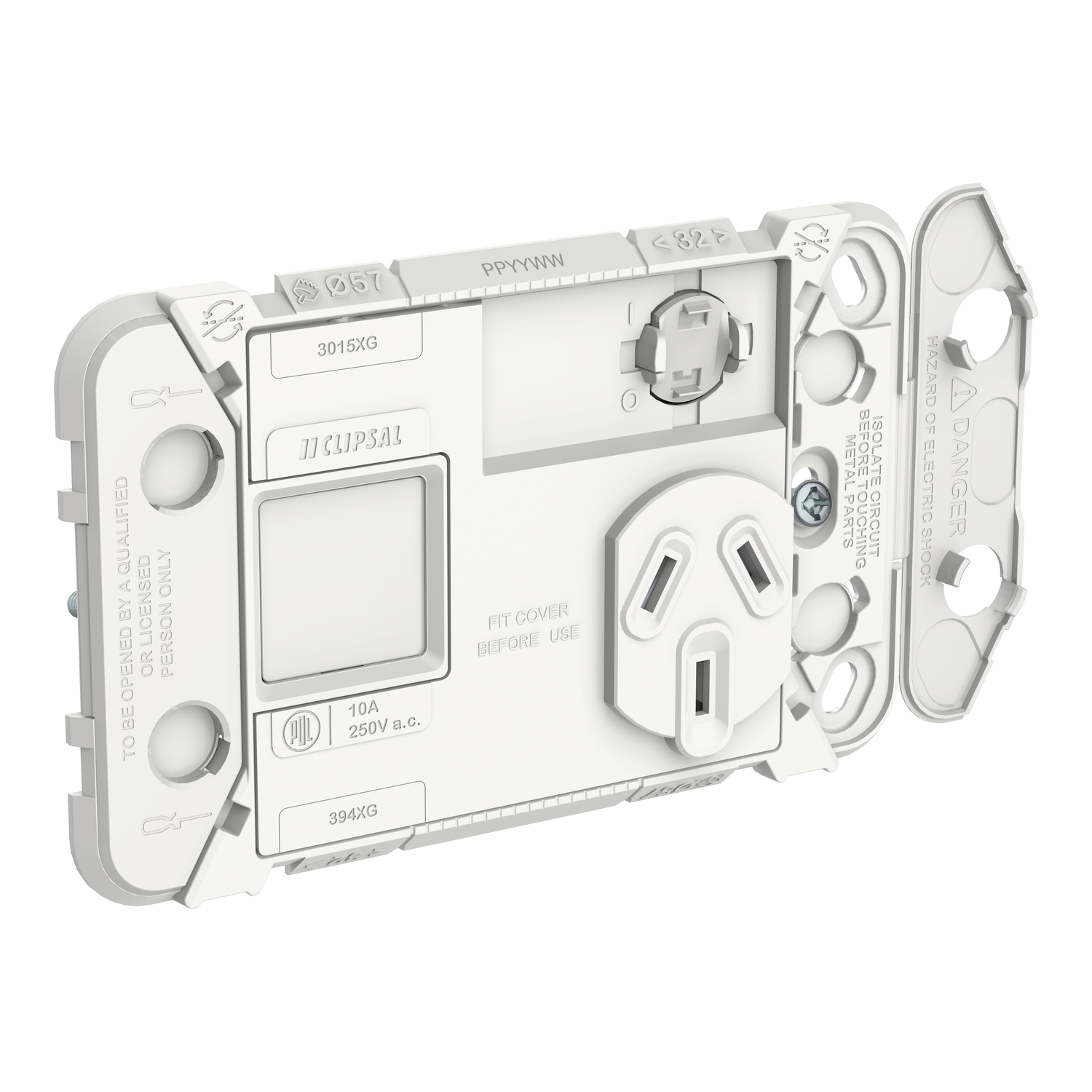

This is the grid you need when you want to install a Clipsal Iconic Horizontal Single Switched Power Point, with an extra switch provision for lights or heating operation. Rated at 10A, 250V this grid offers safety when the home owner wants to change the outlet skin and update their look.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Outlet poles configuration | 2P + E with shutter |
| Device presentation | mechanism with fixing frame |
| Outlet standard | Australian |
| Range | Clipsal Iconic |
| Product or component type | switched socket |
| Complementary | |
| Number of power socket outlets | 1 |
| Quantity per set | set of 10 |
| Sale per indivisible quantity | 1 |
| Wire stripping length | 16 mm |
| Height | 71 mm |
| Connections - terminals | 3 screw terminals |
| Electrical durability | 12000 cycles |
| Number of rocker | 1 |
| Material | POM (polyoxymethylene): locking bar, POM (polyoxymethylene): shutter, PP (polypropylene): rocker, PC (polycarbonate): fixing frame |
| Net weight | 0.082 kg |
| Type of packing | polybag |
| Clamping connection capacity | 1 x 2.5...4 x 2.5 mm² for flexible cable(s), 1 x 2.5...4 x 2.5 mm² for stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid cable(s) |
| Range compatibility | Clipsal Iconic cover frame |
| Number of gangs | 1 gang |
| Device mounting | flush |
| Embedding depth | 24 mm |
| Ground lug position | straight 180° position |
| Surface finish | matt |
| Screwdriver shape | square drive no 1 (SQ1), Philips No 2 |
| Depth | 31 mm |
| Width | 115 mm |
| Installation direction | horizontal |
| Outlet standard description | with earthing contact |
| Outlet standard deviation | Australian/New Zealand |
| Rated current | 10 A at 250 V AC 50 Hz |
| Fixing mode | by screw |
| Colour tint | ash grey |
| Environment | |
| Relative humidity | 10-95 % |
| Product certifications | RCM |
| Ambient air temperature for operation | 0-45 °C |
| Standards | AS/NZS 3112 |
