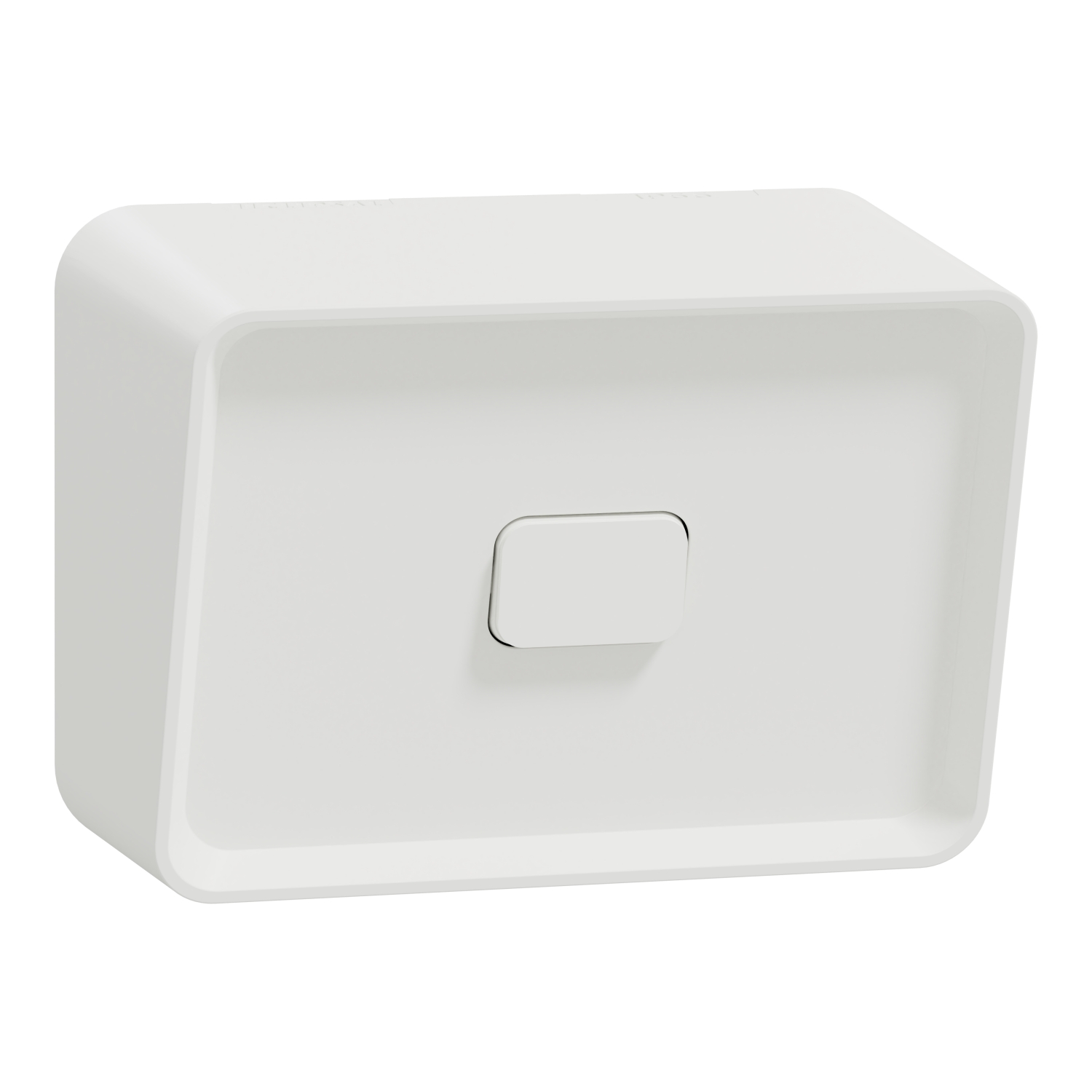

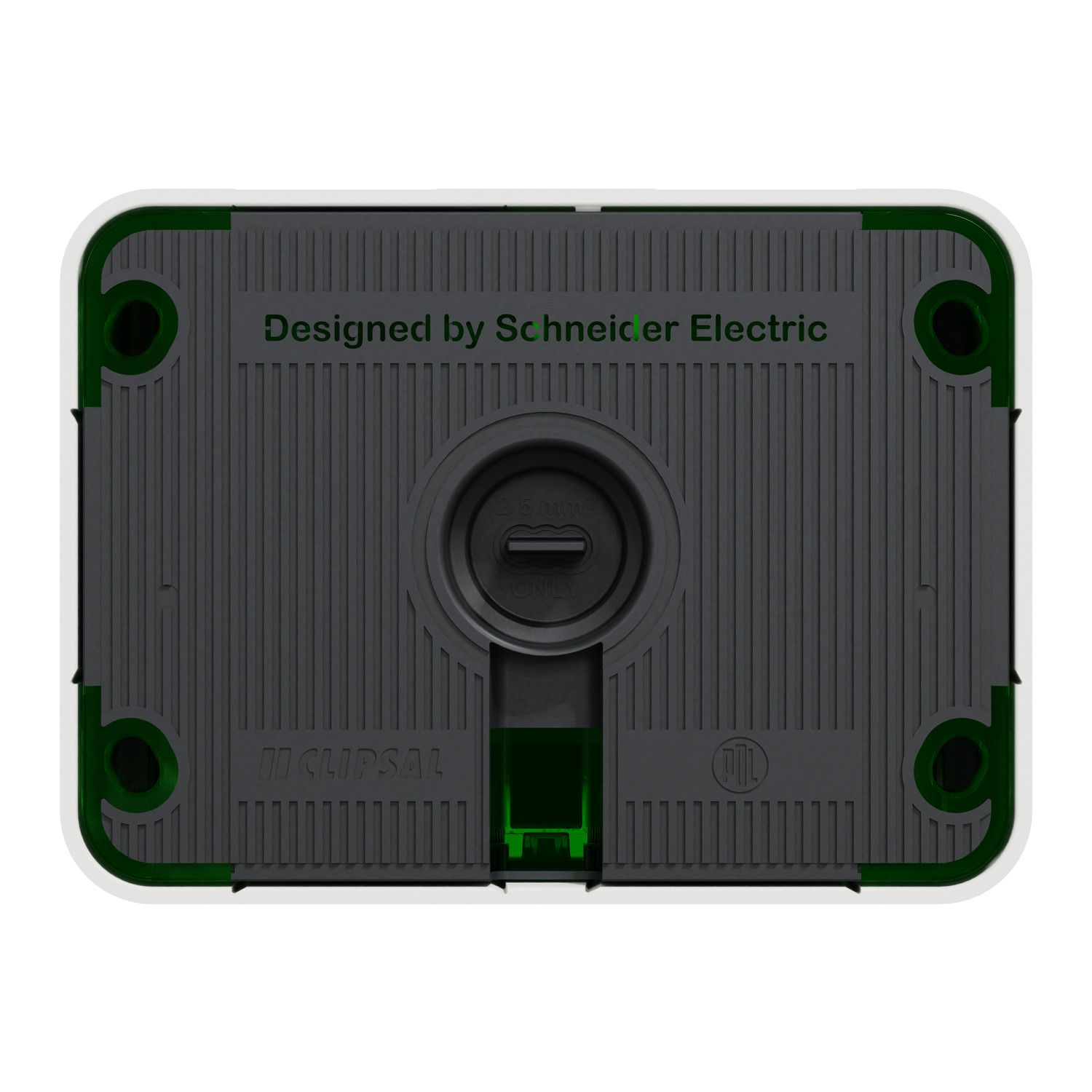

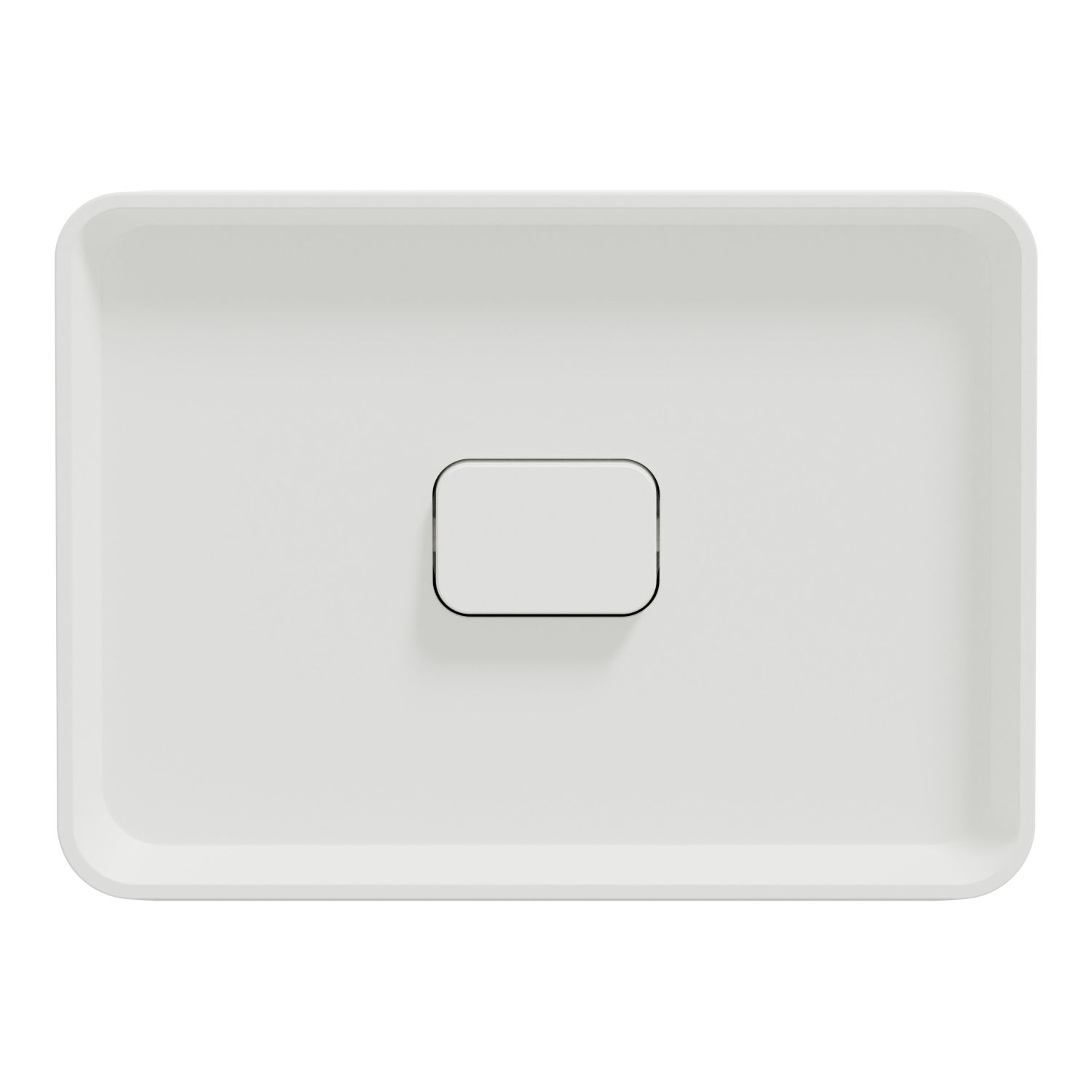

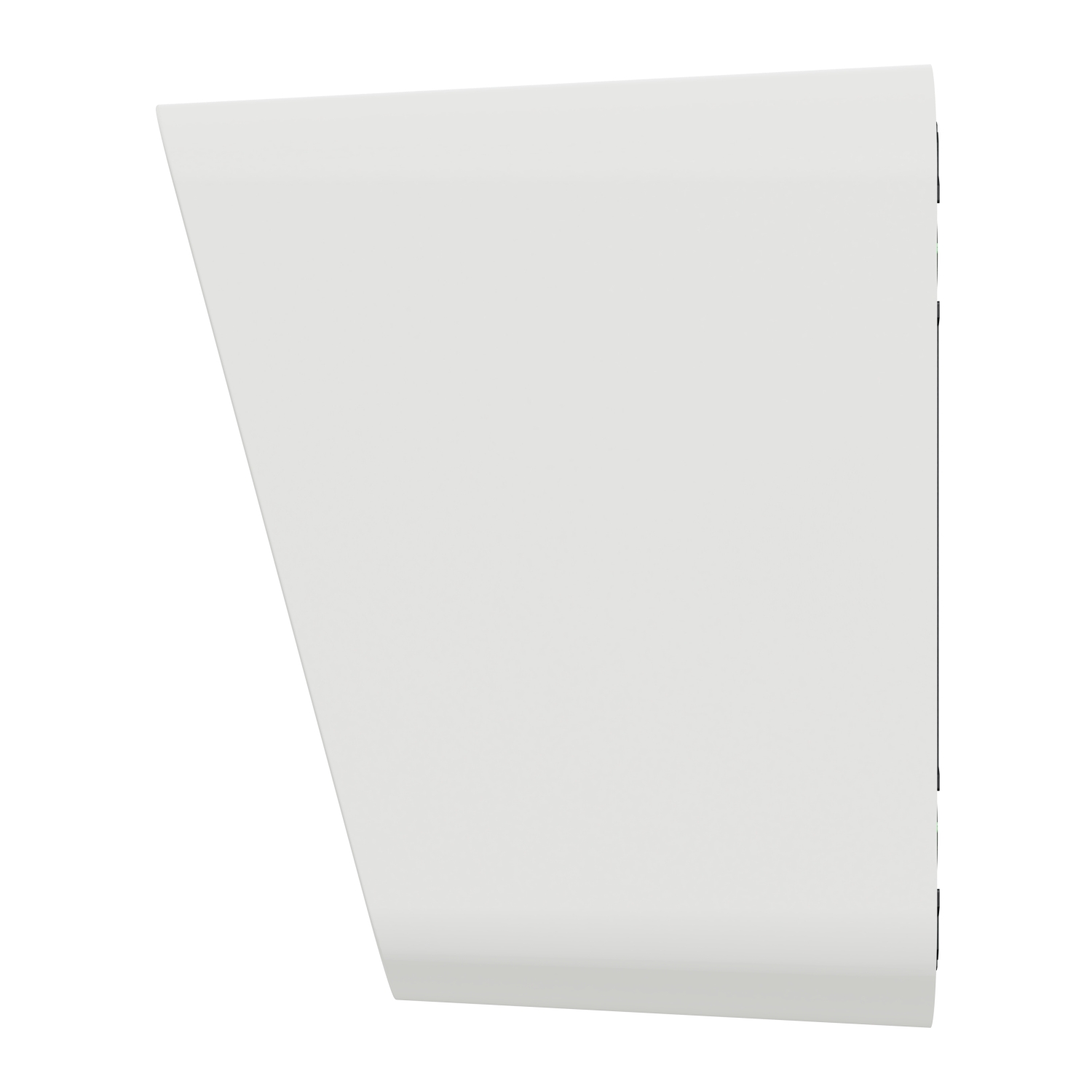

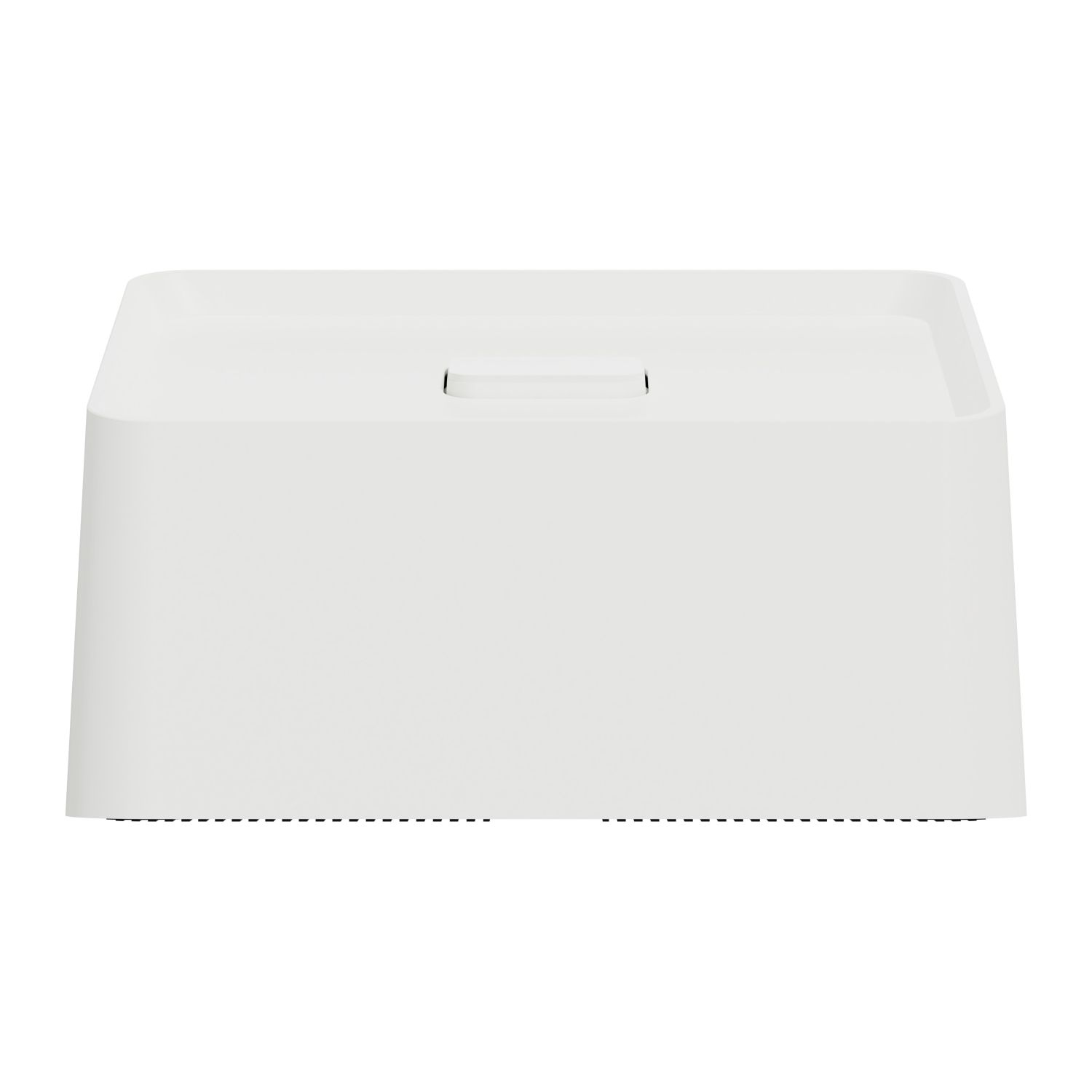

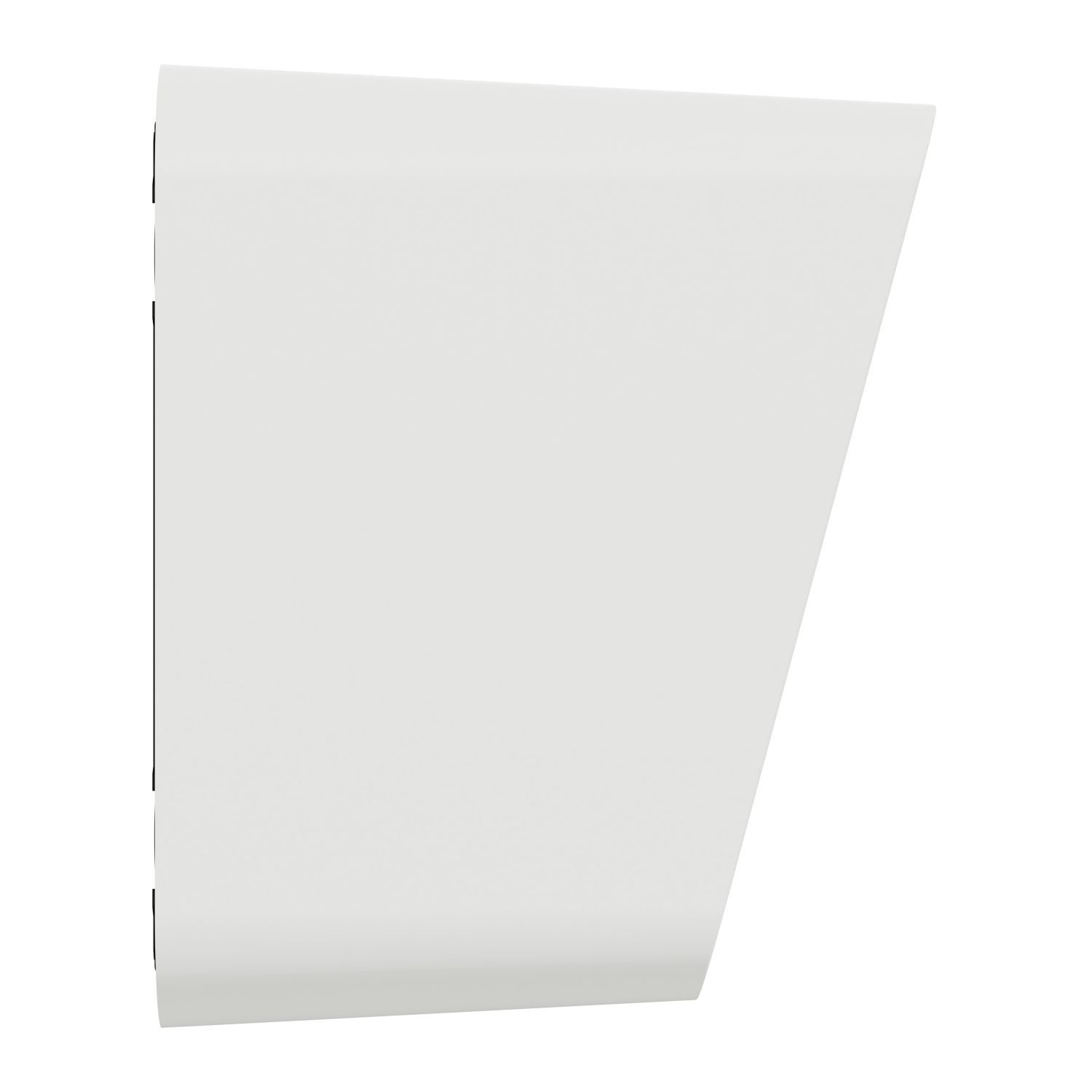

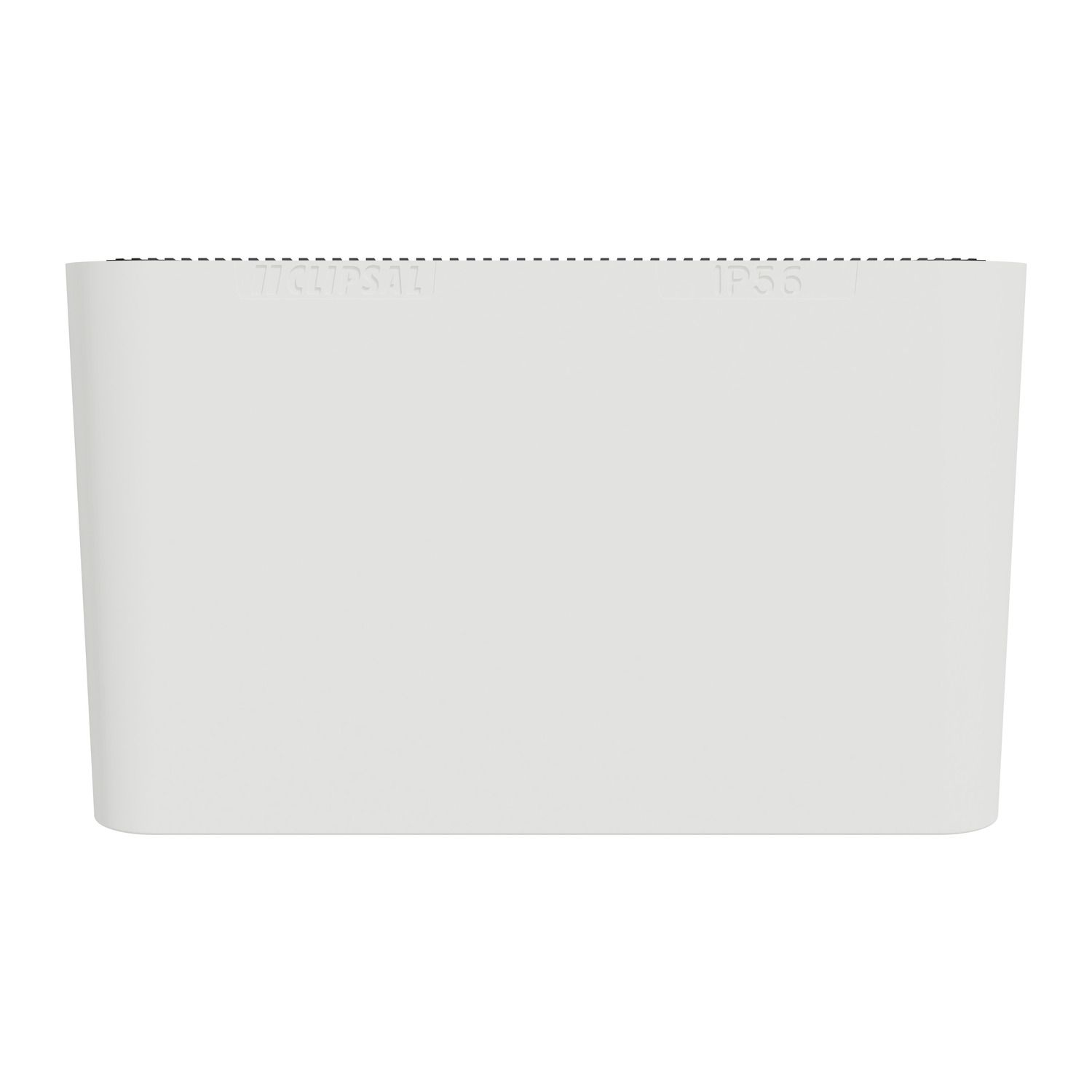

Designed for durability and performance, the Clipsal Weathershield Switch is the perfect solution for outdoor and industrial environments where reliability and protection are essential. Single-Pole Configuration Simplifies installation while maintaining effective control over connected appliances. The rated current is 20A/16AX and the rated operational voltage is 230/240VAC. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. Screws are available for installation. This device allows for surface mounting. The dimensions are (W) 115.5mm x (H) 85mm x (D) 70mm. The product is white and has a matt surface finish. It is made of PC (polycarbonate), which is resistant to wear and tear. It has an IP56 rating for dust and water resistance. Compliance with international standards including AS 60529, AS/NZS 60947-3, IEC 60669-1.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | lighting |
| Plug, socket category | low voltage |
| Colour | white (XW) |
| Device presentation | complete product |
| Range | Iconic |
| Product or component type | switch |
| Outlet standard deviation | Australian |
| Range of product | Iconic |
| Product brand | Clipsal |
| Complementary | |
| Main colour tint | white |
| Number of poles | 1 |
| [Ue] rated operational voltage | 230/240 V, 250 V AC 50 Hz |
| Depth | 70 mm |
| Number of rocker | 1 |
| Market segment | residential |
| Width | 115.5 mm |
| Mounting position | horizontal |
| Protection type | without protection |
| Switch function | 1-pole 1/2-way |
| Material | POM (polyoxymethylene), ABS (acrylonitrile butadiene-styrene), TPE (thermoplastic elastomer), PC (polycarbonate) |
| Local signalling | without |
| Installation direction | horizontal |
| Wire stripping length | 10 mm |
| Connections - terminals | 2 x 2.5-2.5 mm², screw terminals 4 x 1.5-1.5 mm² |
| Net weight | 0.19 kg |
| Clamping connection capacity | 3 x 2.5 mm², 4 x 1.5 mm² |
| Marking | without marking |
| Surface treatment | untreated |
| Surface finish | matt |
| Fixing mode | by clipping locks, by screws |
| Rated current | 16 AX at 230/240 V AC, 20 A at 230/240 V AC |
| Mounting support | wall |
| Number of gangs | 1 gang |
| Device mounting | surface |
| Actuator | rocker |
| Height | 85 mm |
| Targeted country | Australia |
| Screwdriver shape | Philips No 2, square drive no 1 (SQ1) |
| Environment | |
| Electrical durability | 12000 cycles |
| Ambient air temperature for storage | 0-60 °C |
| Relative humidity | 10-95 % |
| IP degree of protection | IP56 |
| Standards | AS/NZS 3133 |
| Ambient air temperature for operation | 0-45 °C |
