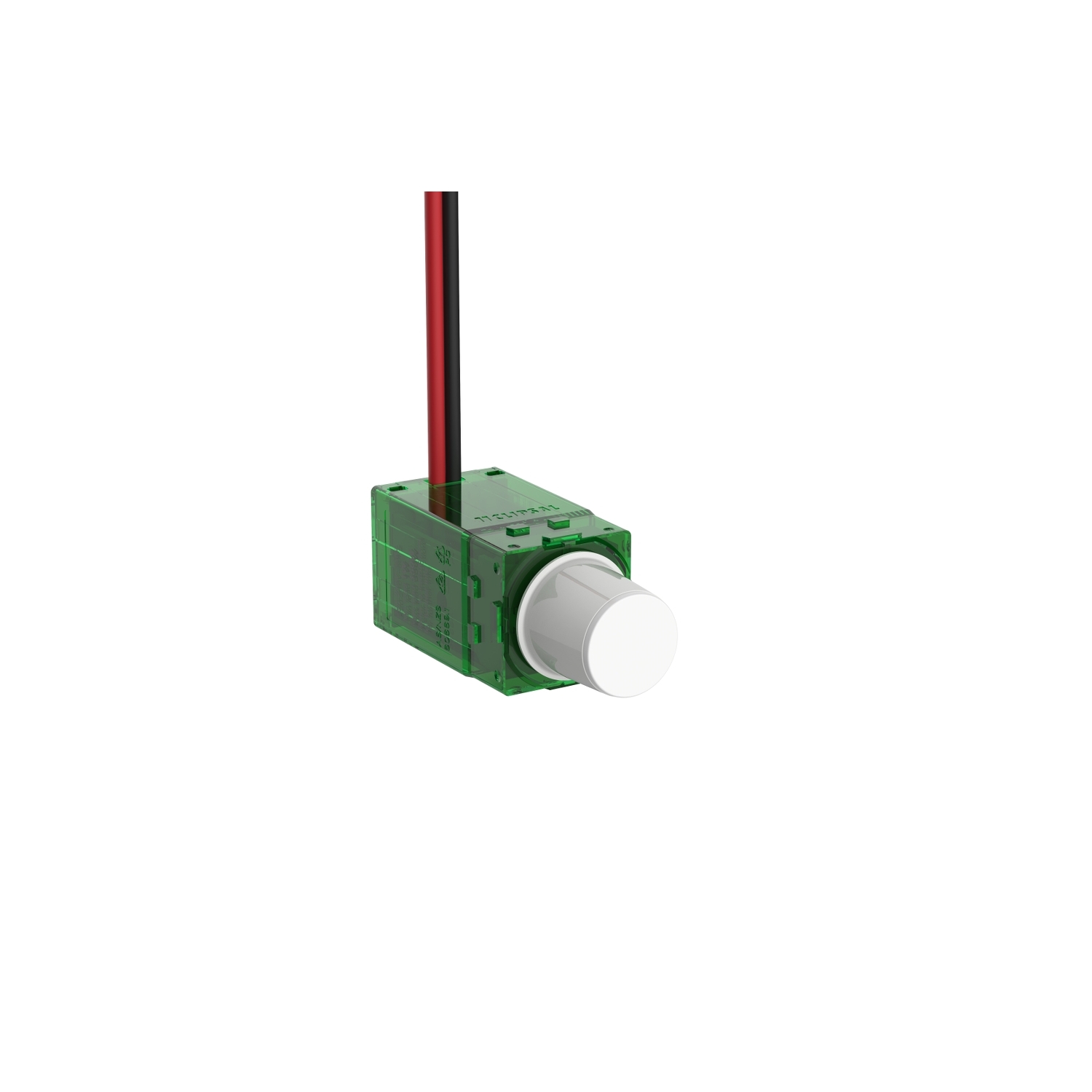

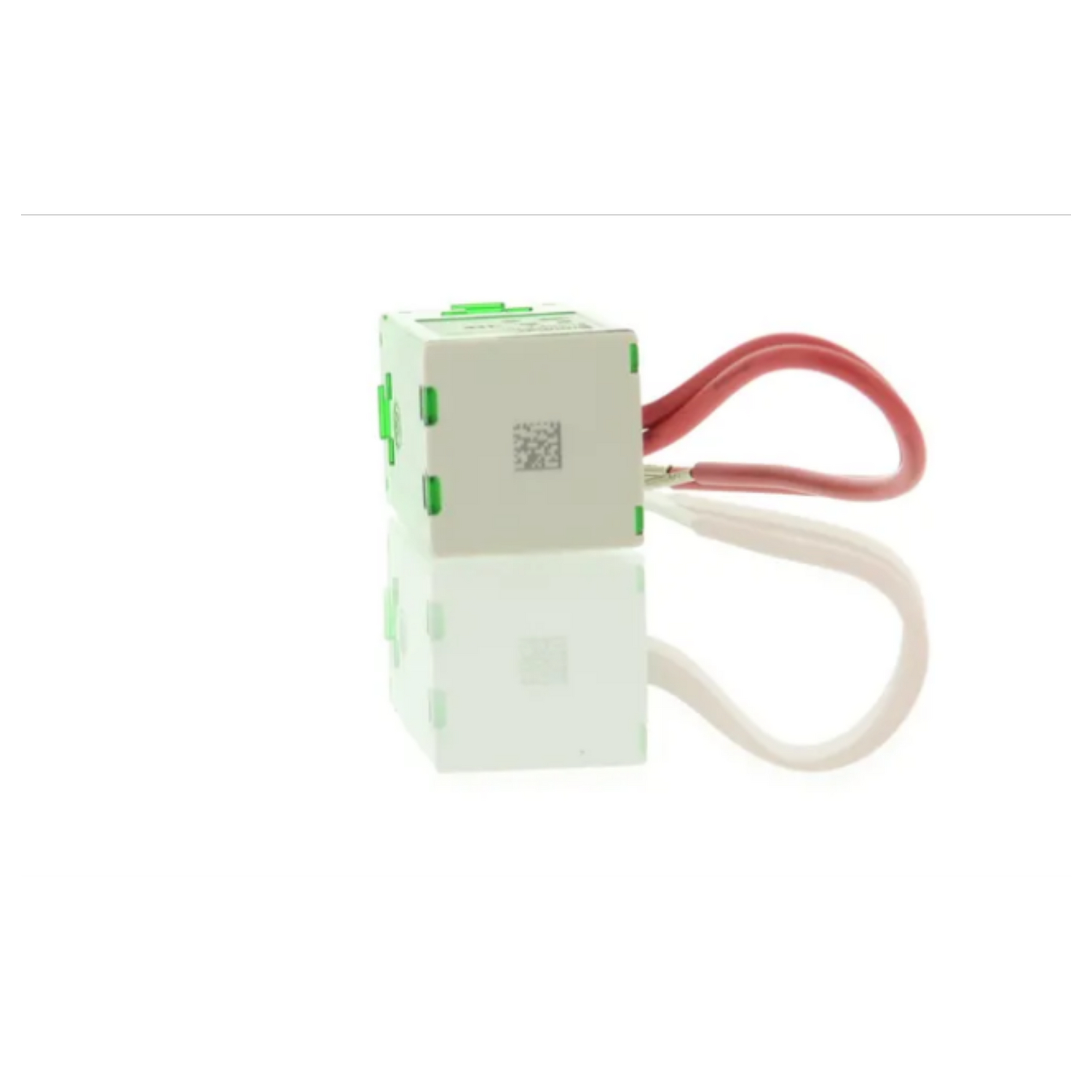

A Clipsal Iconic Universal Dimmer mechanism makes it easier than ever to add the convenience of a led dimmer switch to your lighting controls. This light switch has a rotary cap and an adjustable minimum brightness level.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Load type | dimmable fluorescent - 150 W - 240 V AC, low voltage halogen lamp with iron core transformer - 350 W - 240 V AC, dimmable fluocompact lamp - 150 W - 240 V AC, low voltage halogen lamp with electronic transformer - 350 W - 240 V AC, incandescent - 350 W - 240 V AC, dimmable LED - 350 W - 240 V AC |
| Device presentation | mechanism |
| Range | Clipsal Iconic |
| Type of packing | box |
| Product or component type | dimmer |
| Dimmer type | universal |
| Complementary | |
| Depth | 39 mm |
| Range compatibility | Clipsal Iconic |
| Width | 22.5 mm |
| [Ue] rated operational voltage | 220...240 V AC 50 Hz 1 W |
| Protection type | short-circuit |
| [Ie] rated operational current | 1.5 A |
| Material | PC MAS056 (UL94 V-2): bottom, PC (UL94 V-2): top |
| Ambient air temperature for storage | 0-60 °C |
| Dimmer control | 315° rotary setting |
| Relative humidity | 0-90 % |
| Function available | brightness adjustment |
| Control type | rotary knob |
| Surface finish | glossy |
| Fixing mode | clip-in |
| Embedding depth | 37 mm |
| Ambient air temperature for operation | 0-45 °C |
| Height | 22.5 mm |
| Connections - terminals | flying leads |
| Environment | |
| Derating factor | 3 devices 150 W with derating factor, 2 devices 250 W with derating factor, 1 devices 350 W without derating |
| Standards | AS/NZS 60669.2.1 |
