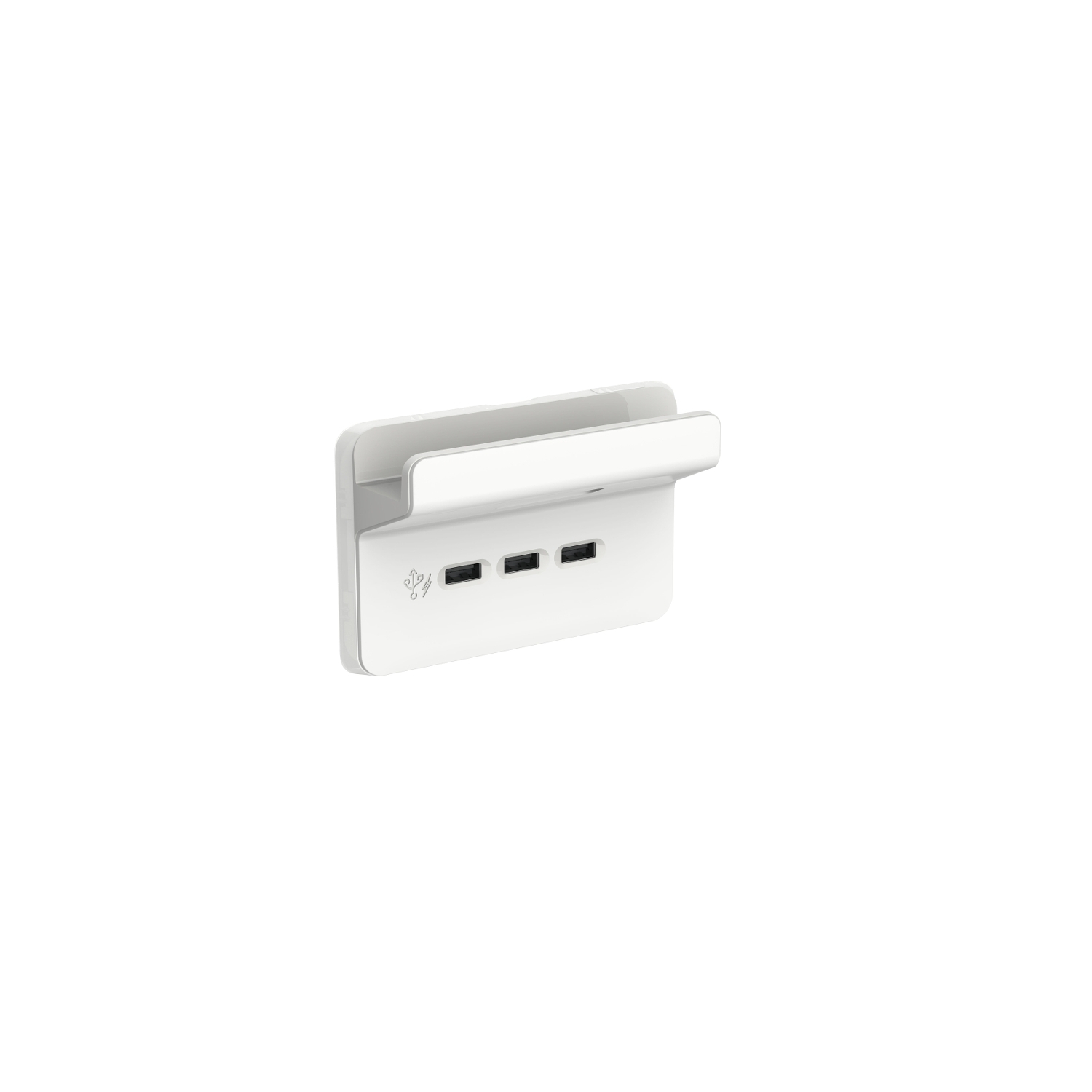

The new Clipsal Iconic Triple USB Charging Mechanism is a charging station for the 3043HS Horizontal USB Shelf. This USB wall outlet makes charging simple and convenient with three charging ports to let you to charge multiple devices at the same time.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | Clipsal Iconic |
| Integrated connection type | 3 USB 2.0 type A 5 V DC, maximum load current: 2.1 A |
| Product or component type | USB charger |
| Output current | 4.5 A |
| [Ue] rated operational voltage | 220/240 V AC 50 Hz |
| Complementary | |
| Number of terminals | 3 screw terminal |
| Protection type | short time short-circuit protection |
| Ambient air temperature for storage | -5-50 °C |
| Relative humidity | 15-95 % |
| Wire stripping length | 16 mm |
| Device presentation | complete product |
| Surface finish | textured, matt |
| Ambient air temperature for operation | 0-40 °C |
| Height | 78 mm |
| Screwdriver shape | Philips No 2, square drive no 1 (SQ1) |
| Depth | 70 mm |
| Width | 70 mm |
| Type of packing | polybag |
| Clamping connection capacity | 4 x 2.5 mm² for rigid cable(s), 4 x 2.5 mm² for flexible cable(s), 4 x 2.5 mm² for stranded cable(s) |
| Fixing mode | by screws |
| Device mounting | flush |
| Embedding depth | 35 mm |
| Colour tint | vivid white (VW) |
| Environment | |
| IP degree of protection | IP21 |
| Electrical insulation class | class II |
| IK degree of protection | IK04 |
| Product certifications | RCM |
