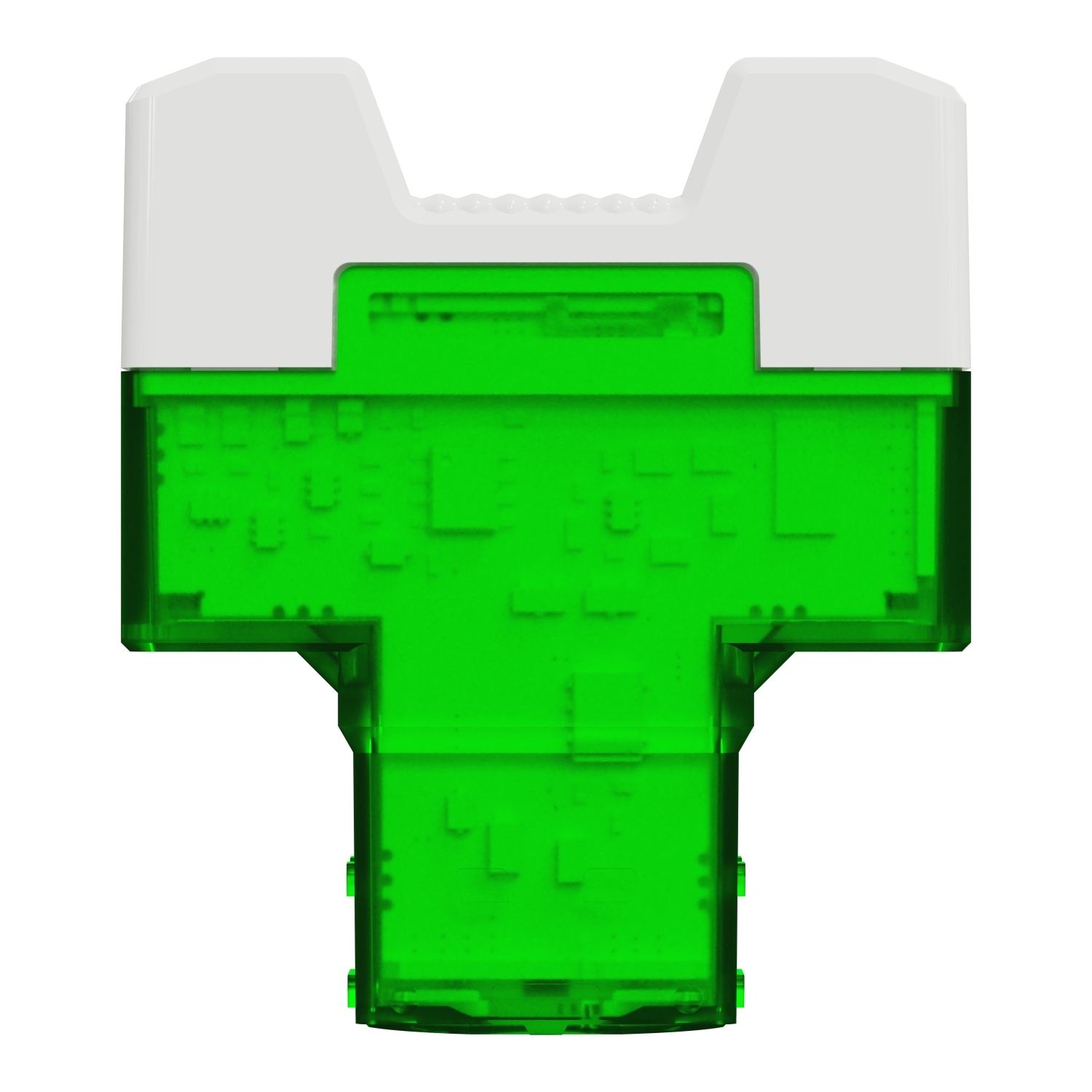

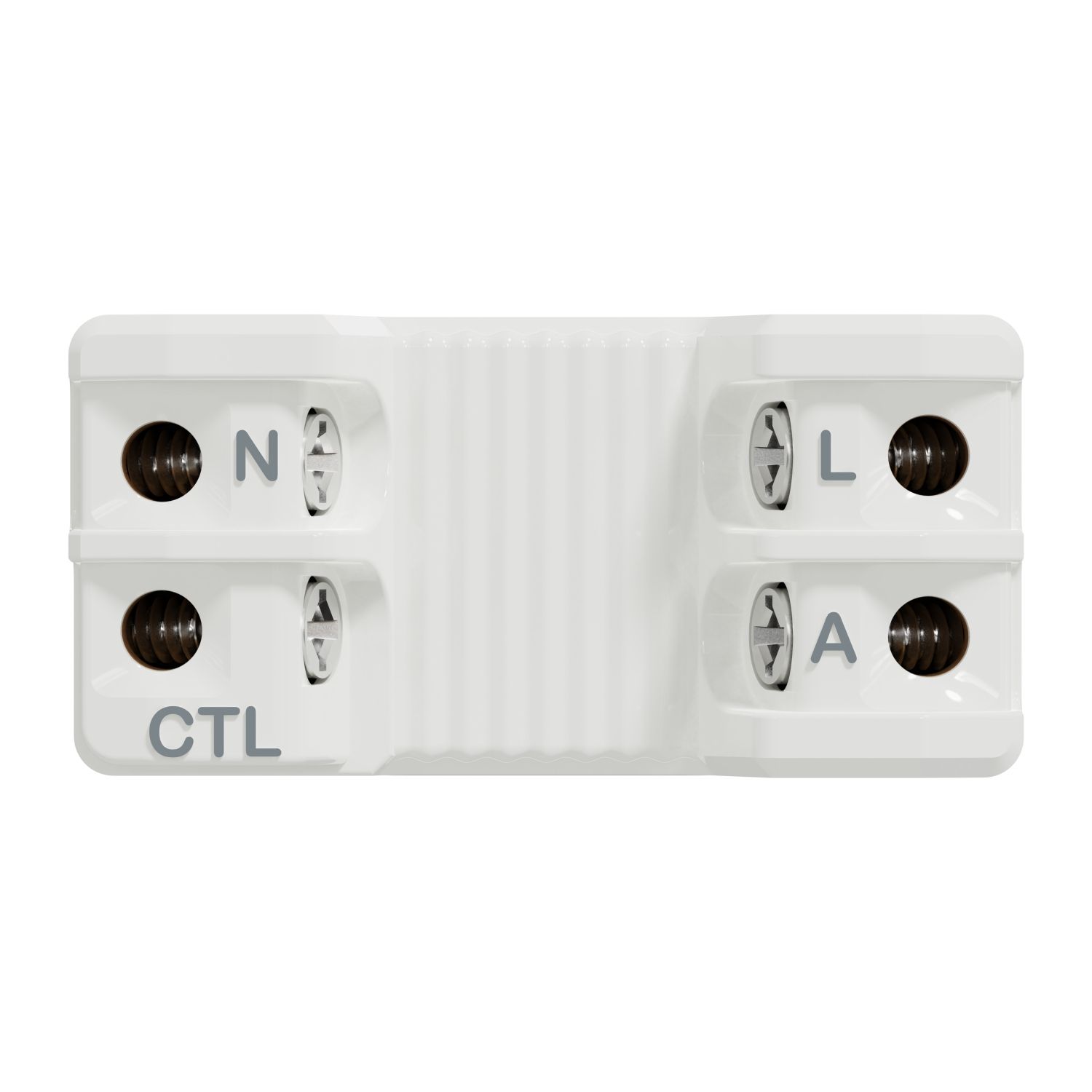

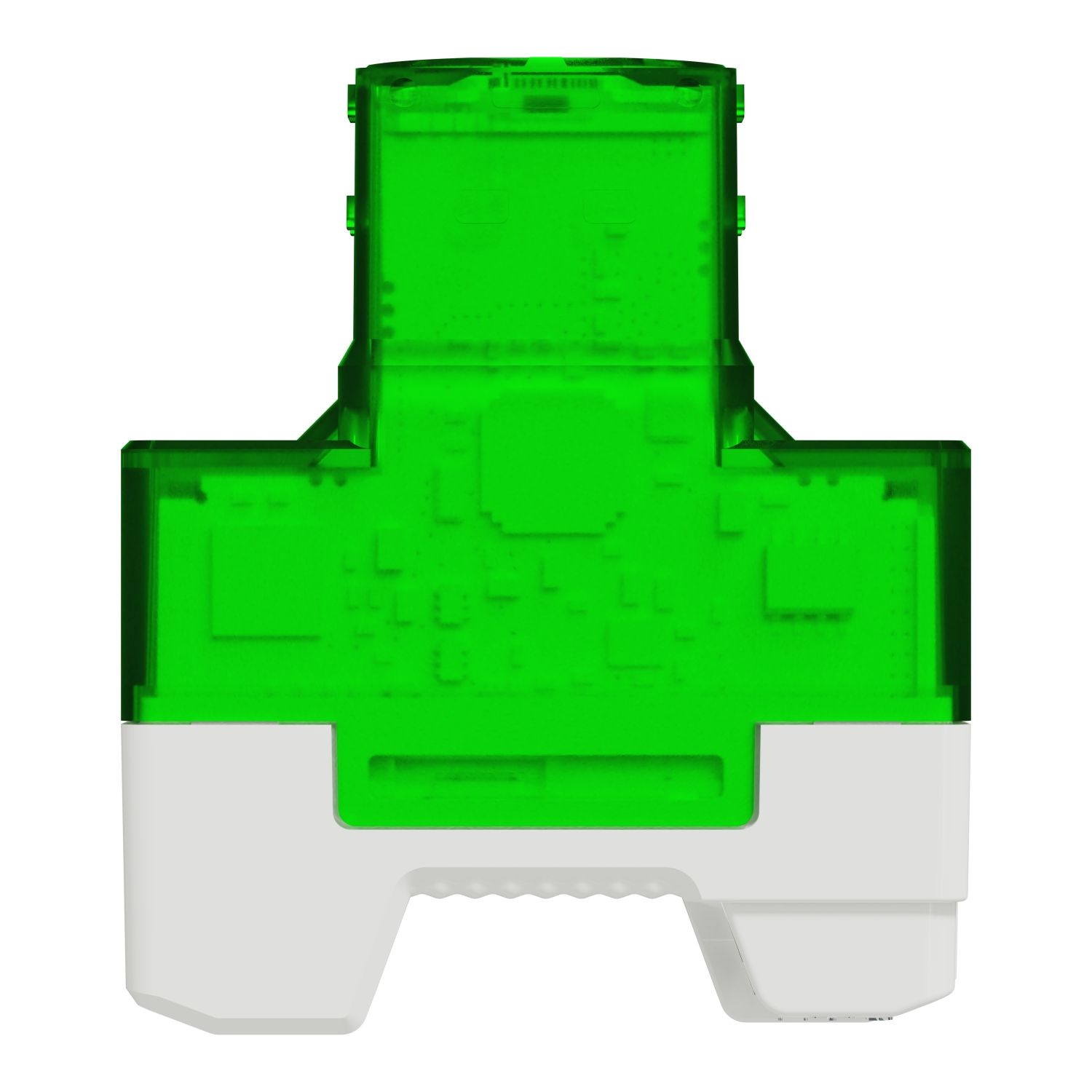

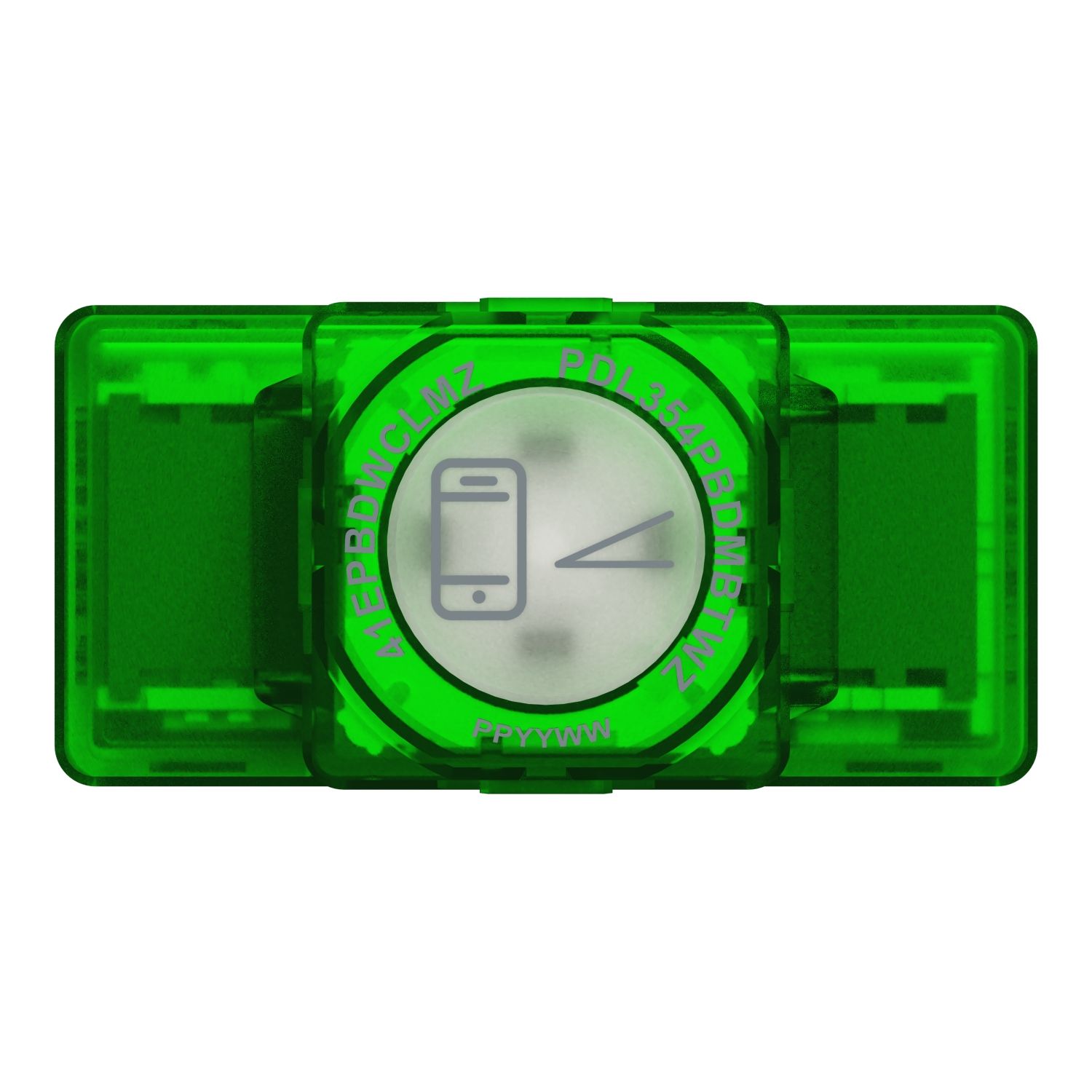

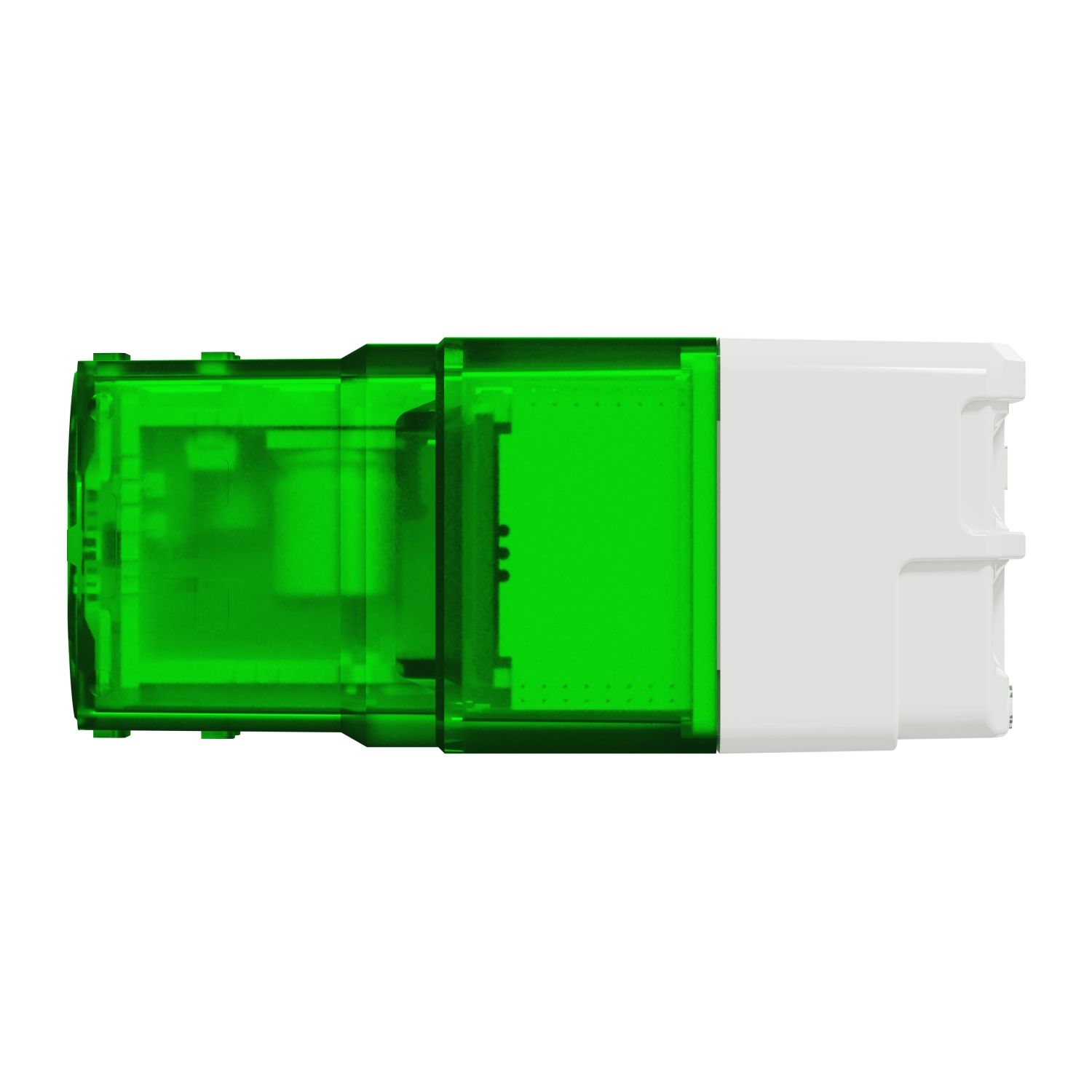

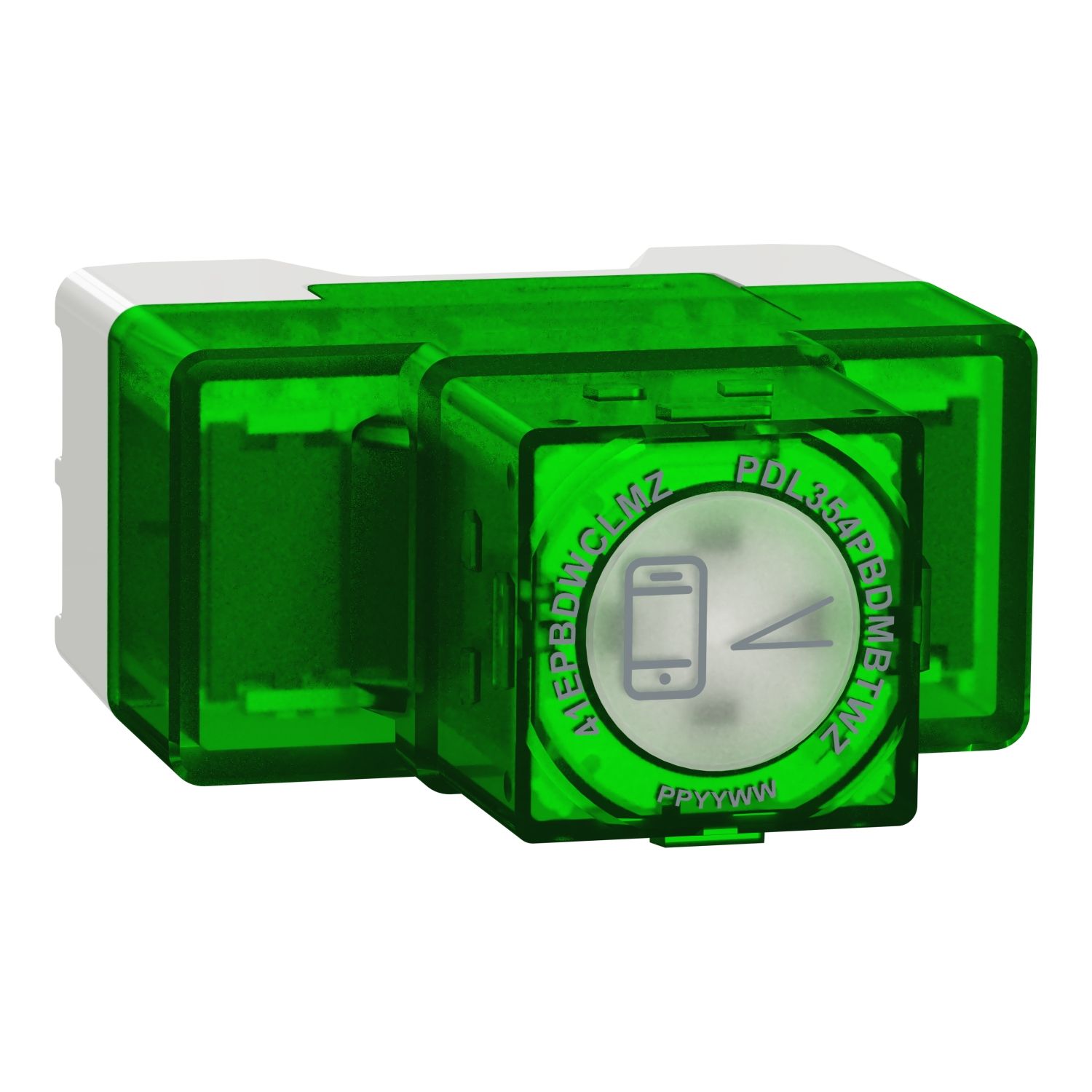

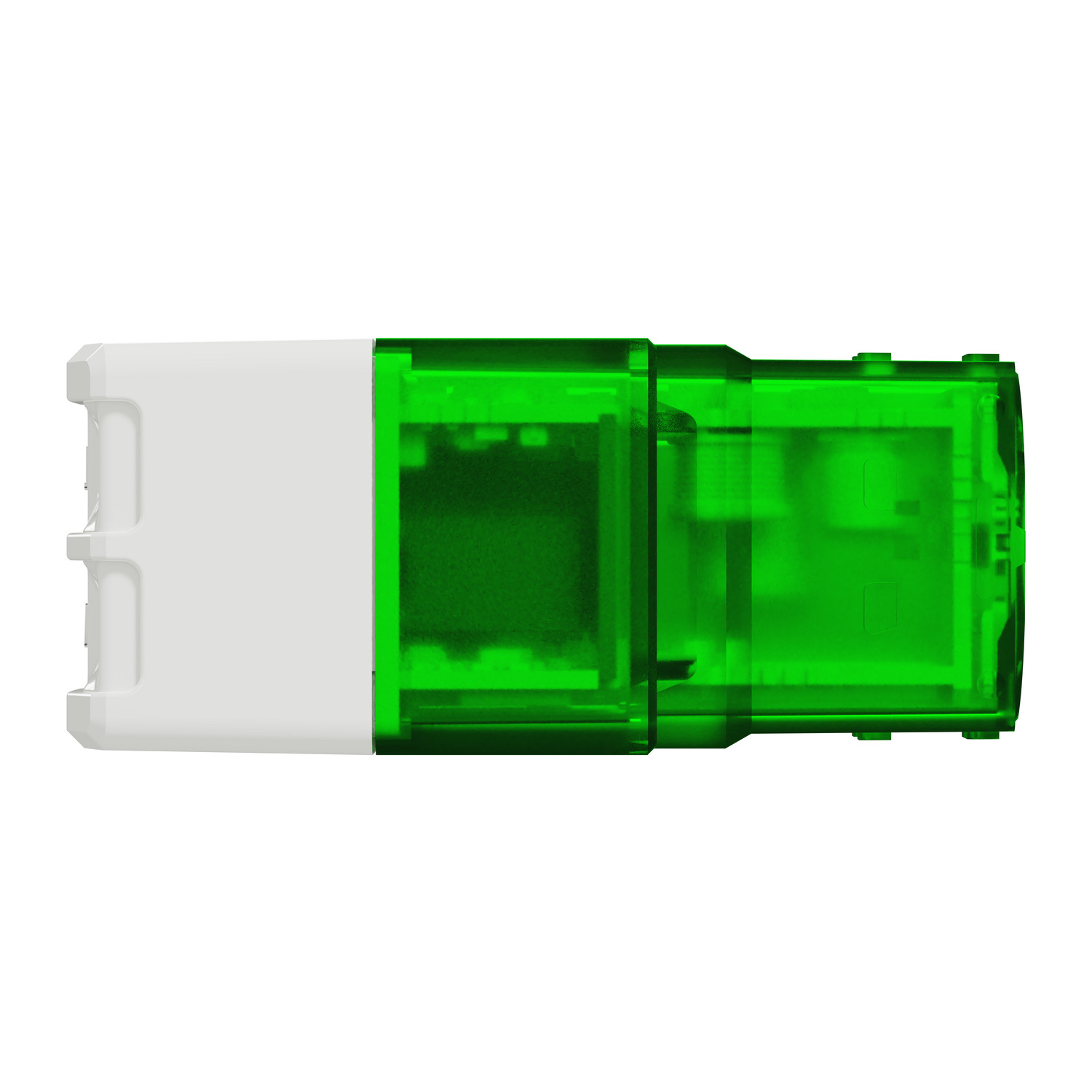

The Iconic Connected Smart Dimmer is suitable for hard-wired multiway dimming. It can be controlled through ControlLink, the push button on the wall, remotely using the Wiser by SE app or voice command. With default Zigbee mode it can connect to the Wiser Hub for full home automation control and functions.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | Iconic |
| Product or component type | connected dimmer |
| Product brand | Clipsal |
| Complementary | |
| Technology type | bluetooth low energy, Zigbee default |
| Memory description | backup memory - program for indefinite period, backup memory - date and time for 6 h |
| Main colour tint | vivid white |
| Maximum number of connected devices | 2 (ControlLink module), 3 (dimmer) |
| Load type | LV halogen lamps: 0...300 W (electronic transformer), halogen lamp: 0...300 W at 240 V, incandescent lamp: 0...300 W at 240 V, compact fluorescent lamp: 0...300 W, dimmable LED: 0...150 W |
| Device application | light control |
| Depth | 56 mm |
| Software name | Wiser by SE App |
| Width | 48 mm |
| Wiring configuration | 3-wire |
| Communication network type | wireless Zigbee (2.4-2.4 GHz), 2.5 mW at < 50 m |
| Concentrator compatibility | Wiser hub generation 1 |
| Protection type | overcurrent protection, short-circuit protection, overheating protection |
| Control type | multi-way control via ControlLink, by mobile application, push-button |
| Material | plastic |
| Number of ways | 5 ways |
| Device presentation | mechanism |
| Type of installation | indoor installation |
| Fixing center | 84 mm |
| Colour tint | vivid white (VW) |
| Dimmer type | universal |
| Local signalling | LED |
| Surface finish | glossy |
| Fixing mode | clip-in |
| Mounting support | grid |
| Device mounting | flush |
| Embedding depth | 53 mm |
| Height | 24 mm |
| [Ue] rated operational voltage | 220...240 V AC 50 Hz |
| Mobile App name | Wiser by SE |
| Cable length | 50 m for ControlLink module |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-90 % non-condensing |
| Standards | AS/NZS 4268 radio, AS/NZS 60669.2.1 EMC, AS/NZS 60669.2.1 safety |
