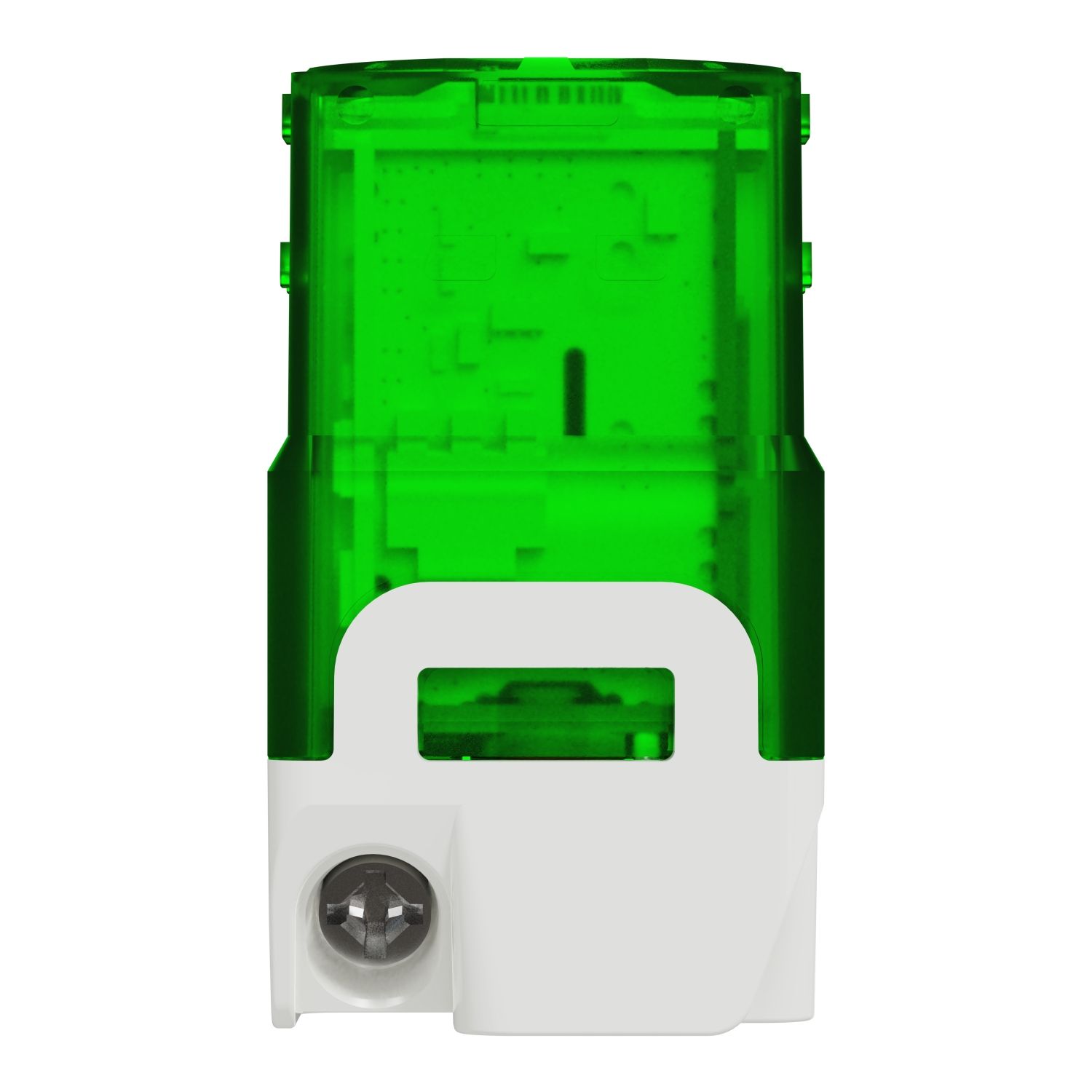

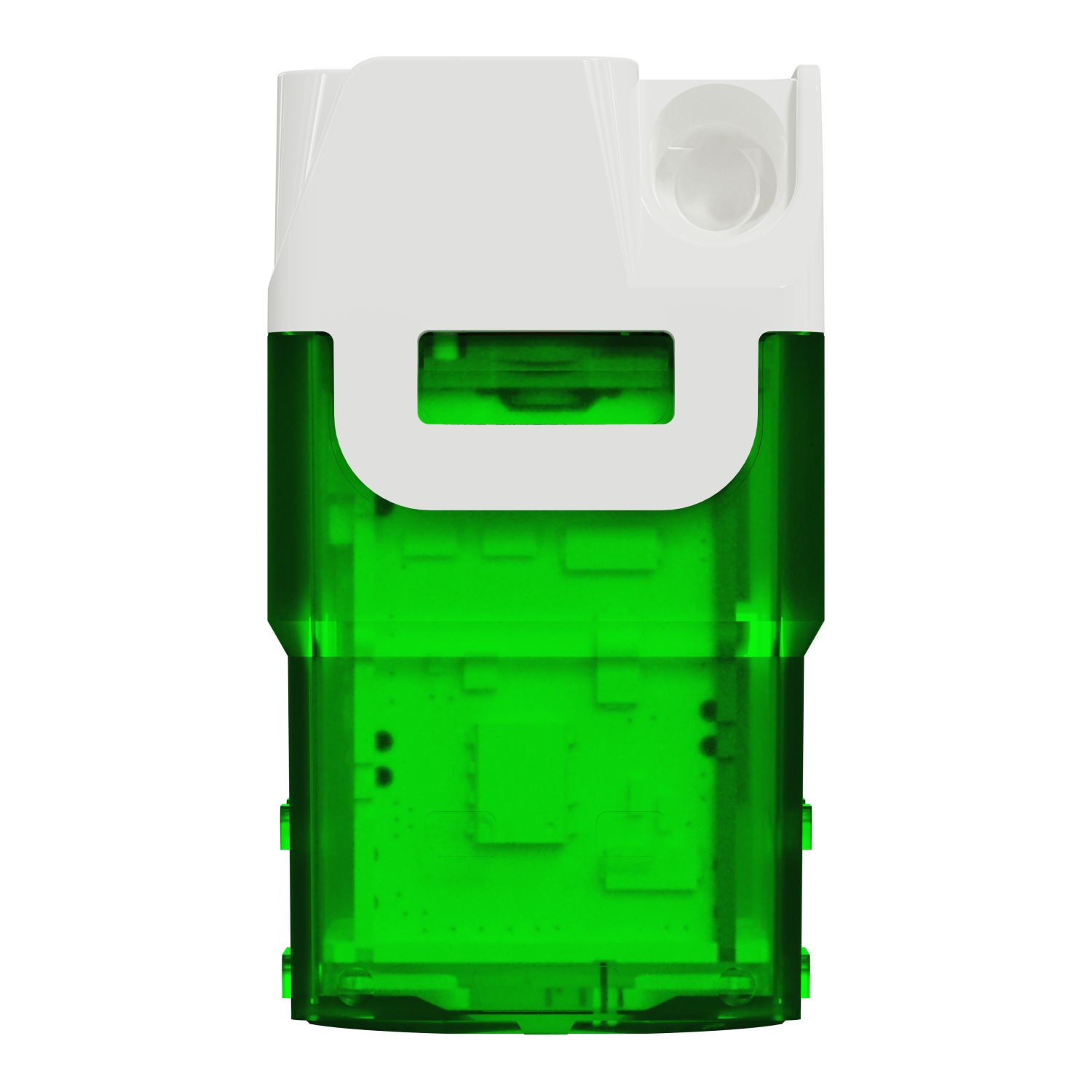

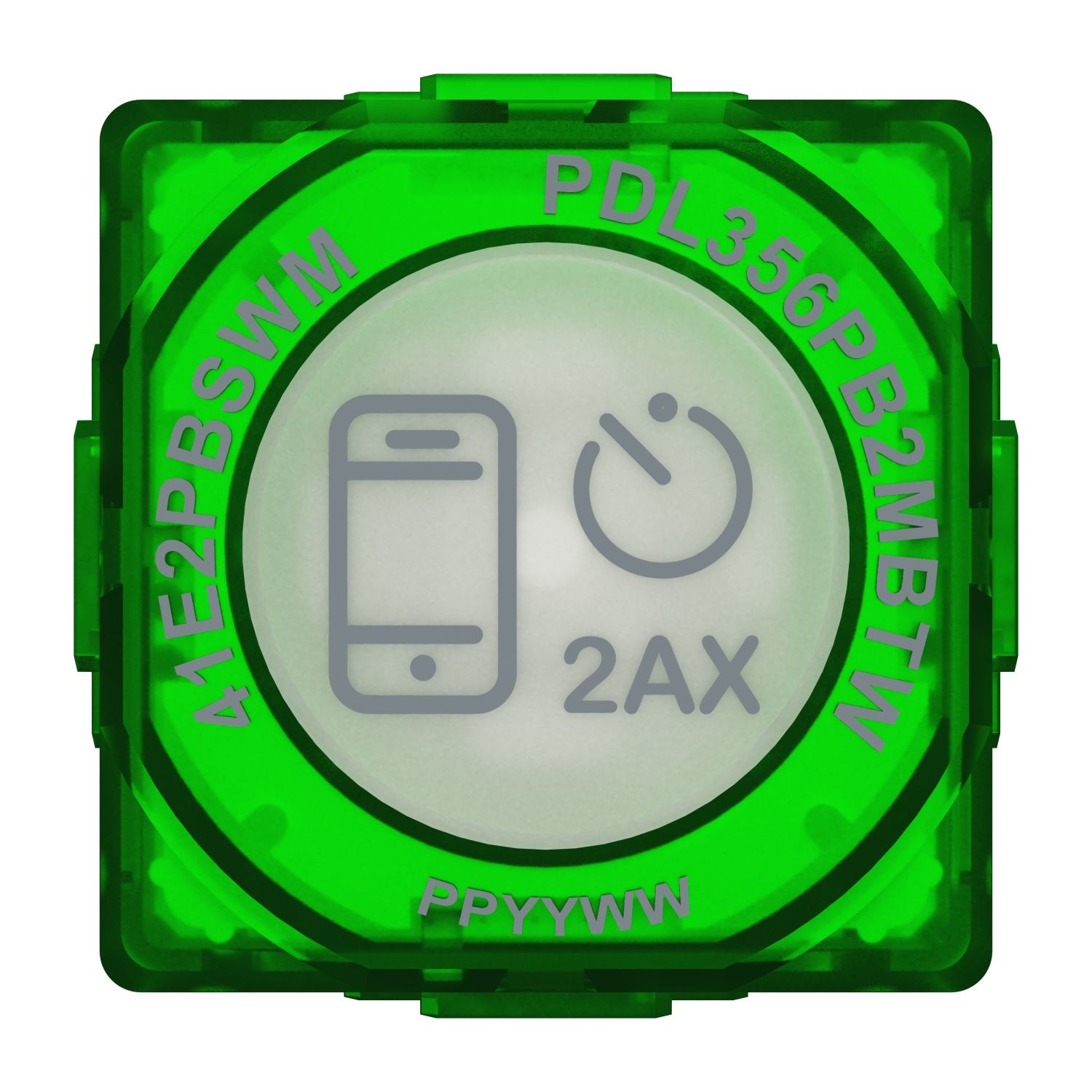

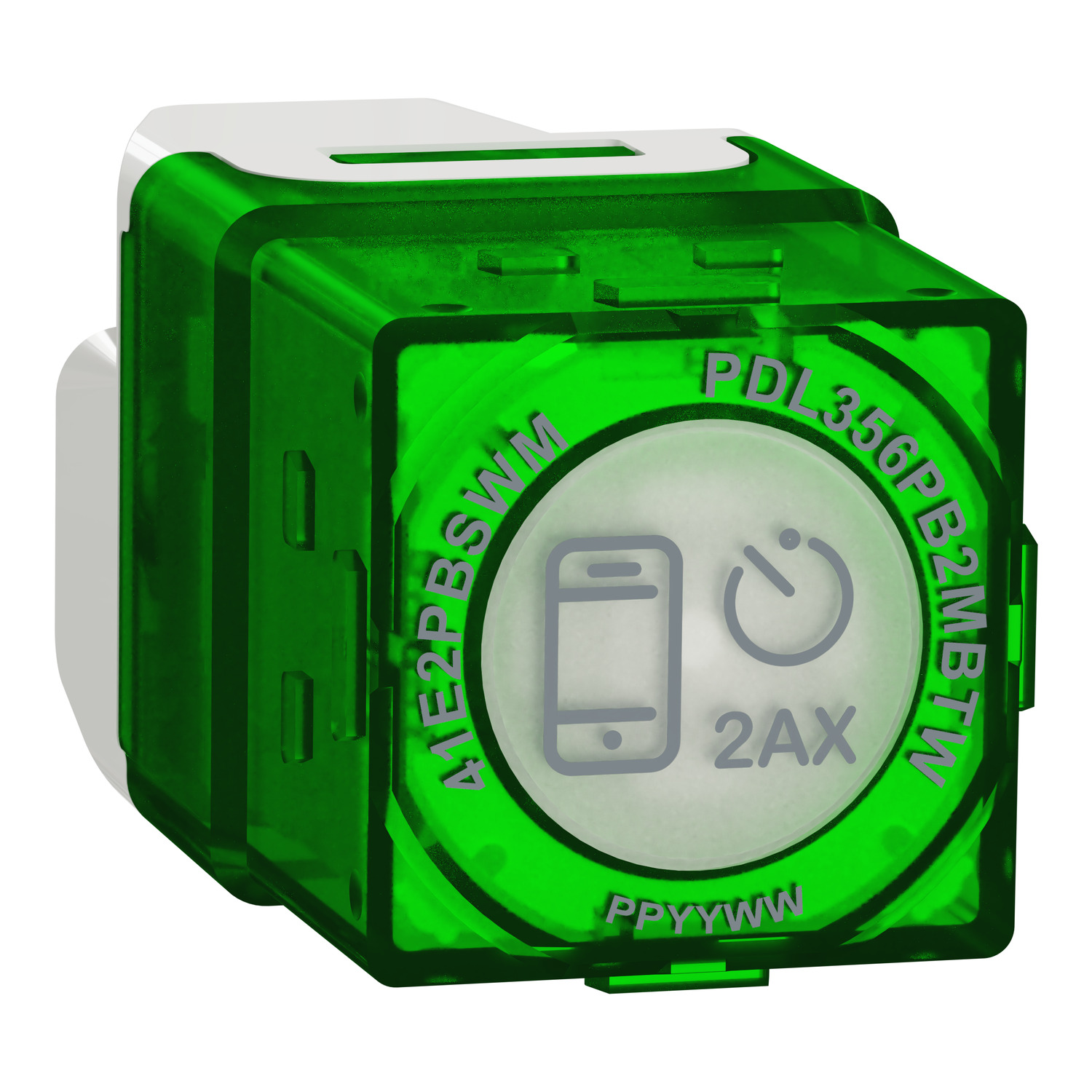

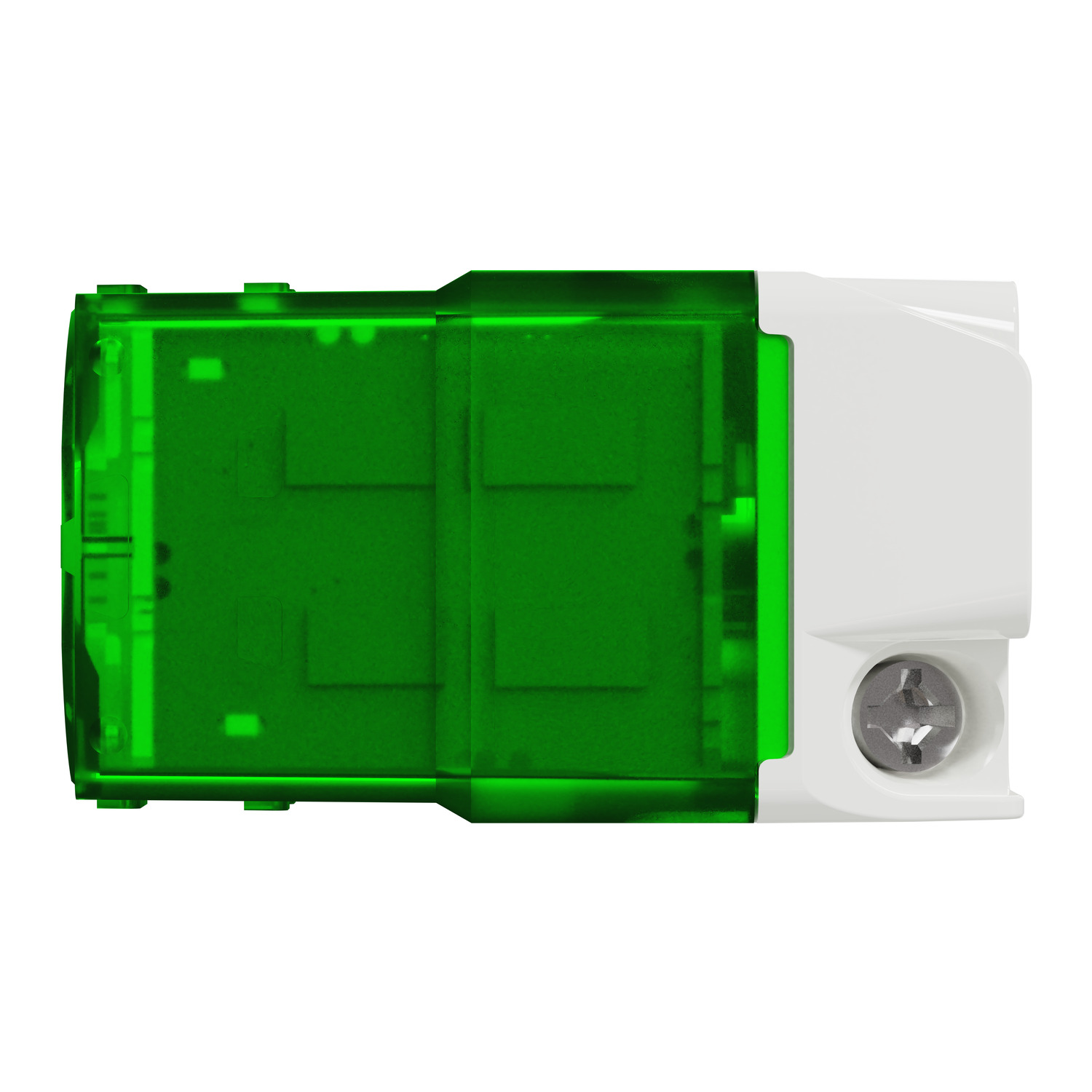

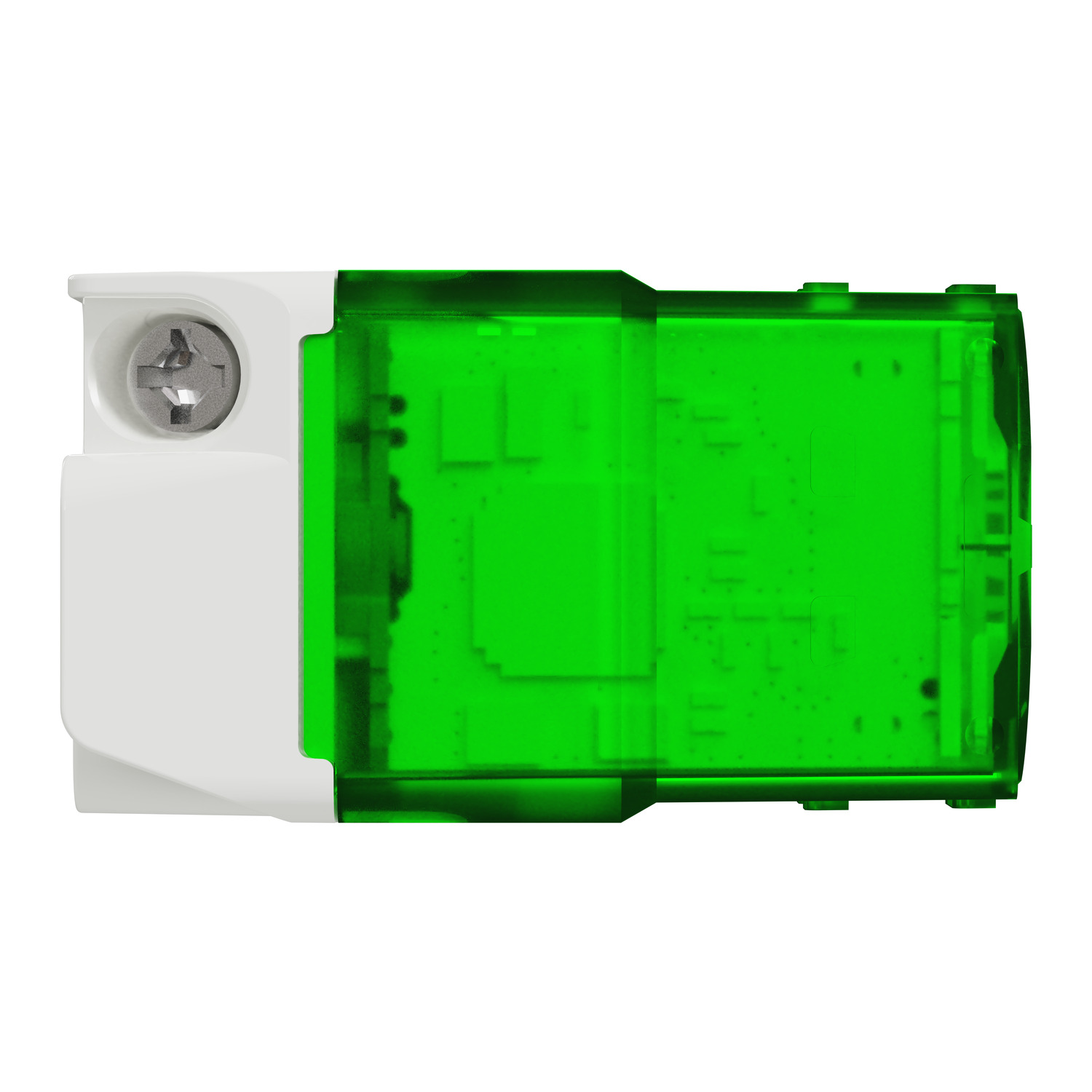

The Iconic Push Button Wiser 2AX Connected Smart Switch Module offers flexible installation options and is ideal for controlling lighting and exhaust fans. With the Wiser app, the 2AX Connected Switch Mechanism gives you 1s- 24hr timer and run-on timer functions. Use the wall switch, or your smart phone app with Bluetooth Low Energy (BLE).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Concentrator compatibility | Wiser hub generation 1 |
| Range | Iconic |
| Product or component type | connected switch |
| Product brand | Clipsal |
| Mobile App name | Wiser by SE |
| Complementary | |
| Main colour tint | vivid white |
| Software name | Wiser App |

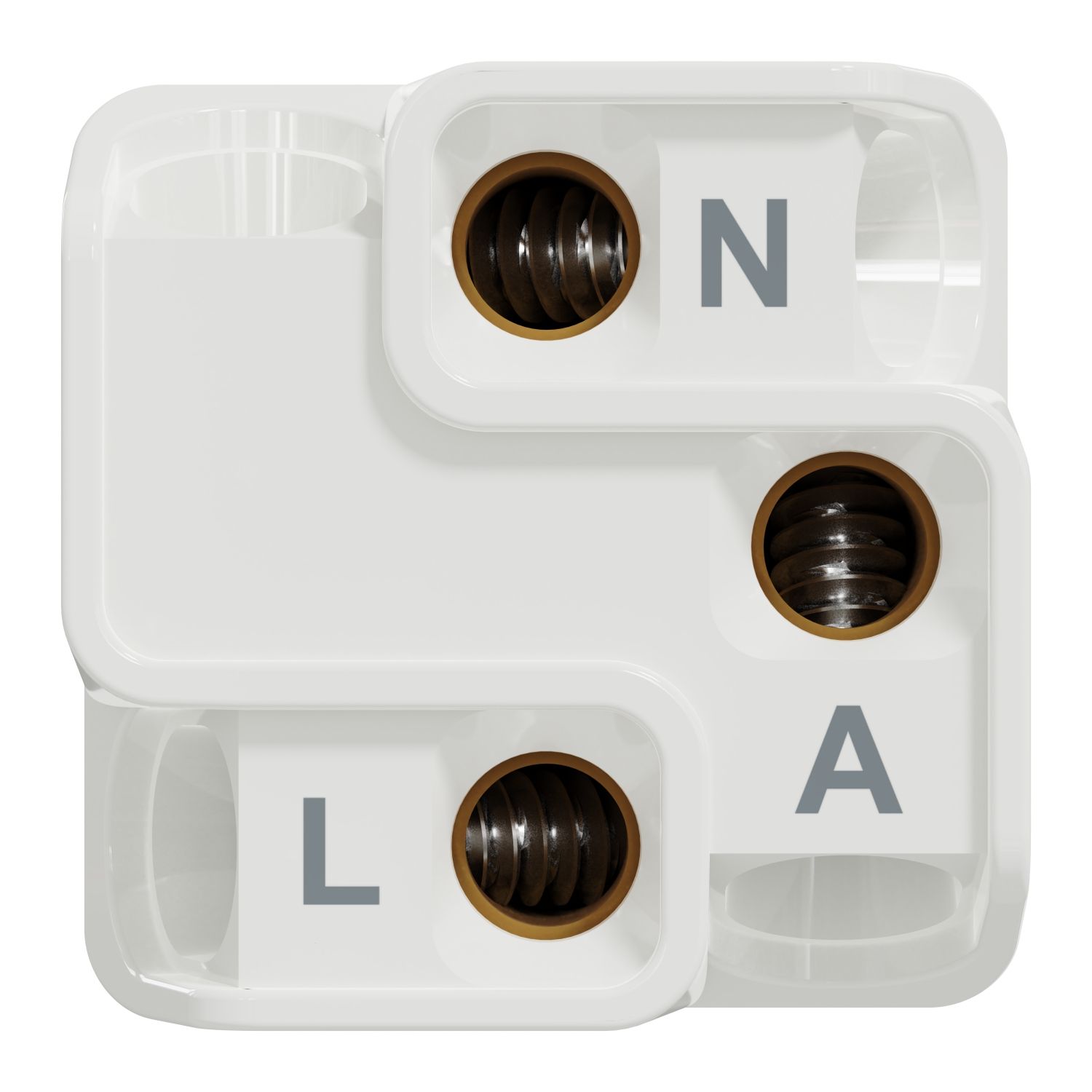

| Wiring configuration | 3-wire |
| Protection type | thermal protection, over temperature protection |
| Device presentation | mechanism |
| Fixing center | 84 mm |
| Surface finish | glossy |
| Height | 22 mm |
| Load type | motor: 2 A, resistive: 2 A, inductive: 2 A (cos phi =0.6 ), linear fluorescent ballast: 2 A, medium voltage halogen lamp: 2 A, electronic transformer: 2 A, LED lighting driver (non-dimmable): 2 A, dimmable LED lighting driver: 2 A |
| Technology type | Zigbee, bluetooth low energy default, electronic |
| Depth | 56 mm |
| Number of rocker | 1 |
| Width | 22 mm |
| Communication network type | wireless (2.4-2.4 GHz), 2.5 mW at < 50 m |
| Control type | by mobile application, push-button |
| Material | plastic |
| Type of installation | indoor installation |
| Colour tint | vivid white (VW) |
| Local signalling | LED |
| Fixing mode | clip-in |
| Mounting support | grid |
| Device mounting | flush |
| Embedding depth | 40 mm |
| Actuator | push-button |
| [Ue] rated operational voltage | 220...240 V AC 50 Hz |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-90 % non-condensing |
| Standards | AS/NZS 4268 radio, AS/NZS 60669.2.1 EMC, AS/NZS 60669.2.1 safety |
