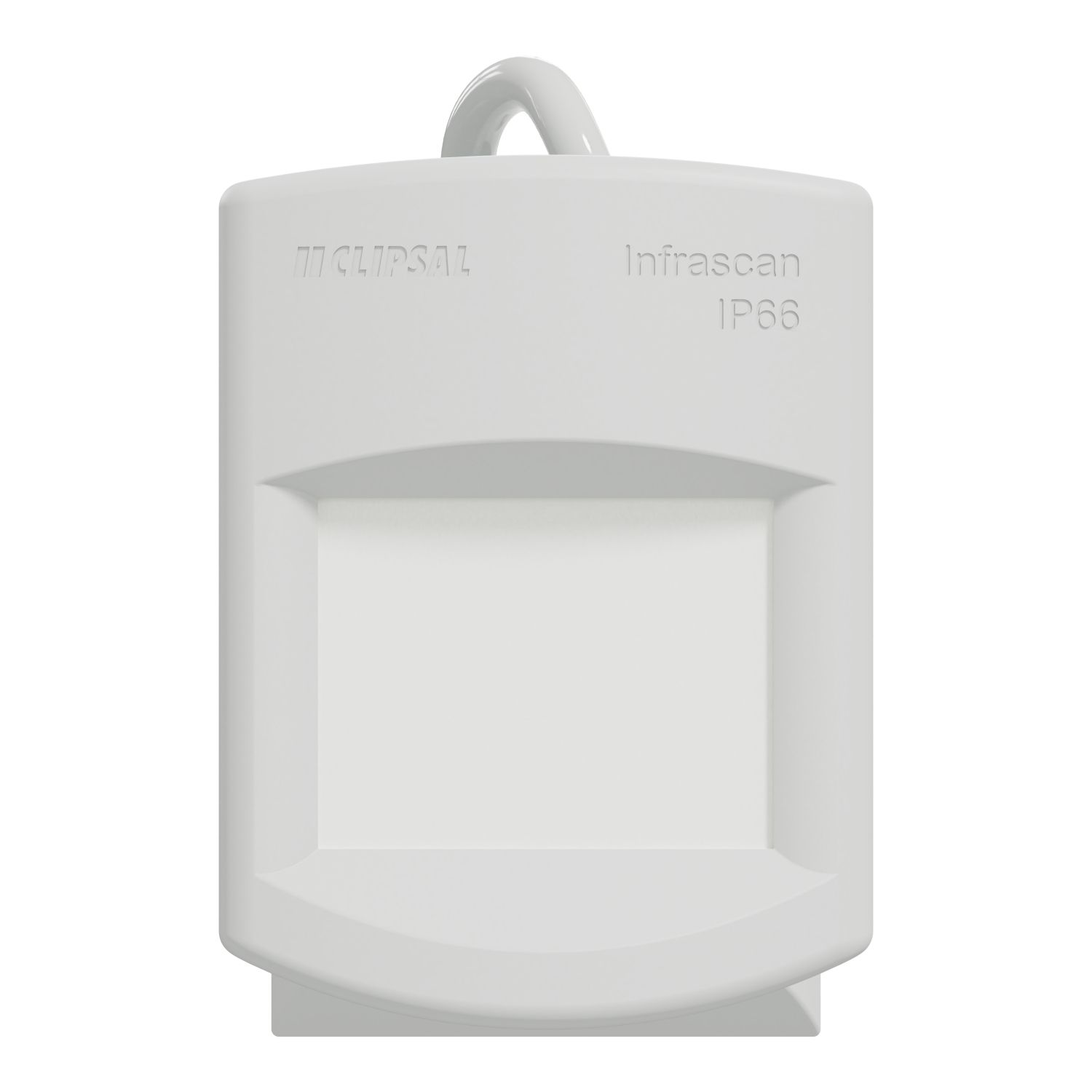

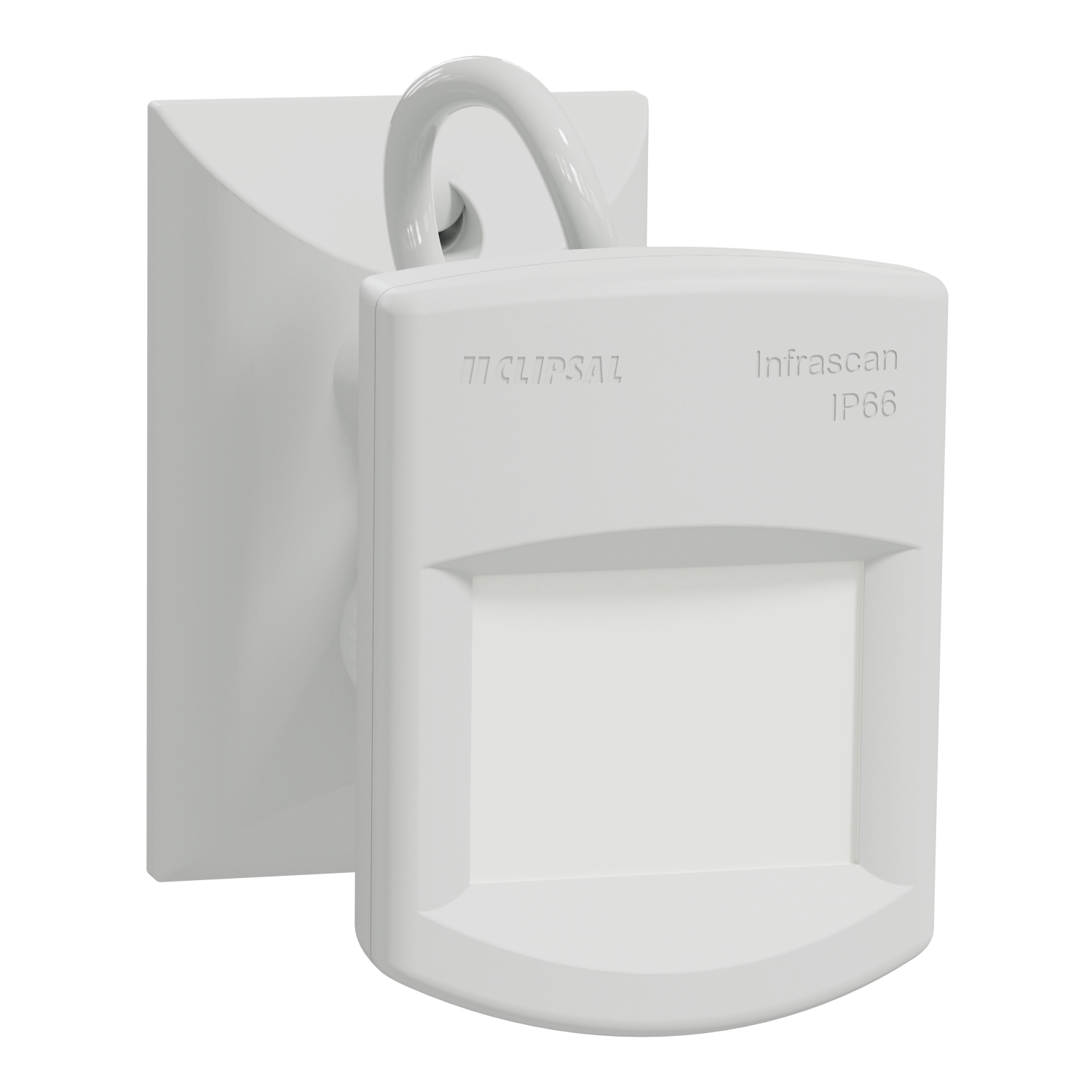

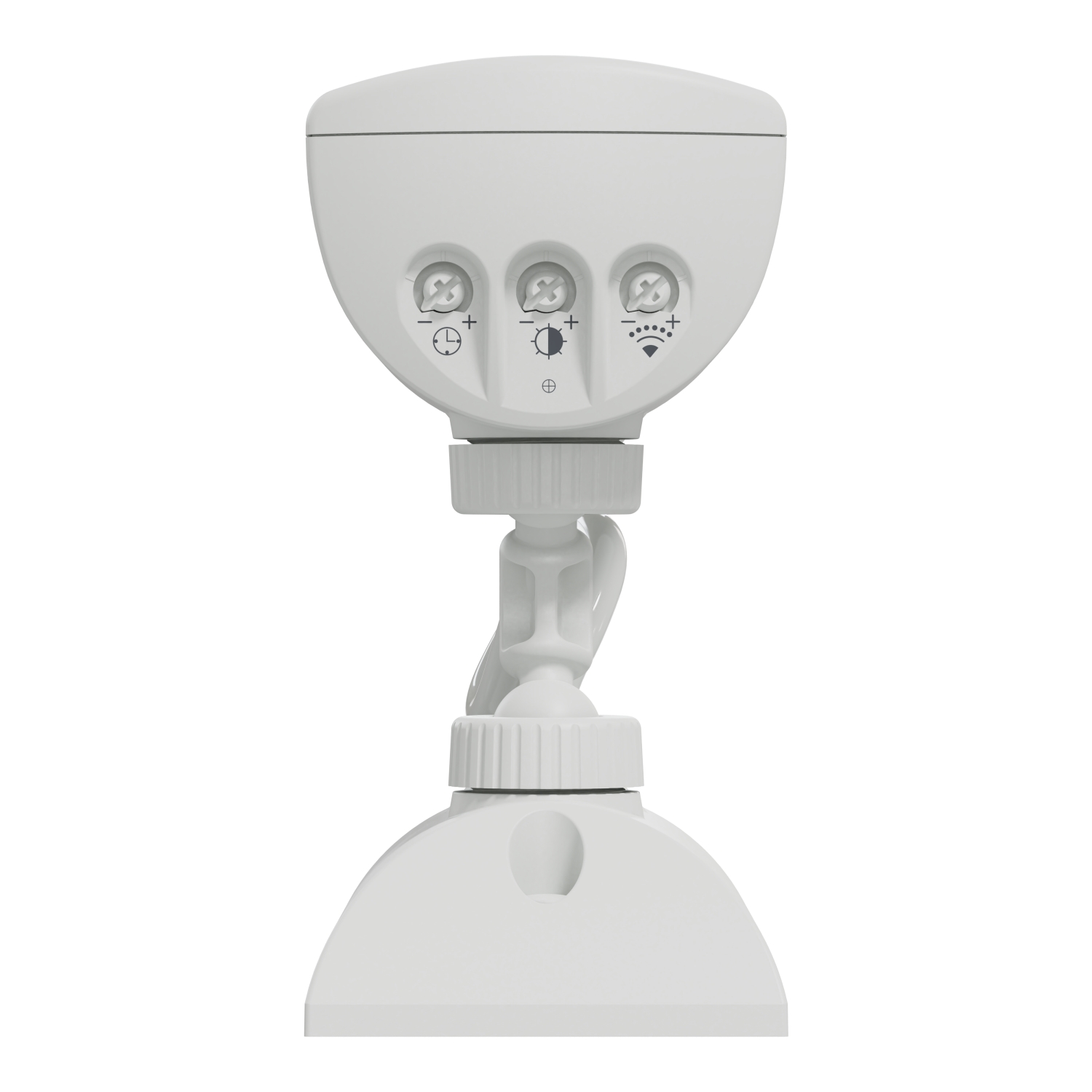

The Clipsal Outdoor Infrascan is the industry benchmark for IP66 outdoor motion sensors. Provided with a robust IP66 rated housing and UV protection, the Infrascan is designed for ongoing performance in harsh conditions. The Infrascan detects movement up to 18m at 110degrees with adjustable sensitivity, lux level and time delay, for control of LED or other lighting loads. Suitable for residential or commercial applications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Colour | grey |
| Sensor type | PIR |
| Range | Infrascan |
| Range of product | Infrascan |
| Product or component type | movement sensor |
| Product brand | Clipsal |
| Complementary | |
| Movement detection area | 18 m |
| Colour code | GY |
| Mounting height | 2.4 m |
| [Ue] rated operational voltage | 200...265 V AC |
| [In] rated current | 10 A |
| Mounting support | ceiling, wall |
| Device mounting | surface |
| Network frequency | 50 Hz |
| Environment | |
| IP degree of protection | IP66 |
| Ambient air temperature for operation | 0-50 °C |
