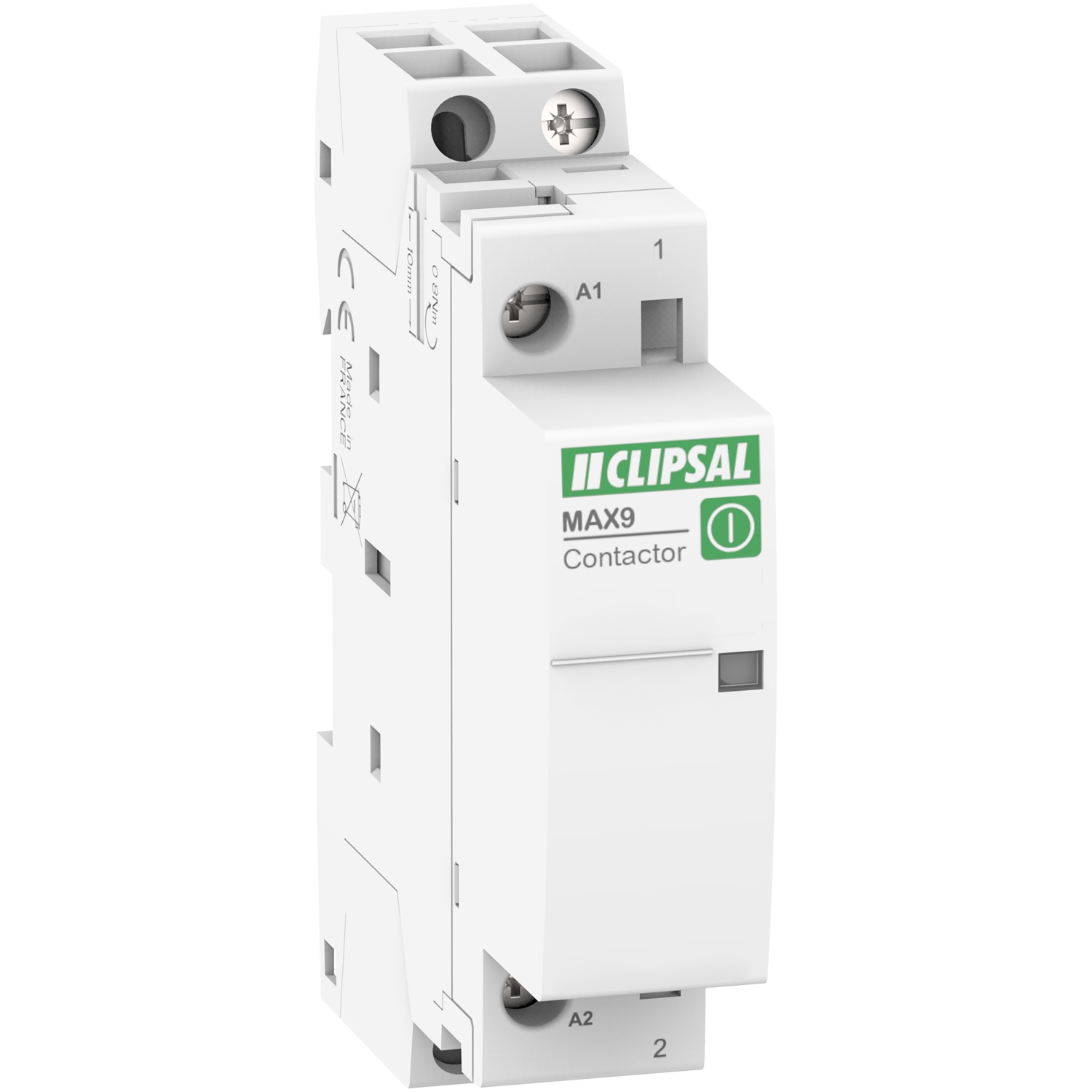

This MAX9 product is a modular contactor. It is a 1P modular contactor with 1 normally open contact. The rated current is 25A for AC-7a. The Ue rated operational voltage is 240VAC. The Uc control voltage is 24VAC. This device could be used for control circuits. This device could be used for remote switching small motors (fans, mixers) or HVAC system applications. This product is compliant with IEC/EN 61095 standard. The MAX9 is targeted to residential for individual and collective buildings. It has an electrical endurance going up to 100000 cycles and a mechanical endurance going up to 1000000 cycles. The operating frequency is 50Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 81mm x (D) 63mm. According to EN 61095 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5-70 °C. The storage temperature is -40-70 °C.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | control circuit |
| [Ie] rated operational current | 25 A AC-7A |
| Control type | remote control |
| Range | MAX9 |
| Poles description | 1P |
| Pole contact composition | 1 NO |
| Utilisation category | AC-7A |
| Product or component type | contactor |
| Network type | AC |
| [Uc] control circuit voltage | 24 V AC 50 Hz |
| Complementary | |
| Product compatibility | no auxiliary |
| Tightening torque | 0.8-0.8 N.m |
| Colour | white (RAL 9003) |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Mechanical durability | 1000000 cycles |
| Electrical durability | 100000 cycles 24 V 25 A AC 50 Hz |
| Mounting mode | clip-on |
| Wire stripping length | 10 mm |
| Comb busbar and distribution block compatibility | NO |
| Hold-in power consumption in VA | 3.8-3.8 VA |
| Switching frequency | 100 switching operations/day |
| Height | 81 mm |
| Connections - terminals | control: tunnel type terminal2 cable(s) 0.5-2.5 mm² rigid, control: tunnel type terminal1 cable(s) 0.5-6 mm² rigid, control: tunnel type terminal2 cable(s) 0.5-2.5 mm² flexible, control: tunnel type terminal1 cable(s) 0.5-4 mm² flexible, power: tunnel type terminal2 cable(s) 1.5-2.5 mm² rigid, power: tunnel type terminal1 cable(s) 1.5-6 mm² rigid, power: tunnel type terminal2 cable(s) 1.5-2.5 mm² flexible, power: tunnel type terminal1 cable(s) 1.5-4 mm² flexible |
| [Ue] rated operational voltage | 240 V AC 50 Hz |
| Maximum power | 1.3 W at 240 V AC 50 Hz |
| Depth | 63 mm |
| Market segment | residential |
| Width | 18 mm |
| Inrush power in VA | 15 VA |
| [Ui] rated insulation voltage | 500 V AC 50 Hz conforming to EN 61095 |
| Net weight | 120 g |
| 9 mm pitches | 2 |
| Temperature derating table | 60 °C ( 20 A ) , 50 °C ( 23.8 A ) , 40 °C ( 25 A ) |
| Mounting support | 35 mm symmetrical DIN rail |
| Network frequency | 50 Hz |
| Environment | |
| Heat dissipation | 1.4-1.4 W at 50 Hz |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-70 °C |
| Pollution degree | 2 |
| Noise level | 30 dB |
| IP degree of protection | IP20 (modular enclosure) conforming to IEC 60529 |
| Tropicalisation | severity B |
| Ambient air temperature for operation | -5-70 °C |
| Operating altitude | 2000 m |
| Overvoltage category | III |
| Quality labels | RCM |
