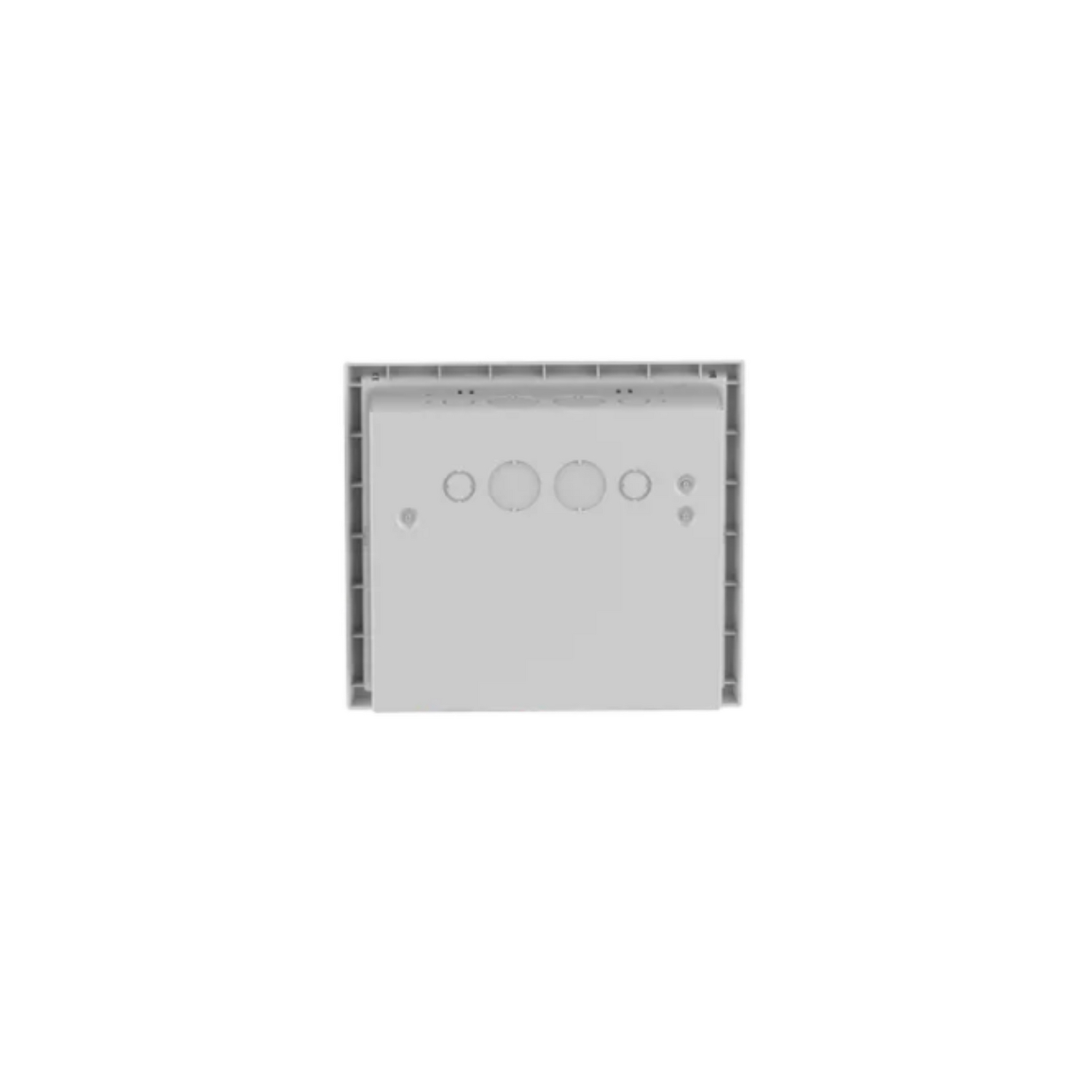

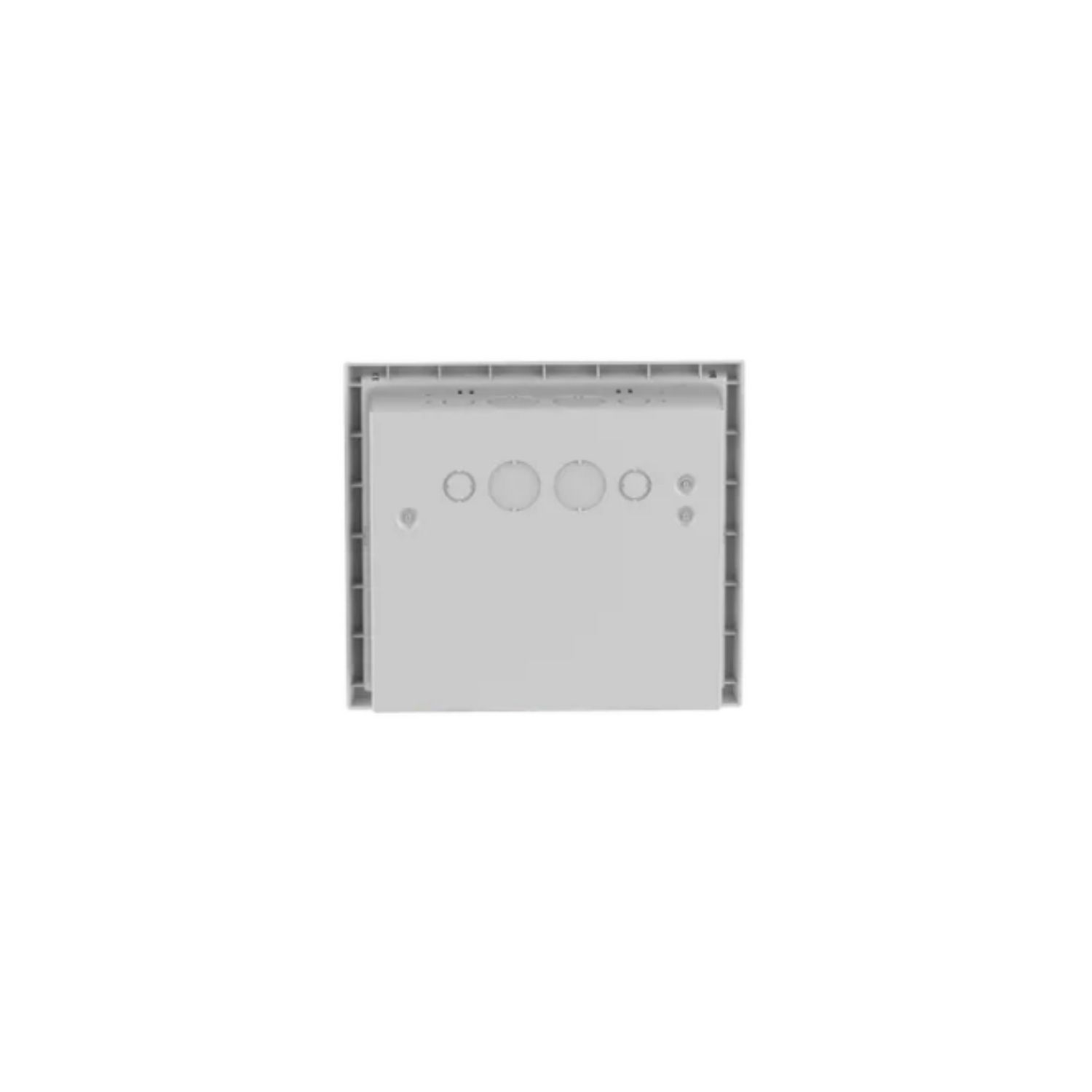

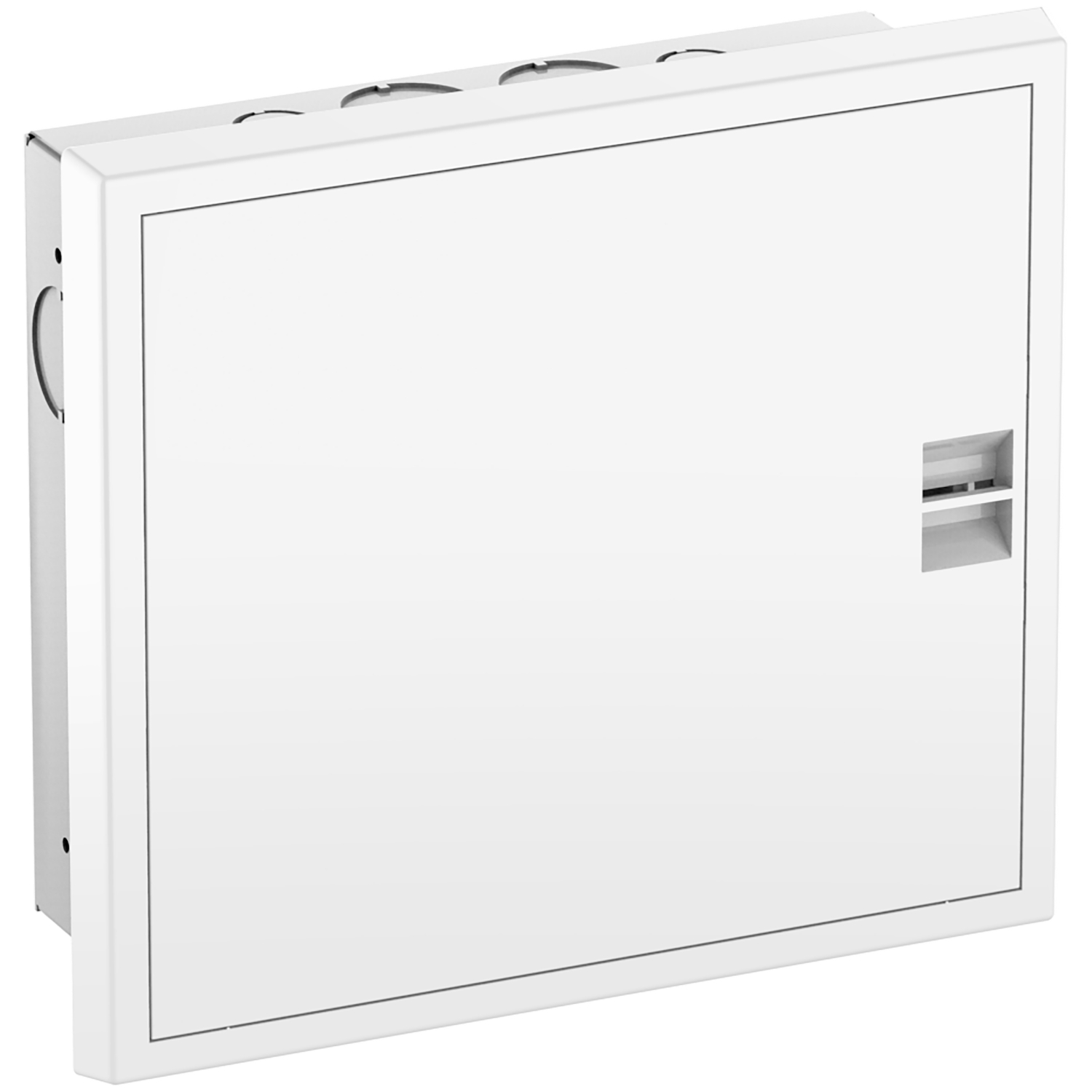

MAX9 switchboard enclosure is flush mounted. The rated current is 100A. This switchboard is composed of 1 row of 11 modules of 18mm (11 modules total). It can accomodate all types of modular Clipsal devices. It has plain door with door opening on left side The provided equipements are earthing bar, neutral bar, circuit identification label and blanking plate. It is dedicated to residential market. The Ue rated operational voltage is 230VAC or 415VAC. The Ui rated insulation voltage is 500V. It can be mounted on DIN rail for modular installation. The degree of protection is IP30 in an enclosure. This switchboard comply with AS/NZS 61439-3 and supports compliance to AS/NZS 3000 standards. The switchboard colour is white electric (RAL9003) This switchboard is complies with AS/NZS 61439-3 and AS/NZS 3000 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | distribution |
| Colour | white electric (RAL 9003) |
| Number of 18 mm modules per row | 11 |
| Range | MAX9 |
| Product or component type | enclosure |
| Door type | plain door - reversible |
| Provided equipment | blanking plate, circuit identification label, neutral bar, earthing bar |
| Product brand | Clipsal |
| Complementary | |
| Market segment | residential |
| Width | 310 mm |
| Enclosure material | front face: plastic, housing: metal |
| Number of ways | 11 ways |
| Enclosure mounting | flush |
| [Ui] rated insulation voltage | 500 V |
| Type of rail | DIN |
| Height | 280 mm |
| Depth | 96 mm |
| Cable entry | knock-out cable entries |
| Total number of 18 mm modules | 11 |
| Number of horizontal rows | 1 |
| [Ue] rated operational voltage | 240/415 V AC |
| [In] rated current | 100 A |
| Environment | |
| Fire resistance | 650 °C |
| IK degree of protection | IK05 |
| IP degree of protection | IP30 |
| Standards | AS/NZS 3000, AS/NZS 61439-3 |
