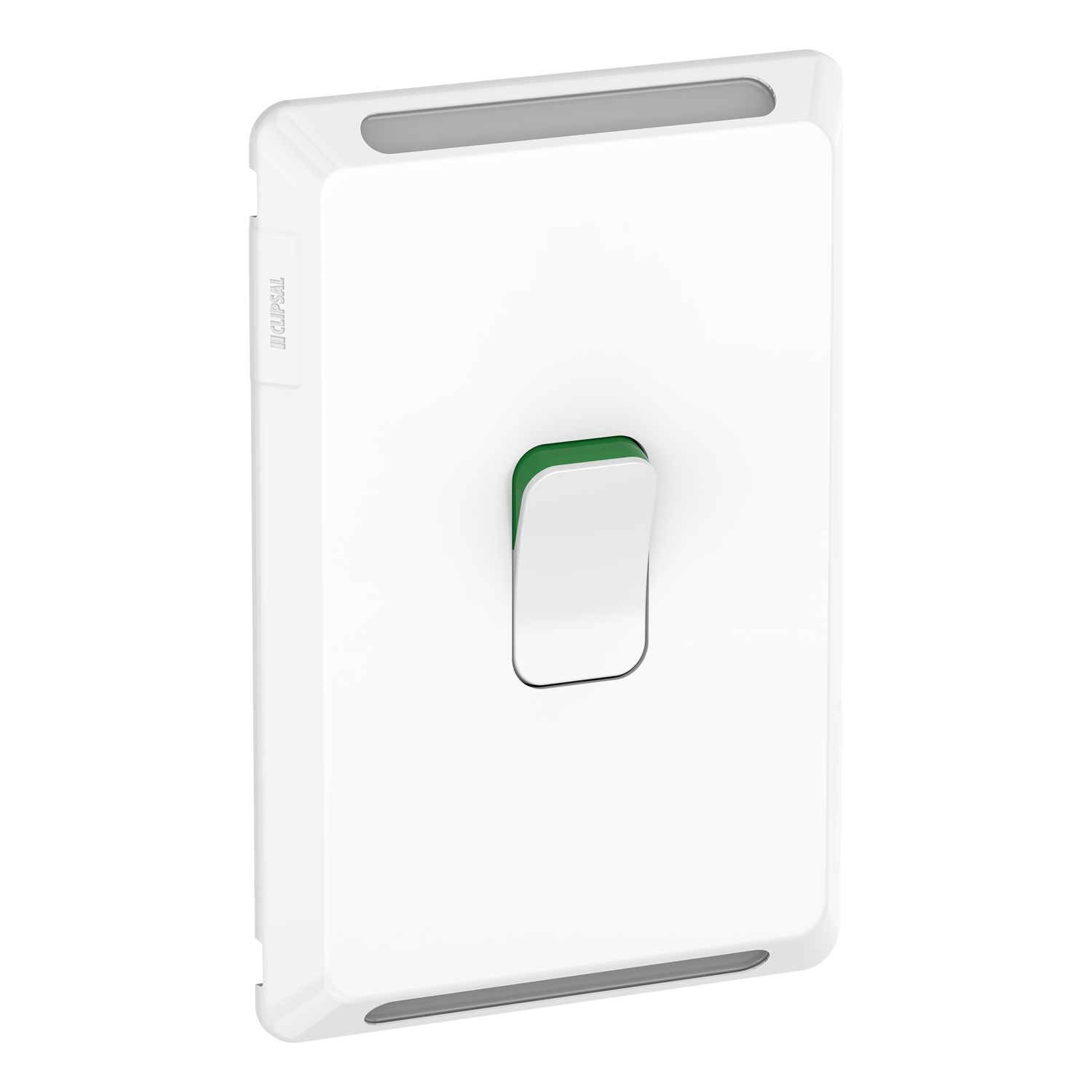

For commercial spaces where ovens and cookers are fitted out a Pro Series Cooker Switch is a must. A requirement when an electric cooktop is installed, the Pro Series Cooker Switch can be installed either vertically or horizontally. The switch is rated to 45A, 250V.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | cooker |
| Colour tint | white |
| Quantity per set | set of 5 |
| Range | Pro Series |
| Type of packing | polybag |
| Product or component type | switch |
| Complementary | |
| [Ue] rated operational voltage | 250 V |
| Depth | 39 mm |
| Number of rocker | 1 |
| Width | 78 mm |
| Switch function | 1-pole 1-way |
| Installation direction | horizontal/vertical |
| Device presentation | complete product |
| Control type | rocker |
| Net weight | 0.050 kg |
| Material | POM (polyoxymethylene), ABS (acrylonitrile butadiene-styrene), PP (polypropylene), PC (polycarbonate) |
| Surface treatment | untreated |
| Surface finish | glossy |
| Fixing mode | by screws |
| Rated current | 45 A |
| Device mounting | wall |
| Height | 116 mm |
| Connections - terminals | screw terminal |
| Environment | |
| Relative humidity | 10-95 % |
| Ambient air temperature for operation | 0-45 °C |
| Product certifications | RCM |
