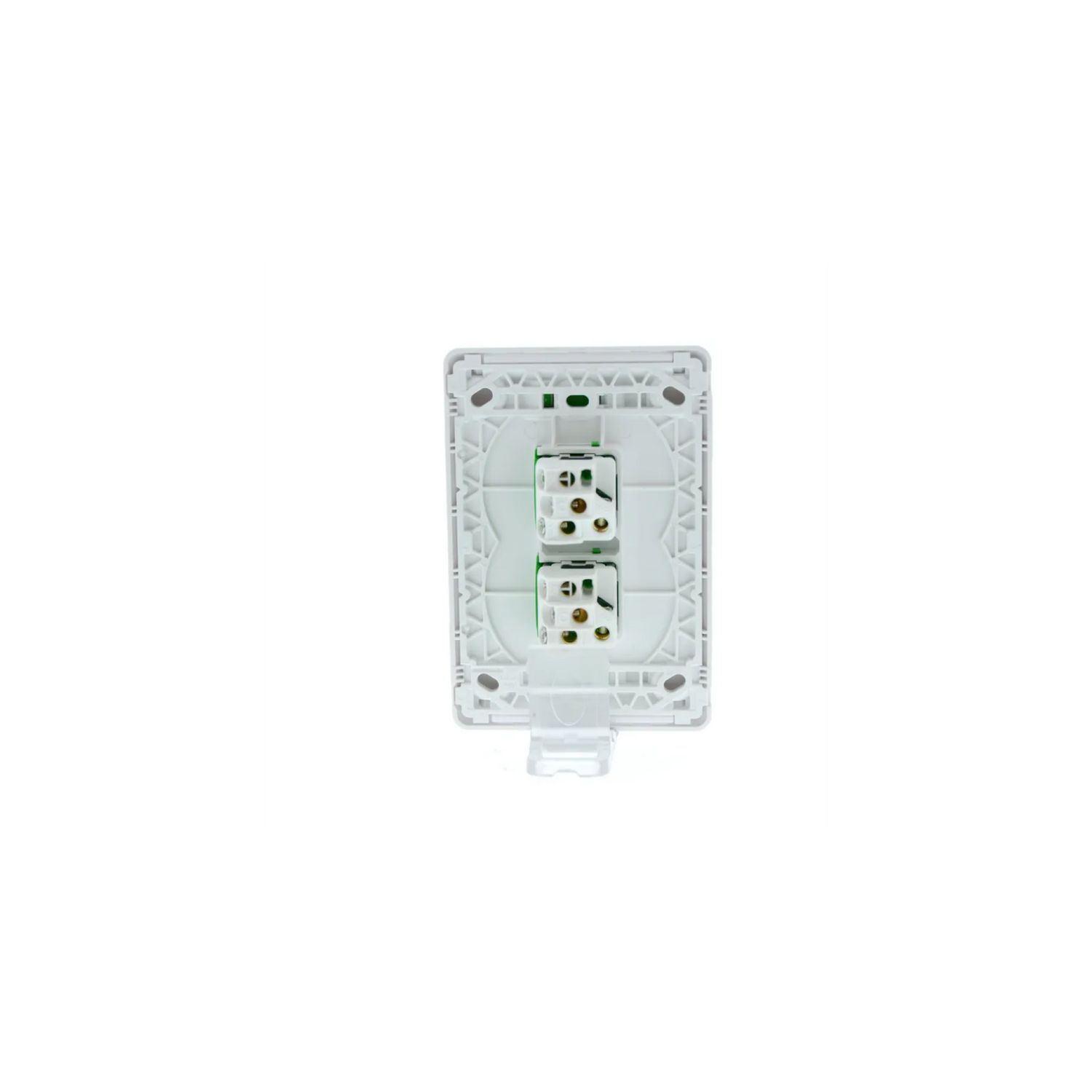

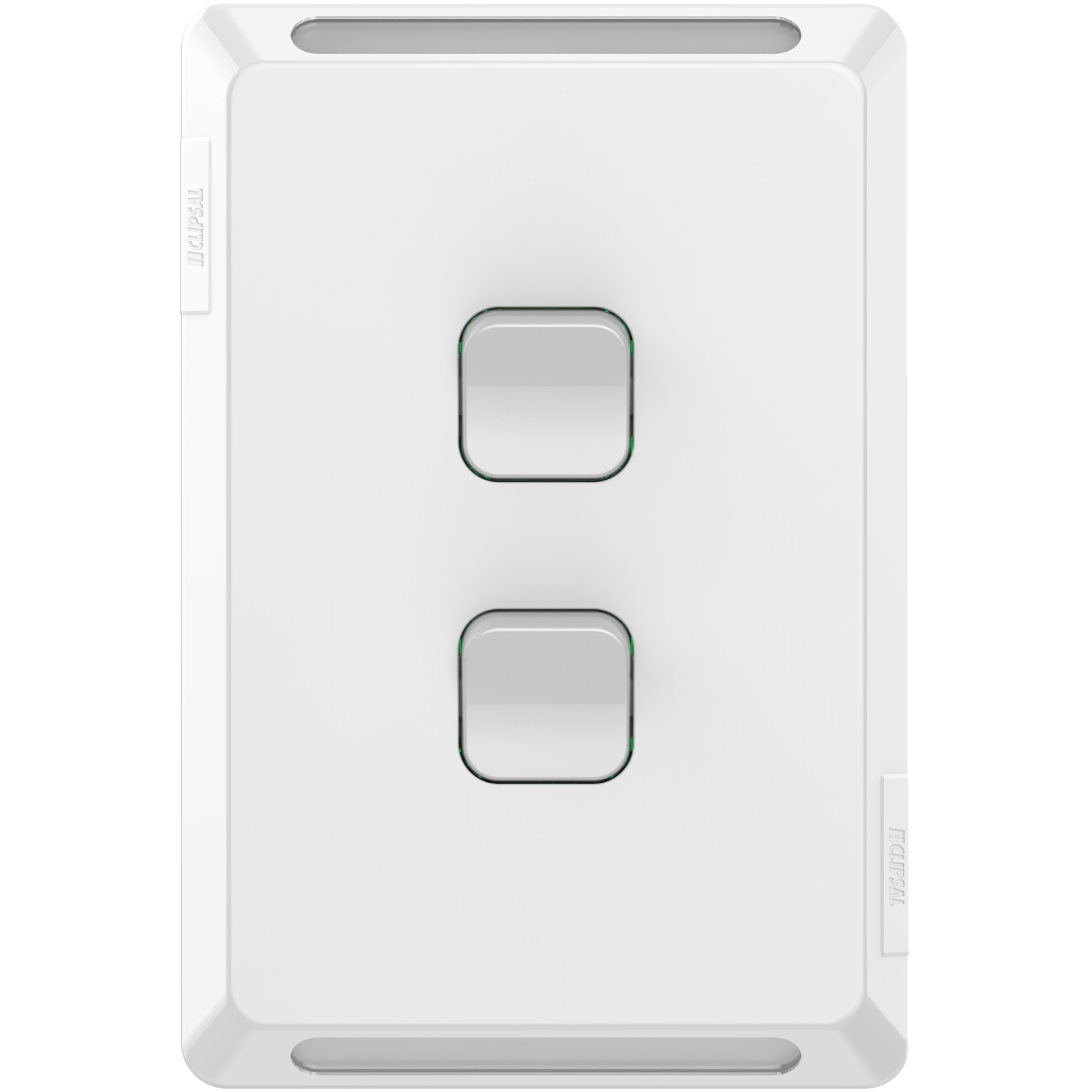

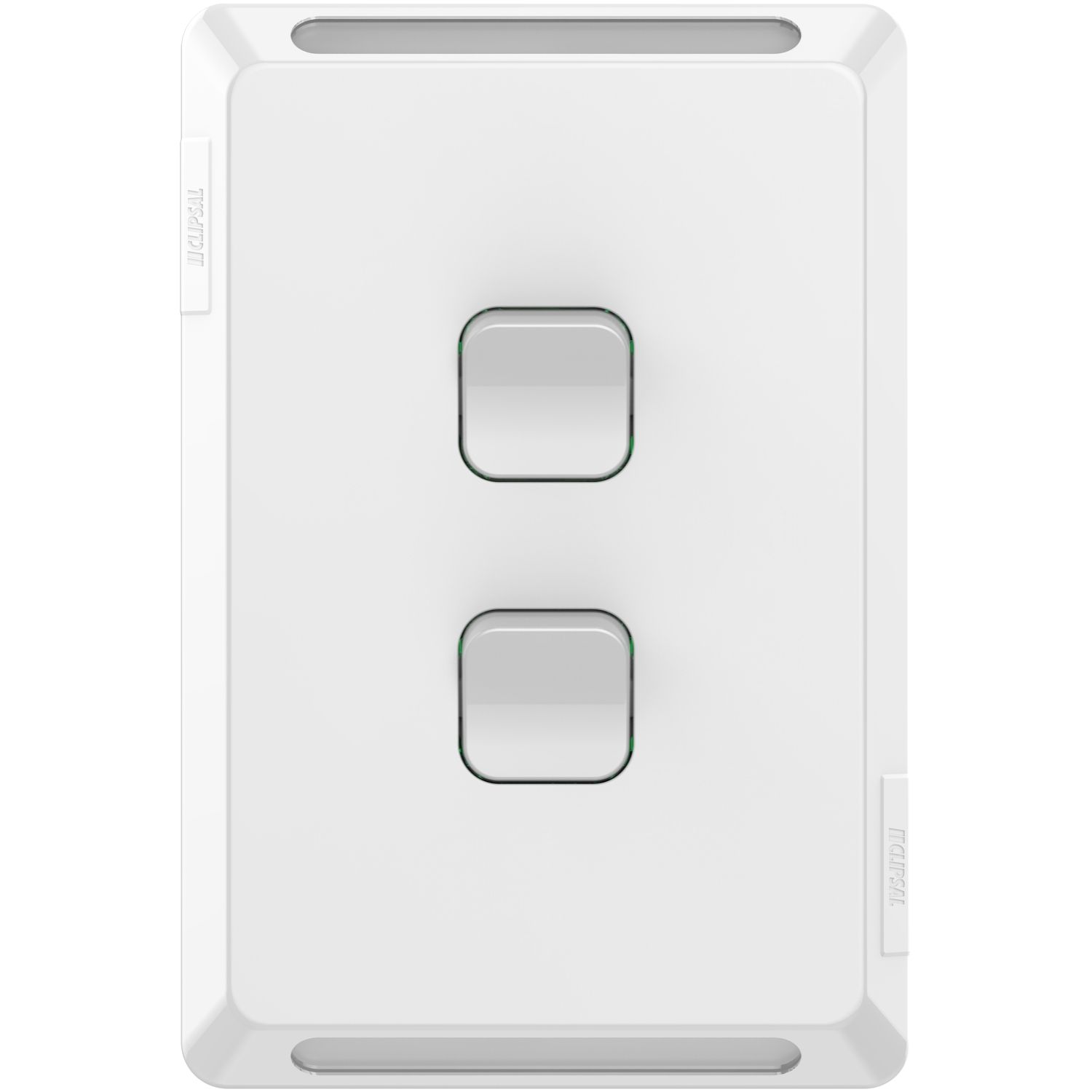

When one or two way switching is desired, the Clipsal Pro Series 2 Gang 20A/16AX, 250V Vertical Switch is an easy choice. Aesthetically pleasing, the fresh clean lines of the switch and glossy finish repel dirt, so the switch stays looking good for longer.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | lighting |
| Quantity per set | set of 10 |
| Range | Pro Series |
| Colour tint | white |
| Type of packing | polybag |
| Product or component type | switch |
| Complementary | |
| Switch function | 1-pole 1/2-way |
| Device presentation | complete product |
| Control type | rocker |
| Surface treatment | untreated |
| Surface finish | glossy |
| Rated current | 20 A/16 AX |
| Height | 116 mm |
| Connections - terminals | screw terminal |
| [Ue] rated operational voltage | 230/240 V |
| Depth | 38 mm |
| Number of rocker | 2 |
| Width | 78 mm |
| Installation direction | vertical |
| Net weight | 0.082 kg |
| Material | POM (polyoxymethylene), ABS (acrylonitrile butadiene-styrene), PP (polypropylene), PC (polycarbonate) |
| Clamping connection capacity | 1 x 4 mm² for stranded cable(s), 3 x 2.5 mm² for stranded cable(s), 1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s) |
| Fixing mode | by screws |
| Device mounting | wall |
| Environment | |
| Relative humidity | 10-95 % |
| Ambient air temperature for operation | 0-45 °C |
| Product certifications | RCM |
