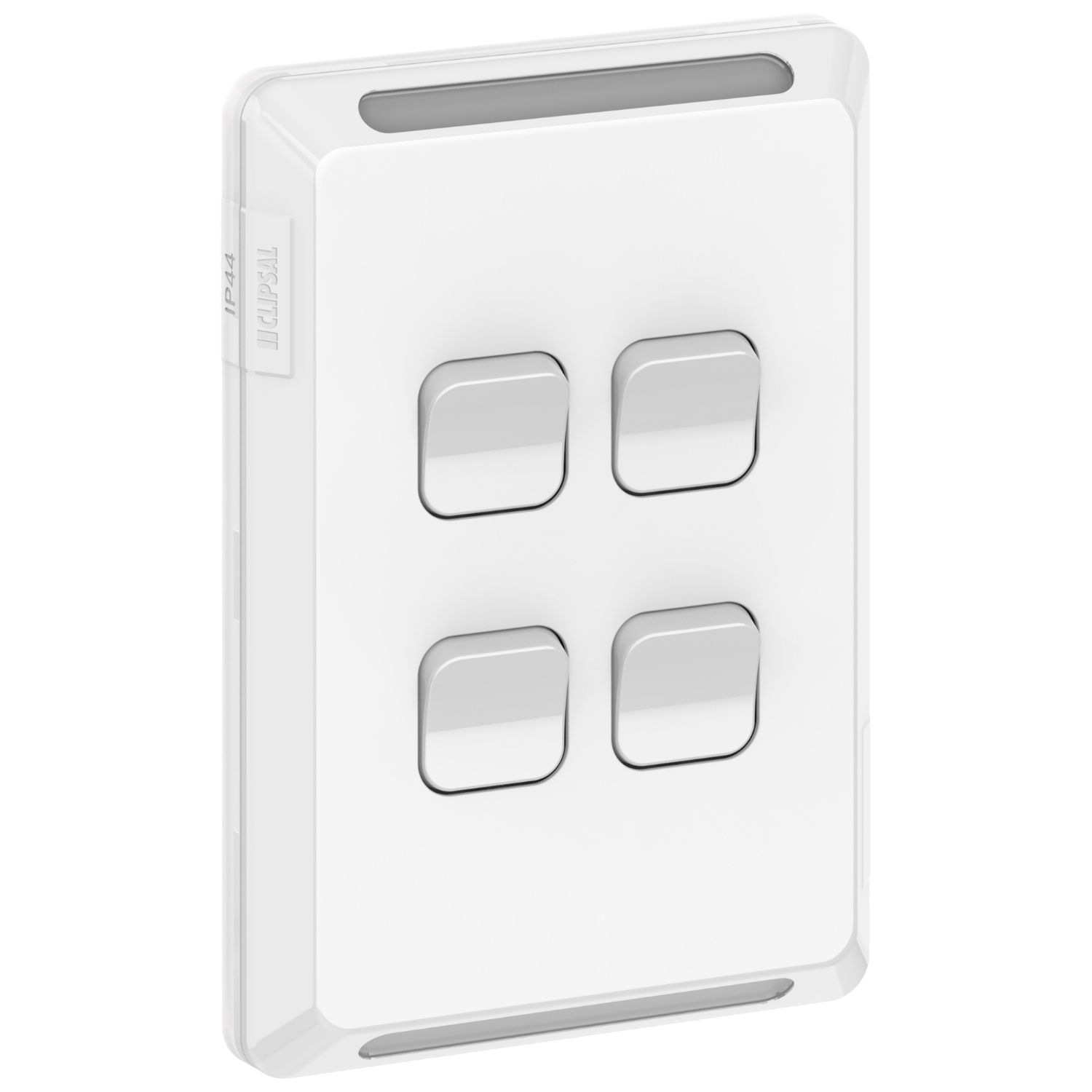

Switch four circuits in areas where dust or water ingress might occur with the Clipsal Pro Series IP44 Vertical 4 Gang switch. The switch is rated 20A/16AX, 250V for one or two way switching - perfect for use in areas where you want to activate circuits from multiple locations.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | lighting |
| Colour tint | white |
| Quantity per set | set of 5 |
| Range | Pro Series |
| Type of packing | polybag |
| Product or component type | switch |
| Complementary | |
| [Ue] rated operational voltage | 230/240 V |
| Depth | 40 mm |
| Number of rocker | 4 |
| Width | 78 mm |
| Switch function | 1-pole 1/2-way |
| Installation direction | vertical |
| Device presentation | complete product |
| Control type | rocker |
| Net weight | 0.150 kg |
| Material | POM (polyoxymethylene), ABS (acrylonitrile butadiene-styrene), PP (polypropylene), PC (polycarbonate) |
| Clamping connection capacity | 1 x 4 mm² for stranded cable(s), 3 x 2.5 mm² for stranded cable(s), 1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s) |
| Surface treatment | untreated |
| Surface finish | glossy |
| Fixing mode | by screws |
| Rated current | 20 A/16 AX |
| Device mounting | wall |
| Height | 116 mm |
| Connections - terminals | screw terminal |
| Environment | |
| IP degree of protection | IP44 |
| Relative humidity | 10-95 % |
| Ambient air temperature for operation | 0-45 °C |
| Product certifications | RCM |
