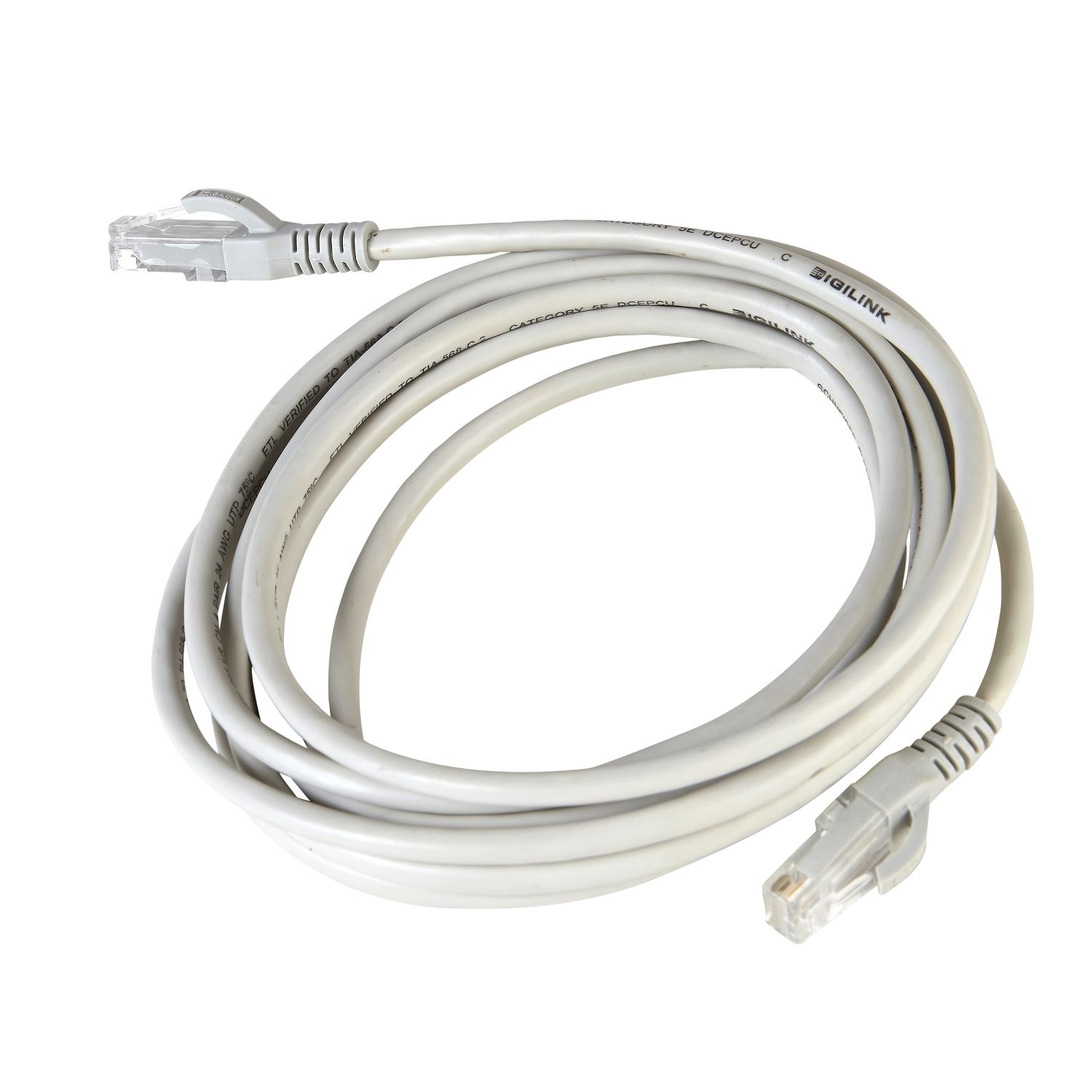

This Schneider Electric Digilink cable is a category 5e patch cord. It is used to connect one electric device to another for signal routing. Patch cords are assemblies of 4 twisted pairs stranded wire cables with modular plugs crimped on both ends as per T568B wiring scheme. The cable is 3 meter in length, UTP and grey, CM rated. The wiring is an unshielded 24 AWG stranded bare copper cable. Performance characterized up to 400 MHz and complient with ANSI/TIA-568-C.2 and ISO/IEC-11801 Class D. This CAT5e patch cable can be also used to connect the PM22xxR and PM53xxR Series meters with the 3-in-1 Quick Click CT block.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Colour tint | grey |
| Range | Digilink |
| Cable shielding type | UTP |
| Product or component type | patch cord |
| Range of product | Digilink |
| Complementary | |
| Contact resistance | 20 mOhm |
| Communication network category | 5e |
| [In] rated current | 1.5 A |
| AWG gauge | AWG 24 stranded cable |
| [Ue] rated operational voltage | < 72 V DC |
| Material | PC (polycarbonate): plug |
| Connector type | RJ45 |
| Type of cable | 4 twisted-pairs cable |
| Insulation resistance | >= 500 mOhm at 500 V DC |
| Cable length | 3 m |
| Contacts material | gold over nickel |
| Environment | |
| Standards | class D ISO/IEC 11801, ANSI/TIA-568-C.2 |
| Product certifications | ETL verified |
