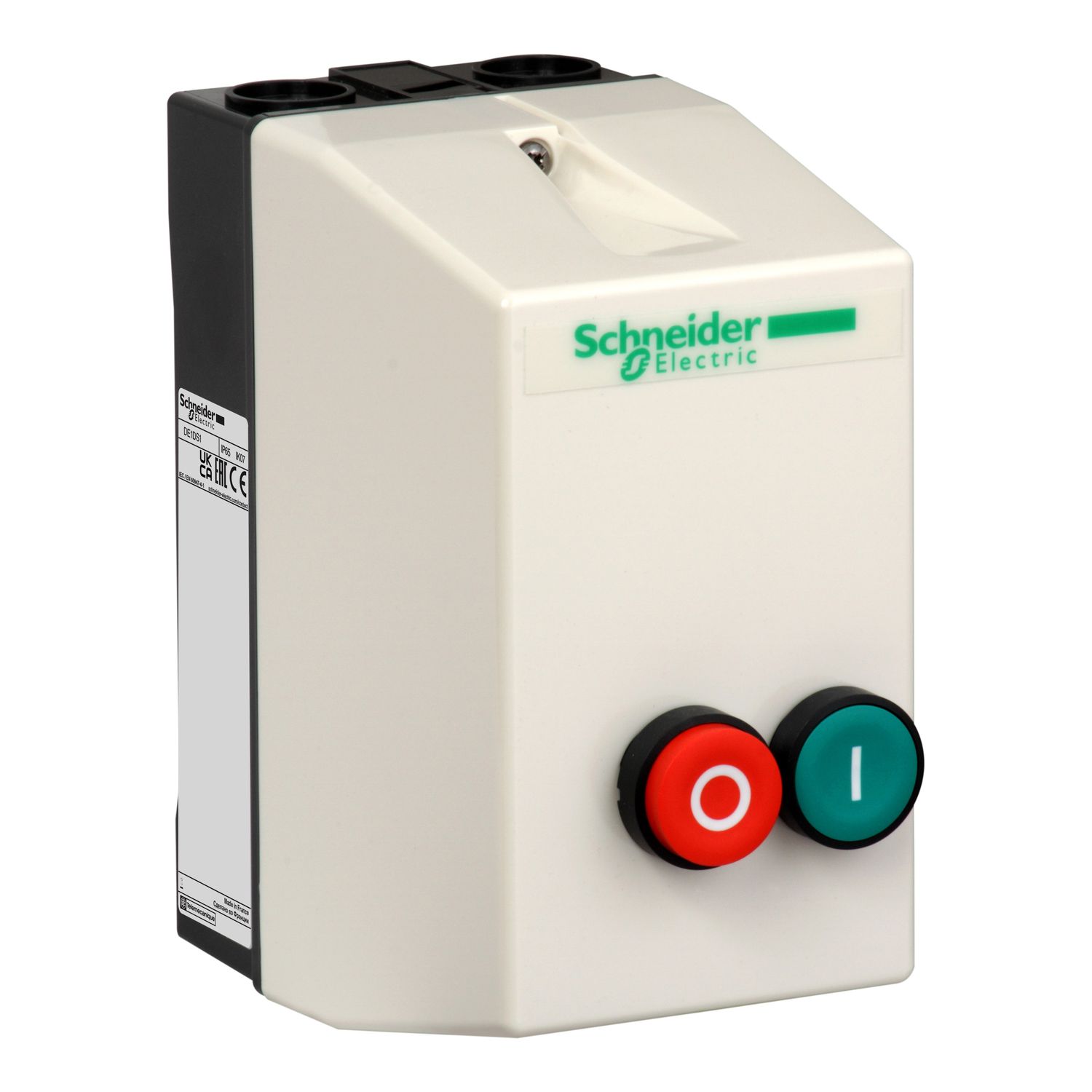

TeSys enclosed starter empty enclosure, for mounting a contactor and thermal overload relay for non-reversing motor applications AC-3 from 7.5 to 15kW@400V. Polycarbonate enclosure providing IP65 / IK07 protection, equipped with a green pushbutton Start (I) and a red pushbutton Stop/Reset (O). Optimized for the integration of a contactor LC1D18-D38 and a thermal overload relay LRD16-LRD35 depending on the motor power (devices to be ordered separately). Replacement part for TeSys enclosed starters LE1 D18-D35**. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. Environmental compliant (RoHS/REACh). Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | DE1D |
| Product compatibility | LE1D18...35 |
| Control type | push-button stop/reset red O, push-button start green I |
| Device composition | thermal overload relay ordered separately, contactor ordered separately |
| Range | TeSys |
| Material | polycarbonate |
| Product or component type | enclosure |
| Range of product | TeSys |
| Complementary | |
| Depth | 160 mm |
| Width | 103 mm |
| Compatibility code | DE1D |
| Cable entry number | 2 ISO25 bottom, 2 Pg 21 bottom, 2 ISO25 top, 2 Pg 16 bottom, 2 ISO20 bottom, 2 ISO20 top |
| Net weight | 0.5 kg |
| Height | 201 mm |
| Environment | |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Environmental characteristic | standard environment |
| Ambient air temperature for operation | -5-40 °C |
| IK degree of protection | IK07 conforming to IEC 60529 |
| Product certifications | UKCA |
Only registered users can write reviews
Related products

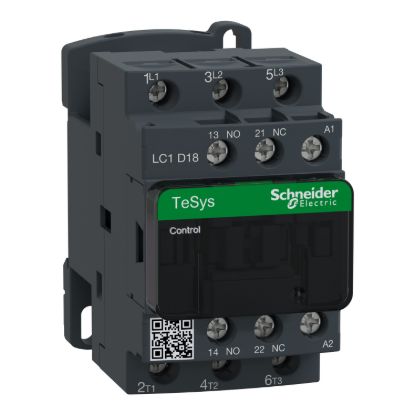

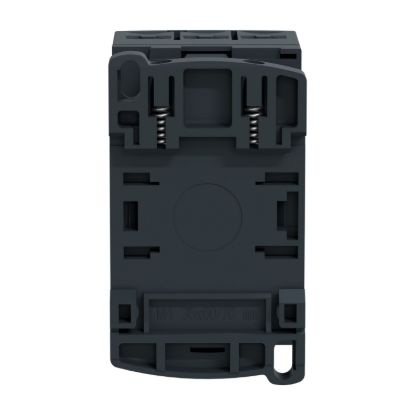

Contactor, TeSys D, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 220VAC 50/60Hz coil
LC1D18M7
Contactor, TeSys D, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 220VAC 50/60Hz coil
$133.32 inc GST
$52.91 inc GST

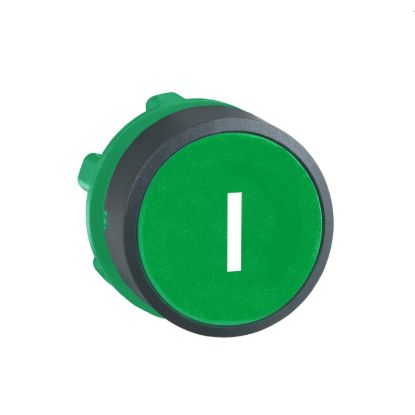

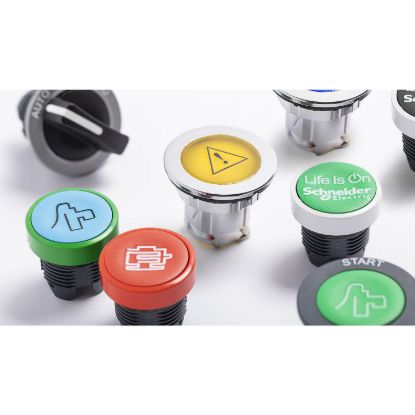

Head for non illuminated push button, Harmony XB5, plastic, flush, green, 22mm, spring return, marked I
ZB5AA331
Head for non illuminated push button, Harmony XB5, plastic, flush, green, 22mm, spring return, marked I
$26.51 inc GST
$16.13 inc GST

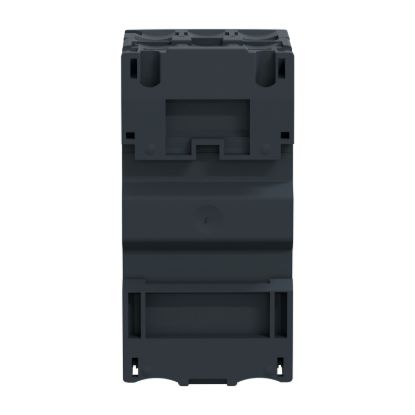

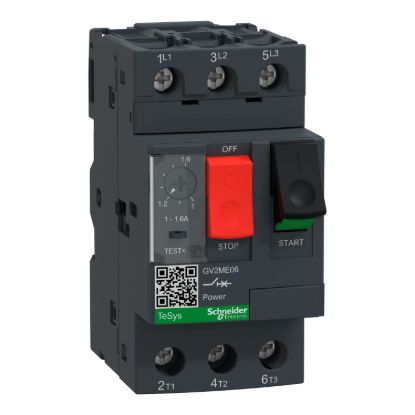

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1 to 1.6A, thermal magnetic, screw clamp terminals, button control
GV2ME06
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1 to 1.6A, thermal magnetic, screw clamp terminals, button control
$246.95 inc GST
$98.01 inc GST
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1.6 to 2.5A, thermal magnetic, screw clamp terminals, button control
GV2ME07
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1.6 to 2.5A, thermal magnetic, screw clamp terminals, button control
$246.95 inc GST
$98.01 inc GST

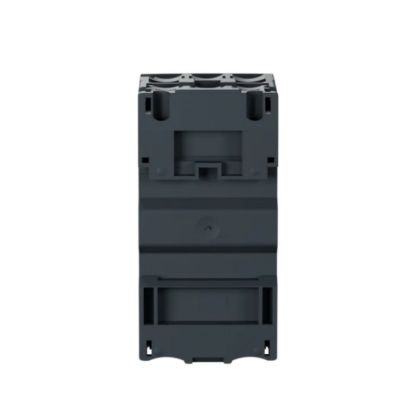

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, screw clamp terminals, button control
