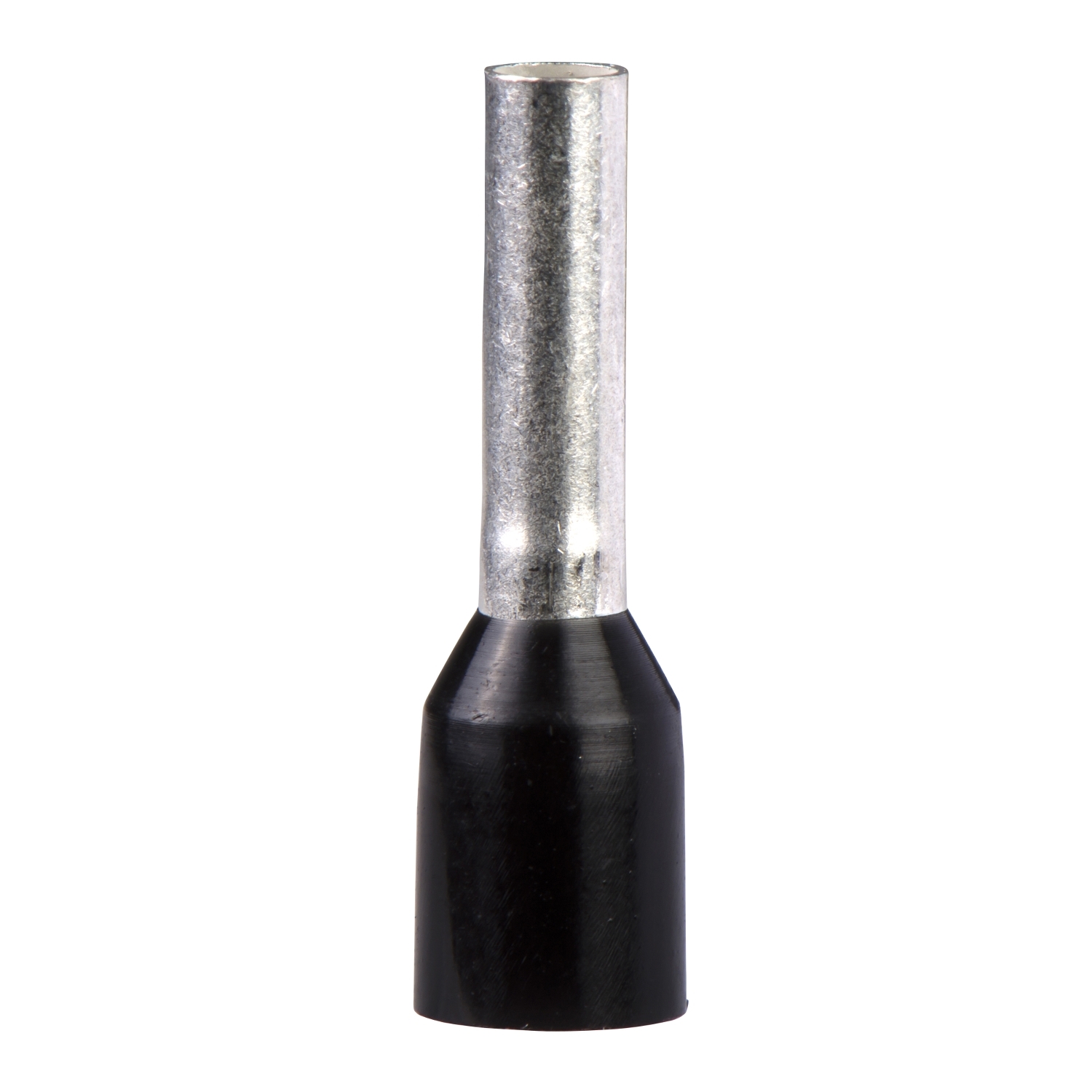

Linergy cable end insulated without marker tag holder. It applied to single conductor with 1.5 mm² cable cross section. It has black surface treatment. It is short size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | 10 sets of 100 |
| Cable end size | short |
| Cable cross section | 1.5-1.5 mm² |
| Type of packing | string of bags |
| Product or component type | cable end |
| Standards | NF C 63-023 |
| Range of product | Linergy |
| Complementary | |
| CAD overall depth | 12 mm |
| CAD overall width | 4 mm |
| Tube diameter | 2 mm |
| Additional information | without marker tag holder |
| Tube material | copper conforming to ISO 1337 |
| Bezel material | halogen-free plastic |
| Colour | black |
| AWG gauge | AWG 16 |
| CAD overall height | 4 mm |
| Net weight | 0.11 kg |
| Length | 12 mm |
| Cable end type | single conductor |
| Number of cables | 1 |
| Bezel size | Ø 4 mm |
| Tube length | 6 mm |
| Environment | |
| Ambient air temperature for operation | -20-105 °C |
| Product certifications | UL |
