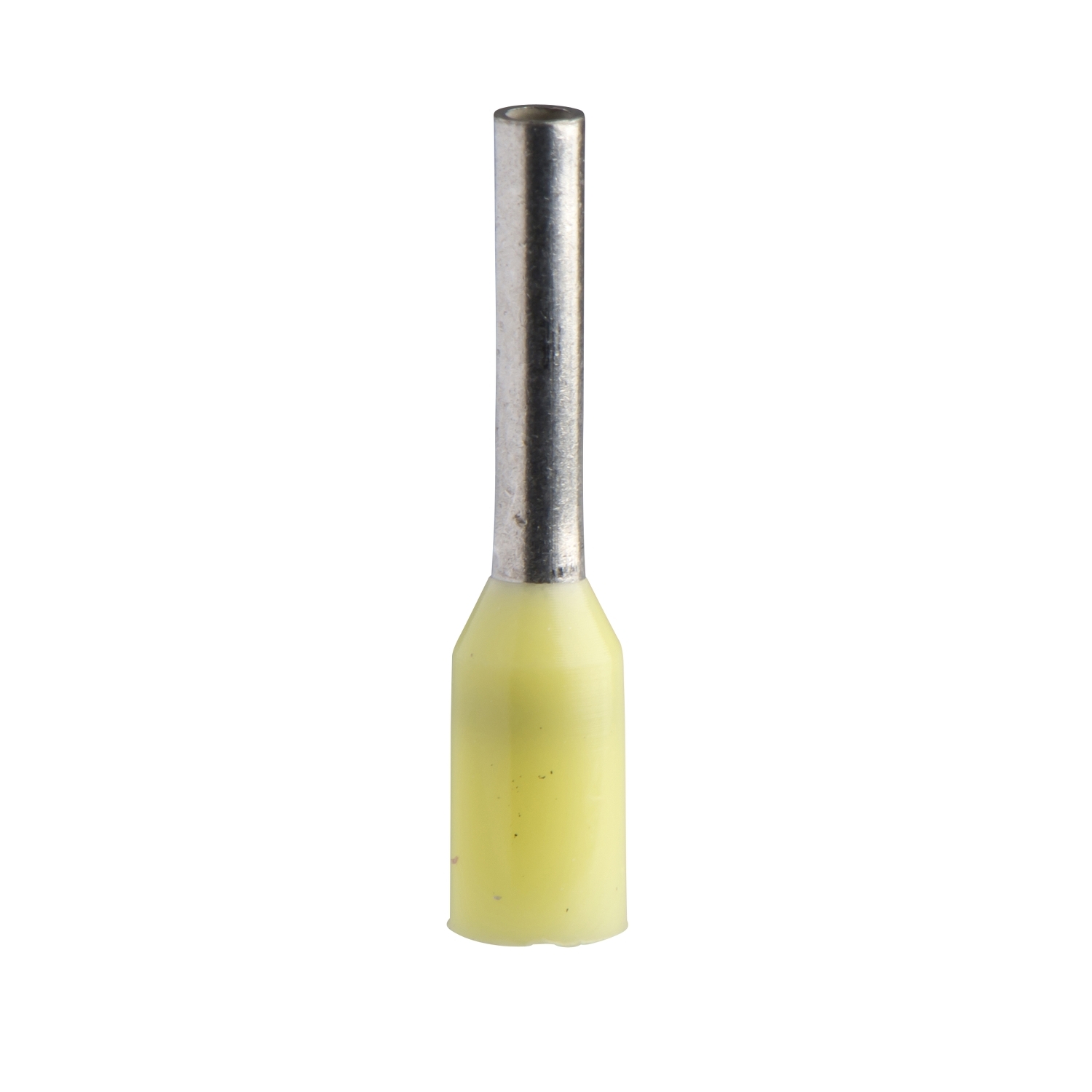

Linergy cable end insulated for clip-in marker. It applied to single conductor with 2 mm² cable cross section. It has Yellow surface treatment. It is medium size for additional marker tag holder. Packing by bag and quantity per set is set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is compliant with Green Premium (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | 10 sets of 100 |
| Cable end size | medium |
| Cable cross section | 2-2 mm² |
| Type of packing | string of bags |
| Product or component type | cable end |
| Standards | NF C 63-023 |
| Range of product | Linergy |
| Complementary | |
| CAD overall depth | 14 mm |
| CAD overall width | 4 mm |
| Tube diameter | 2.2 mm |
| Additional information | without marker tag holder |
| Tube material | copper conforming to ISO 1337 |
| Bezel material | halogen-free plastic |
| Colour | yellow |
| AWG gauge | AWG 14 |
| CAD overall height | 4 mm |
| Net weight | 0.135 kg |
| Length | 14 mm |
| Cable end type | single conductor |
| Number of cables | 1 |
| Bezel size | Ø 4.2 mm |
| Tube length | 8 mm |
| Environment | |
| Ambient air temperature for operation | -20-105 °C |
