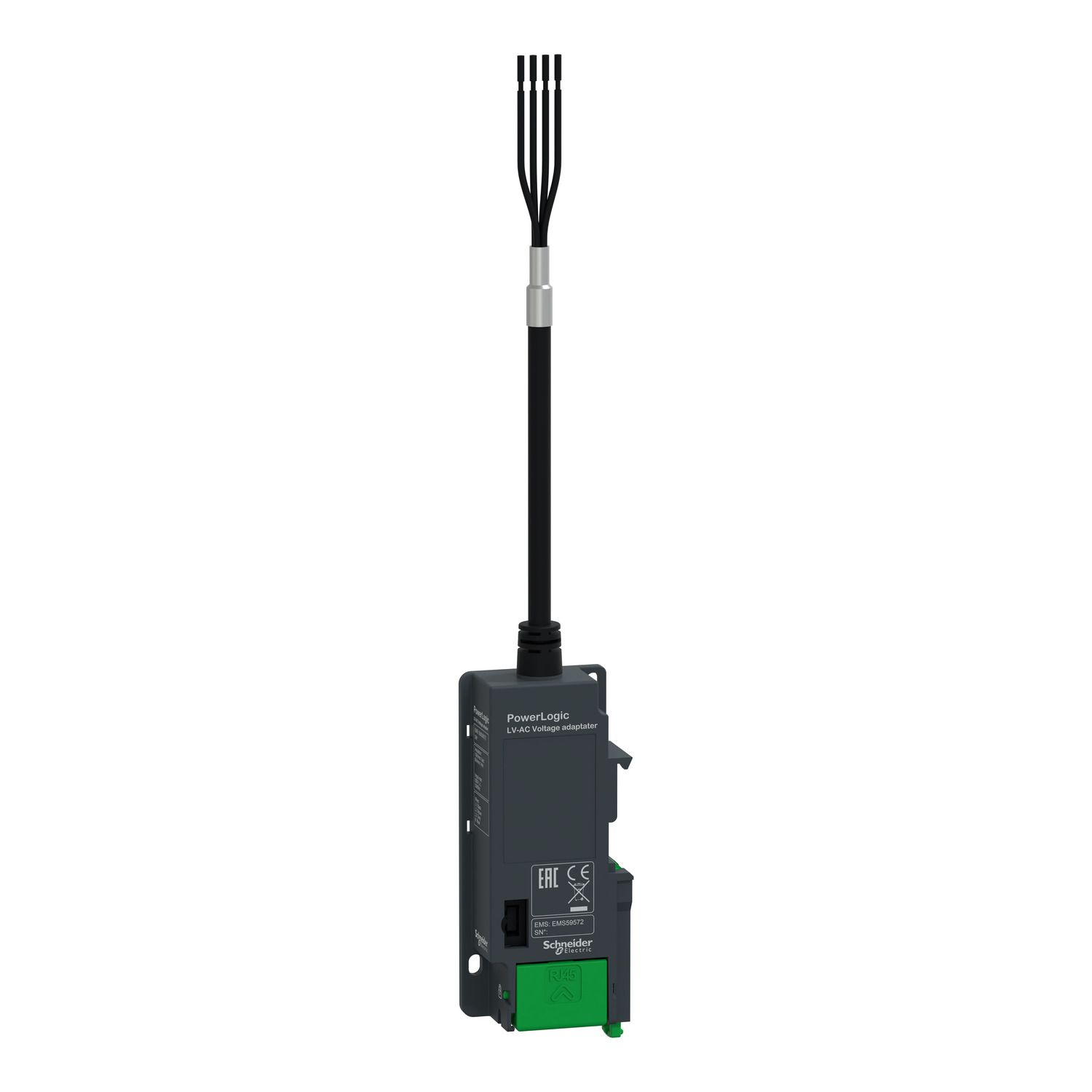

This adaptor Easergy T300 is required for voltage sensor used with SC150 module. The Un rated voltage is 110 to 240 Kv. The input voltage Phase-to-phase 38VAC to 400VAC and 22 VAC to 240 VAC for Phase-to-neutral. It include 4 wires inputs, and RJ45 communication port for output. The operating and storage temperature is -40°C to + 85°C. Mechanical dimensions are 43 mm in height, 48 mm in width and 175 mm in length.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | voltage adaptor |
| Range of product | PowerLogic T300 |
| Complementary | |
| Rated voltage | 110-240 V (L-N) |
| Input voltage | 22...240 V AC (L-N), 38...400 V AC (L-L) |
| Overvoltage category | IV |
| Input voltage limits | 630 V (L-L) |
| Electrical connection | input: 4 wires 1-1 mm², output: connector RJ45 |
| Network frequency | 50/60 Hz |
| Environment | |
| Operating altitude | <= 3000 m |
| Width | 48 mm |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 95-95 % conforming to IEC 60068-2-30 |
| Ambient air temperature for storage | -40-85 °C |
| Net weight | 0.15 kg |
| Length | 175 mm |
| Environmental characteristic | salt mist: 200 h conforming to IEC 60068-2-11 |
| Mounting support | DIN rail |
| Ambient air temperature for operation | -40-85 °C |
| Height | 43 mm |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Product certifications | CE |
