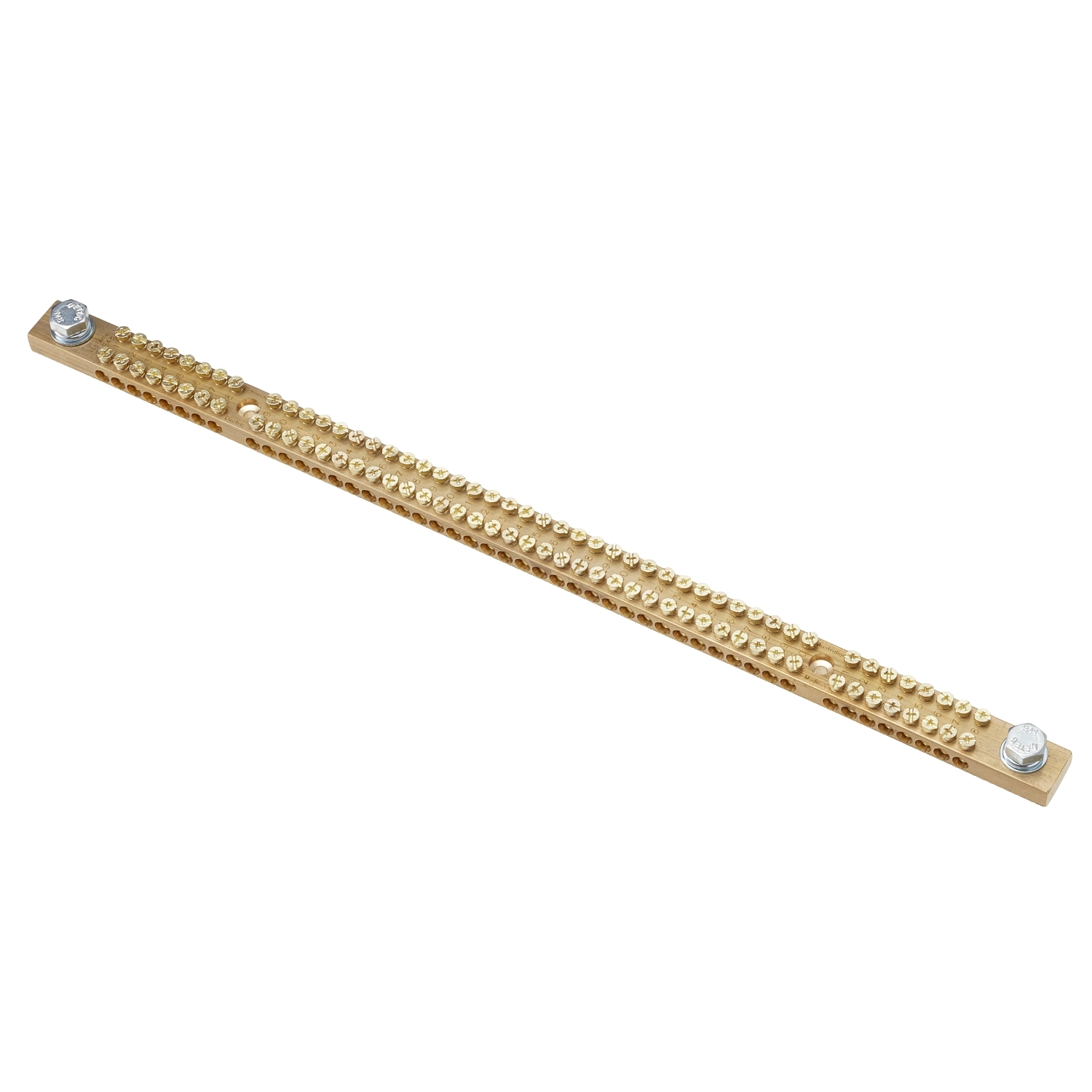

Earth and Neutral Bar with double screw terminals compatibility with Acti 9 distribution board. Screw and Earth/neutral terminal block provided. Screw terminals 2 x M8, 48 x diameter: 6 mm tunnels 16 mm². It is compliant to AS/NZS 3000:2018,AS/NZS 5112:2015.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | Acti9 |
| Product or component type | earth neutral terminal block |
| Accessory / separate part category | earthing accessory |
| Range of product | Acti9 |
| Complementary | |
| [Ie] rated operational current | 165 A |
| Material | brass |
| Connections - terminals | screw terminals - 2 x M8 48 x diameter: 6 mm tunnels 16 mm² |
| Number of ways | 48 ways |
| Range compatibility | Acti 9 distribution board |
| Provided equipment | earth/neutral terminal block, screw |
| Environment | |
| Standards | AS/NZS 5112:2015, AS/NZS 3000:2018 |
