Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Web server | class B30 |
| Concept | Transparent Ready |
| Web services | Data Editor (via PC terminal), rack viewer, diagnostics via predefined web pages |
| Communication service | FDR server, Modbus TCP messaging, I/O scanning, Global Data, bandwidth management, SNMP network management |
| Range of product | Modicon Quantum automation platform |
| Transmission rate | 10/100 Mbit/s |
| Communication port protocol | Ethernet Modbus TCP/IP |

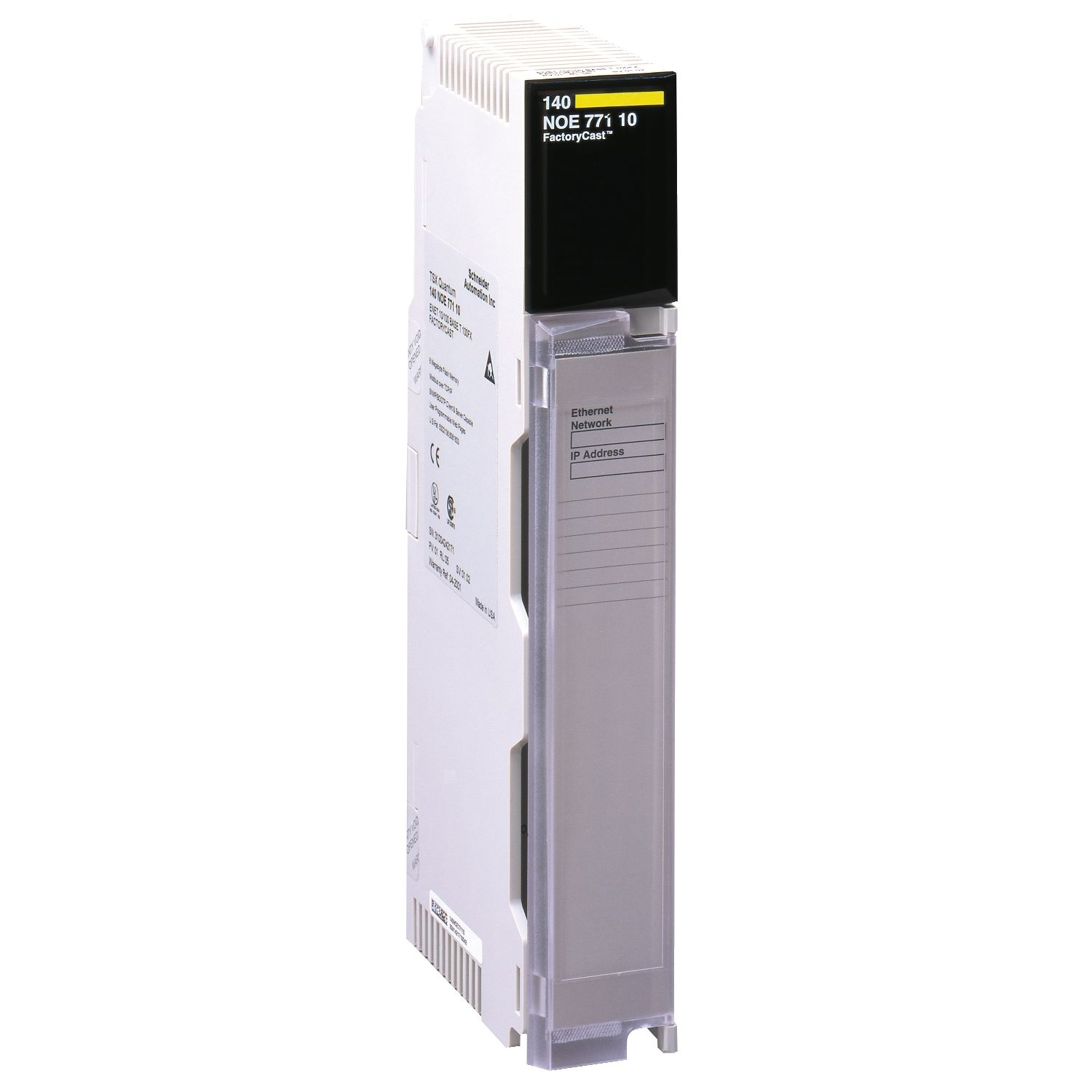

| Product or component type | Ethernet network TCP/IP module |
| Physical interface | RJ45 - 10BASE-T/100BASE-TX twisted pair, MT/RJ - 100BASE-FX fiber optic |
| Complementary | |
| Redundancy | yes hot standby redundant architecture |
| Module format | standard |
| Marking | CE |
| Local signalling | 1 LED for rack operational (Active), 1 LED for network active (Link), 1 LED for module ready (Ready), 1 LED for full-duplex mode (Fduplex), 1 LED for Ethernet network status (RUN), 1 LED for Ethernet module fault (Fault), 1 LED for download mode (Kernel), 1 LED for collision detection (Coll), 1 LED for transmission/reception activity (TxAct/RxAct), 1 LED for 10 Mbps or 100 Mbps data rate (10 MB/100 MB) |
| Net weight | 0.345 kg |
| Current consumption | 750 mA at 5 V DC |
| Supply | via the power supply of the rack |
| Environment | |
| IP degree of protection | IP20 |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | <= 4500 m |
| Standards | FM Class 1 Division 2, CSA C22.2 No 142 |
| Product certifications | UL 508, cUL |
