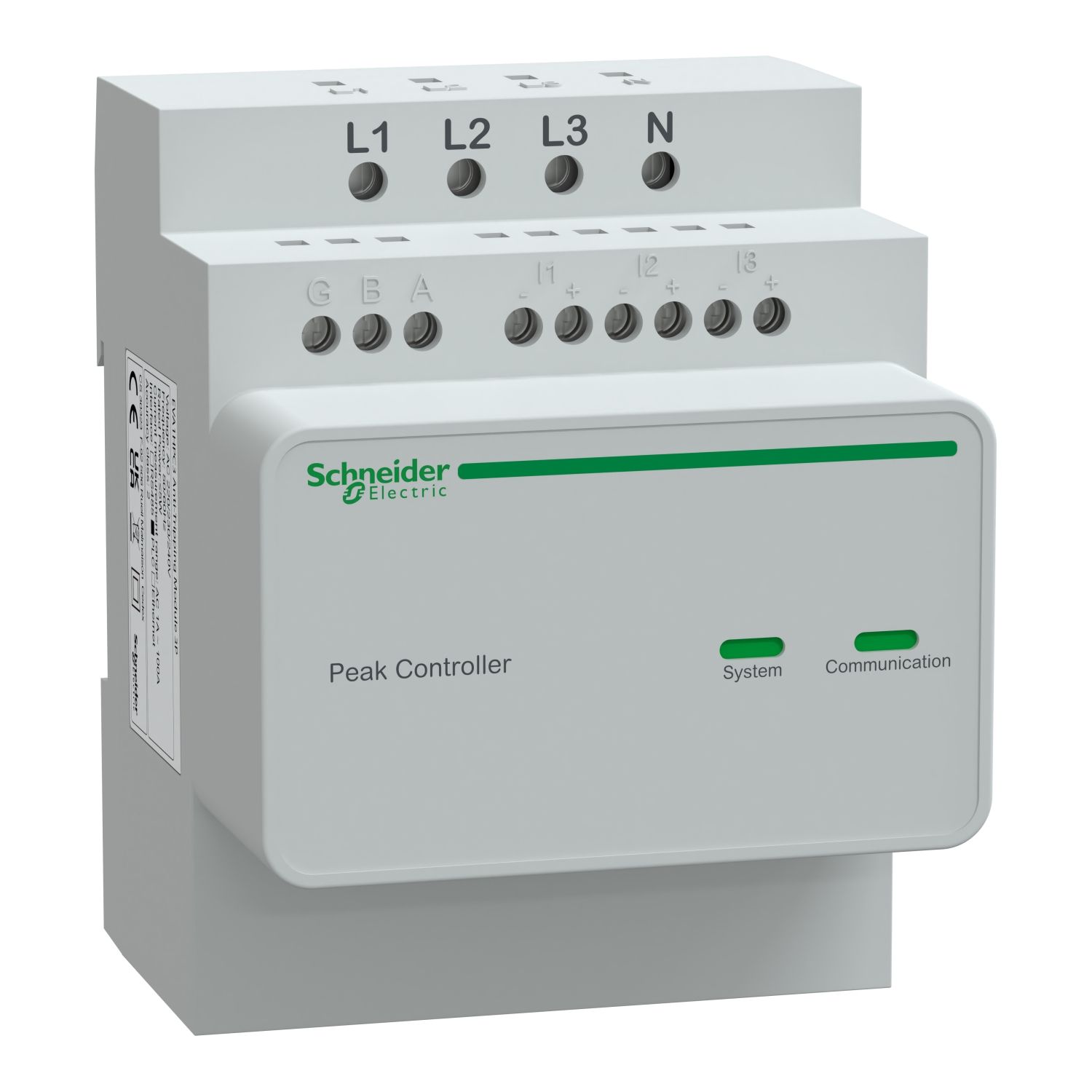

This EVlink Home accessory is a load-shedder used as an anti-tripping system to complement the charging station. It is used in three-phase network. It allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of loads in the house. The dimensions are (W) 72mm x (H) 89mm x (D) 75mm. Its product weight is 180g. Its color is white. It is made of plastic.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | EVlink |
| Material | plastic |
| Product or component type | load-shedder |
| Complementary | |
| Depth | 75 mm |
| Width | 89 mm |
| Colour | white |
| Quantity per set | set of 1 |
| Settings operating mode | manual |
| [Us] rated supply voltage | 220...230 V AC 50/60 Hz +/- 10 % |
| Connectivity to devices | PLC |
| Local signalling | 1 green LED, function: embedded communication status, 1 red LED, function: fault indication, 1 green LED, function: control process |
| Net weight | 180 g |
| Network number of phases | three phase |
| Condition of use | indoor |
| Power consumption in W | 5 W |
| Power supply output current | 50-50 A, 40-40 A, 32-32 A, 25-25 A, 20-20 A, 16-16 A |
| Standards | EN 61326-1:2013, EN 61010-1:2010 |
| Range compatibility | EVlink EVlink Home |
| Mounting support | 35 mm DIN rail |
| Height | 72 mm |
| Environment | |
| Operating altitude | 0...2000 m |
| Overvoltage category | III |
| Ambient air temperature for storage | -40-85 °C |
| Relative humidity | 5-95 % |
| Pollution degree | 2 |
| Ambient air temperature for operation | -30-50 °C |
