Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Poles description | 1P + N for control circuit, 3P + N for power circuit |
| Device short name | EVP2 |
| Socket outlet type | 2 x T2S |
| Socket-outlet type | right side: T2 with shutter / silver plated contacts |
| Maximum supply current | 32 A for T2 with shutter |
| Mounting mode | floor-standing, wall-mounted |
| Access control system | badge RFID conforming to ISO/IEC 15693, badge RFID conforming to ISO/IEC 14443 |
| Nominal output power | 22 kW for T2 with shutter |
| Range | EVlink |

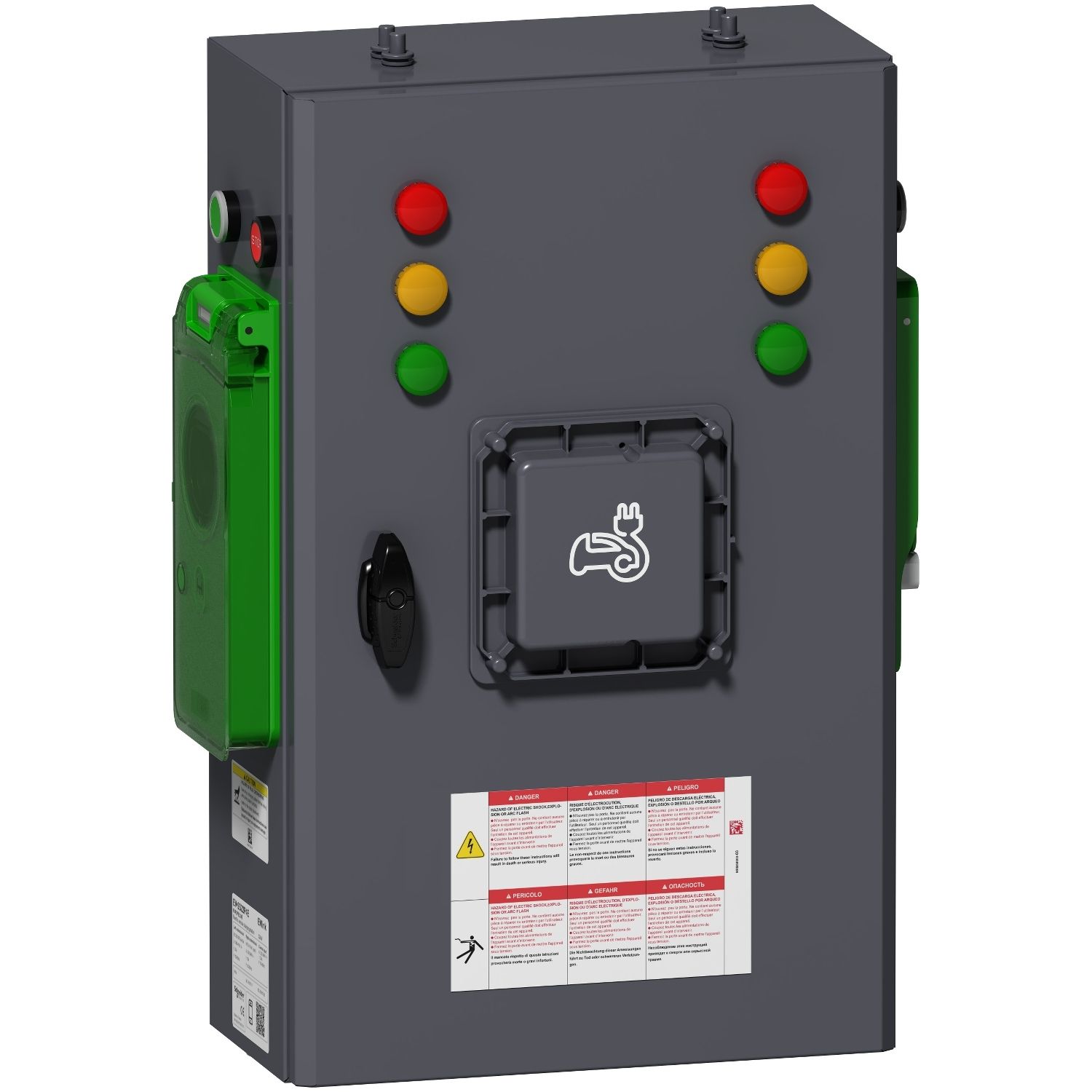

| Product name | EVlink parking |
| Product or component type | enclosure |
| Earthing system | TT, TN, IT |
| Socket number | 2 |
| Range compatibility | EVlink EVlink parking EVW2 charging station, EVlink EVlink parking EVF2 charging station |
| Offer type | standard |
| [Us] rated supply voltage | 380...415 V AC 50/60 Hz power circuit, 230 V AC 50/60 Hz control circuit |
| Complementary | |
| Web server | embedded |
| Depth | 206 mm |
| Width | 400 mm |
| Colour | grey (RAL 7016) |
| Ethernet service | configuration via web server |
| Control type | 2 green illuminated push-button, function: start/unlock flap, 2 red push-button, function: stop |
| Net weight | 20 kg |
| Local signalling | not operational: 2 LED (red) on front, reserved: 2 LED (orange) on front, available: 2 LED (green) on front, on charge: 2 LED (green) (flashing) on side |
| Height | 625 mm |
| Environment | |
| Operating altitude | 0...2000 m conforming to IEC 61851-22 |
| IK degree of protection | IK10 socket-outlet conforming to IEC 61851-22, IK10 charging station conforming to IEC 61851-22 |
| Ambient air temperature for storage | -40-80 °C |
| Relative humidity | 0-95 % |
| IP degree of protection | IP54 on load conforming to IEC 61851-1, IP54 off load conforming to IEC 61851-1 |
| Ambient air temperature for operation | -25-50 °C conforming to IEC 61851-22 |
