Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Number of poles | 3 |
| Rated single capacitor bank-breaking current (Isb) | 400 A |
| Rated line-charging breaking current (Il) | 10 A |
| Rated peak withstand current (Ip) | 65 kA 60 Hz, 62.5 kA 50 Hz |
| Rated short-duration power frequency withstand voltage (Ud) / Common value | 28 kV |
| Rated continuous current (Ir) | 1600 A |
| Rated cable-charging breaking current (Ic) | 25 A |
| Rated lightning impulse withstand voltage (Up) / Common value | 75 kV |
| Master range | Easy Series |
| Rated voltage (Ur) | 12 kV |
| Rated frequency (fr) | 50/60 Hz |
| Rated short-circuit making current | 65 kA 60 Hz, 62.5 kA 50 Hz |
| Rated duration of short-circuit (tk) | 3 s |
| Type of installation | indoor |
| Rated operating sequence | O - 0.3 s - CO - 15 s - CO, O - 0.3 s - CO - 3 min - CO, O - 3 min - CO - 3 min - CO |

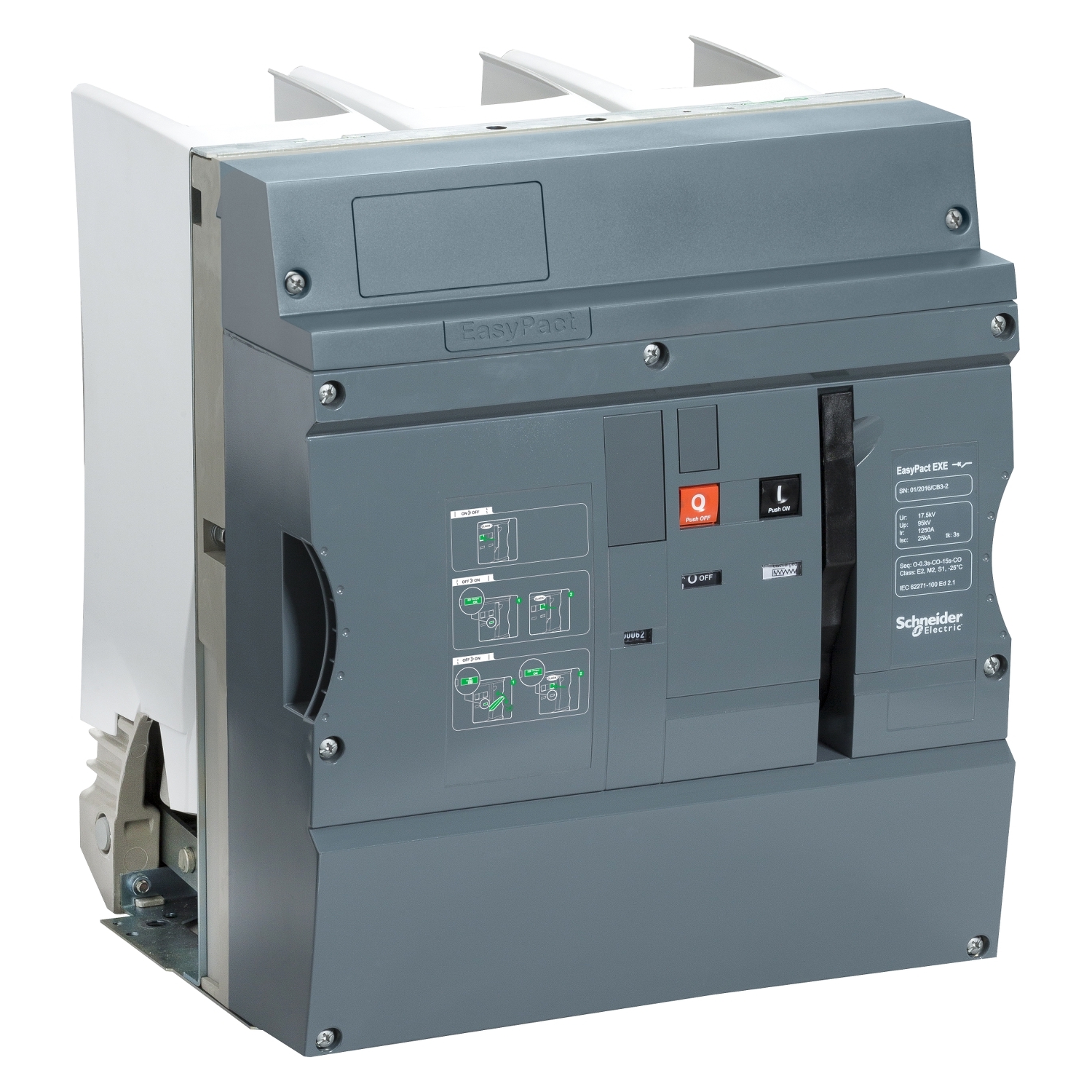

| Product name | EasyPact EXE |
| DC time constant (τ) | 45 ms |
| Product or component type | circuit breaker |
| Rated out-of-phase breaking current (Id) | 7.88 kA |
| Rated short-circuit breaking current (Isc) | 25 kA |
| Integration type | fixed |
| Variant | basic function |
| Standards | IEC 62271-100:2012 |
| Switching device | circuit breaker |
| Pole type | open |
| Network type | AC |
| Rated short-time withstand current (Ik) | 25 kA |
| Range of product | EasyPact |
| Rated first pole-to-clear factor (kpp) | 1.5 |
| DC component | 30 % |
| Breaking technology | vacuum |
| Complementary | |
| Motor charging time | <= 7 s |
| Depth | 429 mm |
| Width | 550 mm |
| Operating time | < 71 ms closing time, < 66 ms break-time, < 50 ms opening time |
| Classification for the connection to the network | S1 |
| Classification for number of mechanical operations | M2 |
| Number of mechanical operations | 10000 operating cycles |
| Clearance in air to earth | 140 mm |
| Mass | 65 kg |
| Classification for electrical endurance | E2 |
| Upper lower connection distance | 270 mm |
| Phase distance | 185 mm |
| Number of operations at short-circuit breaking current | 50 |
| Classification for capacitive currents | C2 |
| Auxiliary contact composition | 4 NO + 4 NC |
| Height | 527 mm |
| Environment | |
| Operating altitude | 0...1000 m |
| Humidity conditions | average relative humidity over 24 h <= 95 %, average relative humidity over 1 month <= 90 % |
| Ambient air temperature for storage | -25-55 °C |
| Ambient air temperature for operation | -25-40 °C |
| Product certifications | ASEFA |
