Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

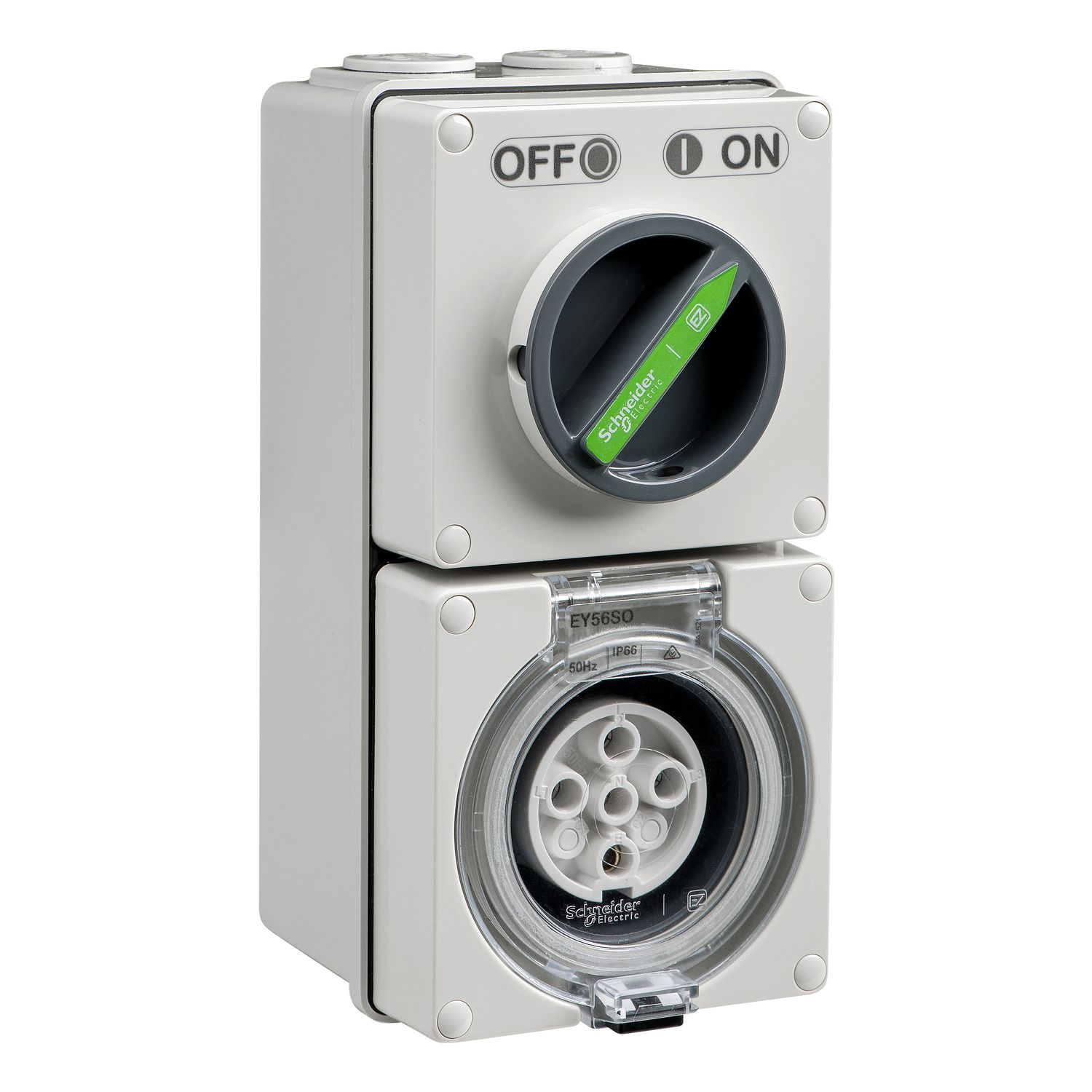

| Device short name | EY56C510 |
| Plug, socket category | low voltage |
| Poles description | 3P + N + E |
| Control type | rotary knob |
| Product name | Easy56 |
| Product or component type | switch and socket-outlet |
| Outlet standard deviation | Australian/New Zealand |
| Network type | AC |
| Rotary handle padlocking | 2 padlocks 8-8 mm |
| Complementary | |
| [Ue] rated operational voltage | 500 V |
| Depth | 101 mm |
| Market segment | industry, utility, small commercial |
| Width | 101 mm |
| Colour | rotary handle: dark grey, body: grey (RAL 7035) |
| Protection type | without protection |
| [In] rated current | 10 A |
| Cable cross section | 1-16 mm² |
| Cable entry number | 1 x M32, 2 x M25 |
| Mounting mode | surface mounted |
| Net weight | 0.82 kg |
| Material | polycarbonate |
| Shape of pin | tubular |
| Plug, socket, control station shape | straight |
| Contacts material | pins: brass |
| Pin number | 5 pins |
| Height | 203 mm |
| Connections - terminals | screw terminals |
| Targeted country | Australia, New Zealand |
| Network frequency | 50 Hz |
| Environment | |
| Ambient air temperature for storage | -25-75 °C |
| IP degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25-75 °C |
| Standards | AS/NZS 3133, AS/NZS 3123 |
