Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | EY56P432 |
| Plug, socket category | low voltage |
| Poles description | 3P + E |

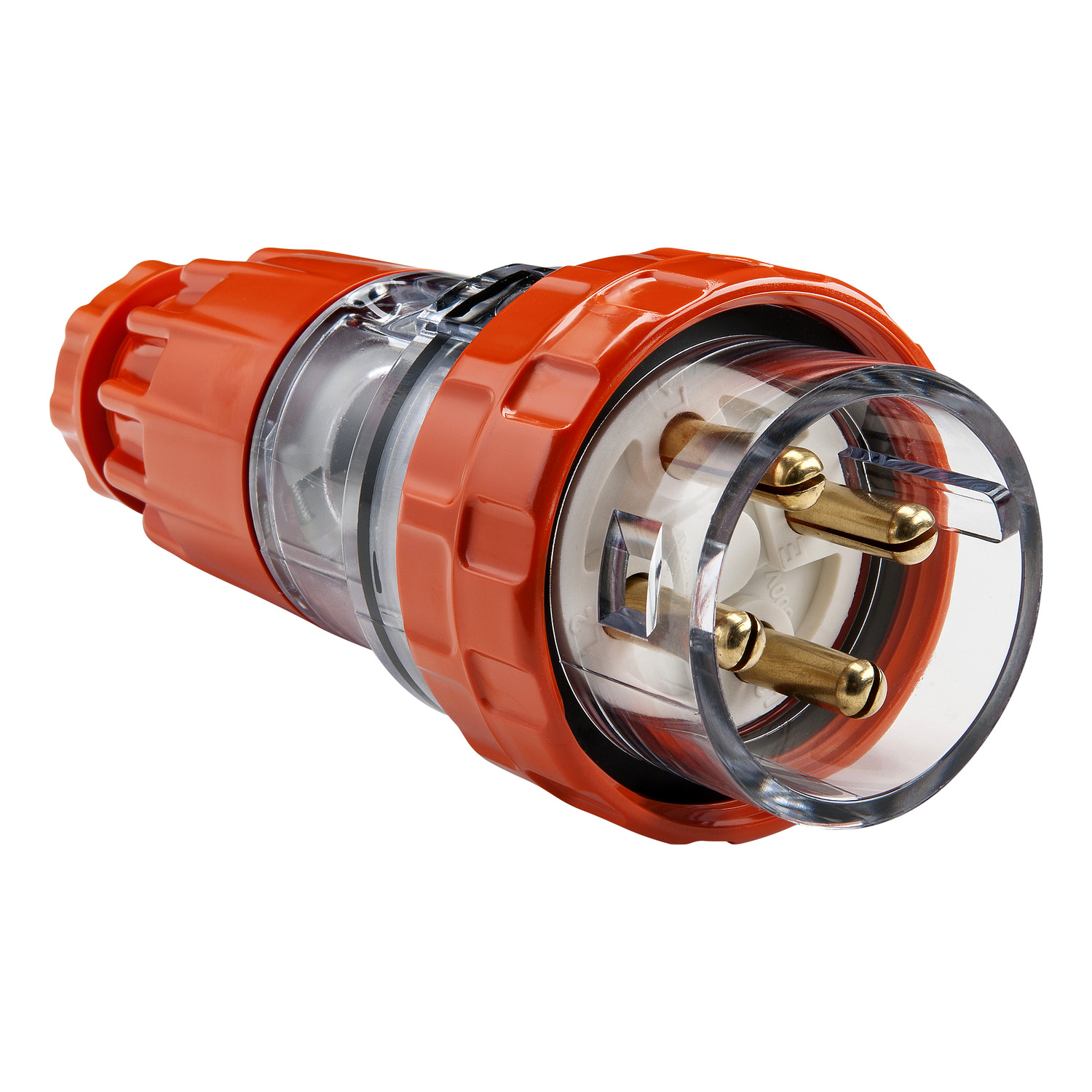

| Product name | Easy56 |
| Product or component type | plug |
| Outlet standard deviation | Australian/New Zealand |
| Shape of pin | tubular |
| Pin number | 4 pins |
| Complementary | |
| [Ue] rated operational voltage | 500 V |
| Cable outer diameter | 11-29.5 mm |
| Depth | 176 mm |
| Market segment | industry, utility, small commercial |
| Width | 78 mm |
| Colour | body: clear, plug: orange (RAL 2004) |
| [In] rated current | 32 A |
| Cable entry | cable gland |
| Material | polycarbonate: housing |
| Cable cross section | 4-16 mm² |
| Wire stripping length | 10-65 mm |
| Net weight | 0.42 kg |
| Plug, socket, control station shape | straight |
| Contacts material | pins: brass |
| Network type | AC |
| Height | 78 mm |
| Connections - terminals | screw terminals |
| Targeted country | New Zealand, Australia |
| Network frequency | 50 Hz |
| Environment | |
| Ambient air temperature for storage | -25-75 °C |
| IP degree of protection | IP66 conforming to AS 60529 |
| Standards | AS/NZS 3123 |
| Ambient air temperature for operation | -25-75 °C |
