Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

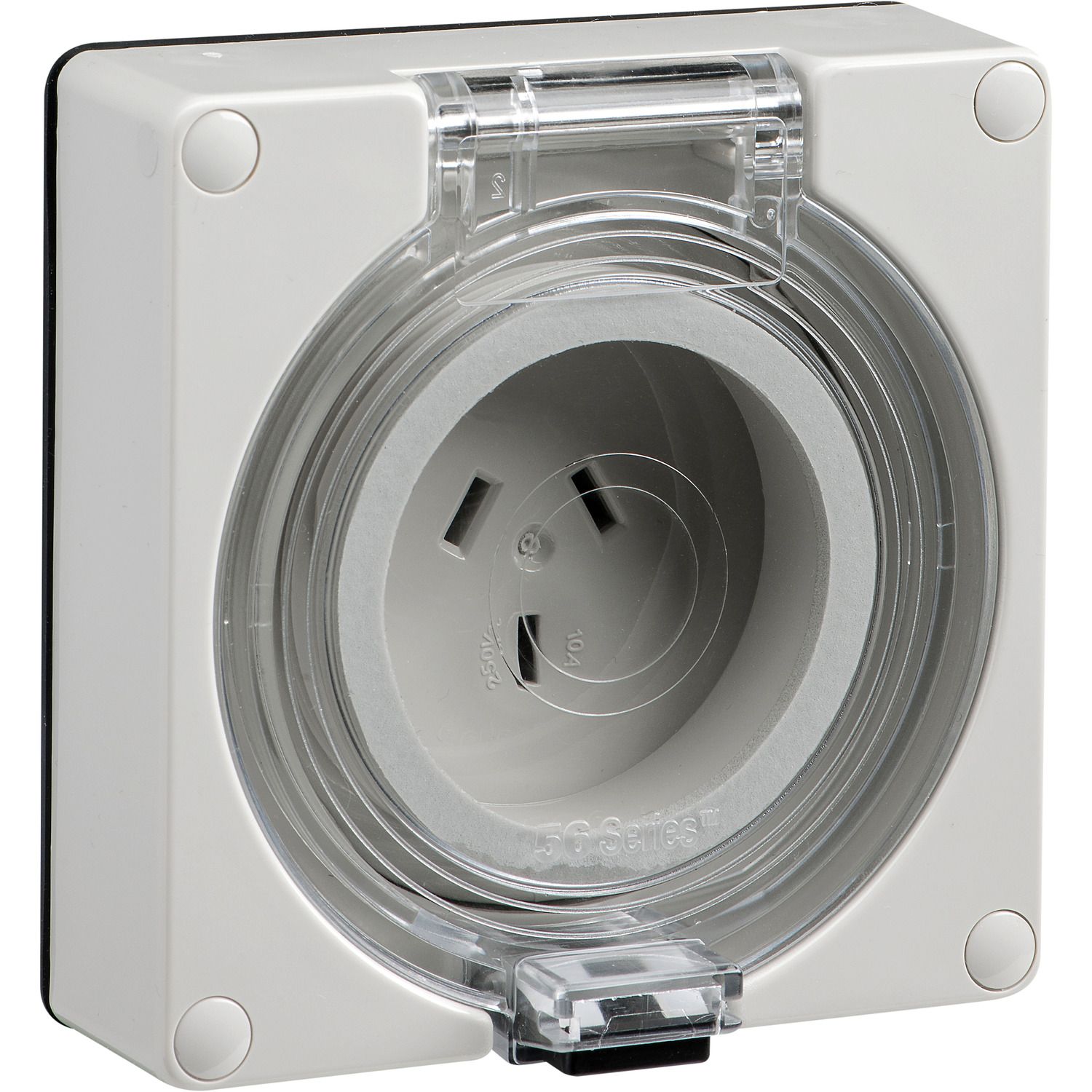

| Device short name | EY56SO310LE |
| Plug, socket category | low voltage |
| Poles description | 1P + N + E |
| Product name | Easy56 |
| Product or component type | socket-outlet |
| Outlet standard deviation | Australian/New Zealand |
| Network type | AC |
| Complementary | |
| [Ue] rated operational voltage | 250 V |
| Depth | 65 mm |
| Market segment | utility, industry, small commercial |
| Width | 101 mm |
| Colour | grey (RAL 7035) |
| [In] rated current | 10 A |
| Material | polycarbonate: cover |
| Mounting mode | surface mounted |
| Wire stripping length | 10 mm |
| Net weight | 0.216 kg |
| Shape of pin | flat |
| Plug, socket, control station shape | straight |
| Contacts material | pins: phosphor bronze |
| Pin number | 3 pins |
| Height | 101 mm |
| Targeted country | Australia, New Zealand |
| Connections - terminals | screw terminals 1.5-6 mm² rigid or stranded cable |
| Network frequency | 50 Hz |
| Environment | |
| Quality labels | RCM |
| Ambient air temperature for storage | -25-75 °C |
| IP degree of protection | IP66 conforming to AS 60529 |
| Standards | AS/NZS 3112 |
| Ambient air temperature for operation | -25-75 °C |
