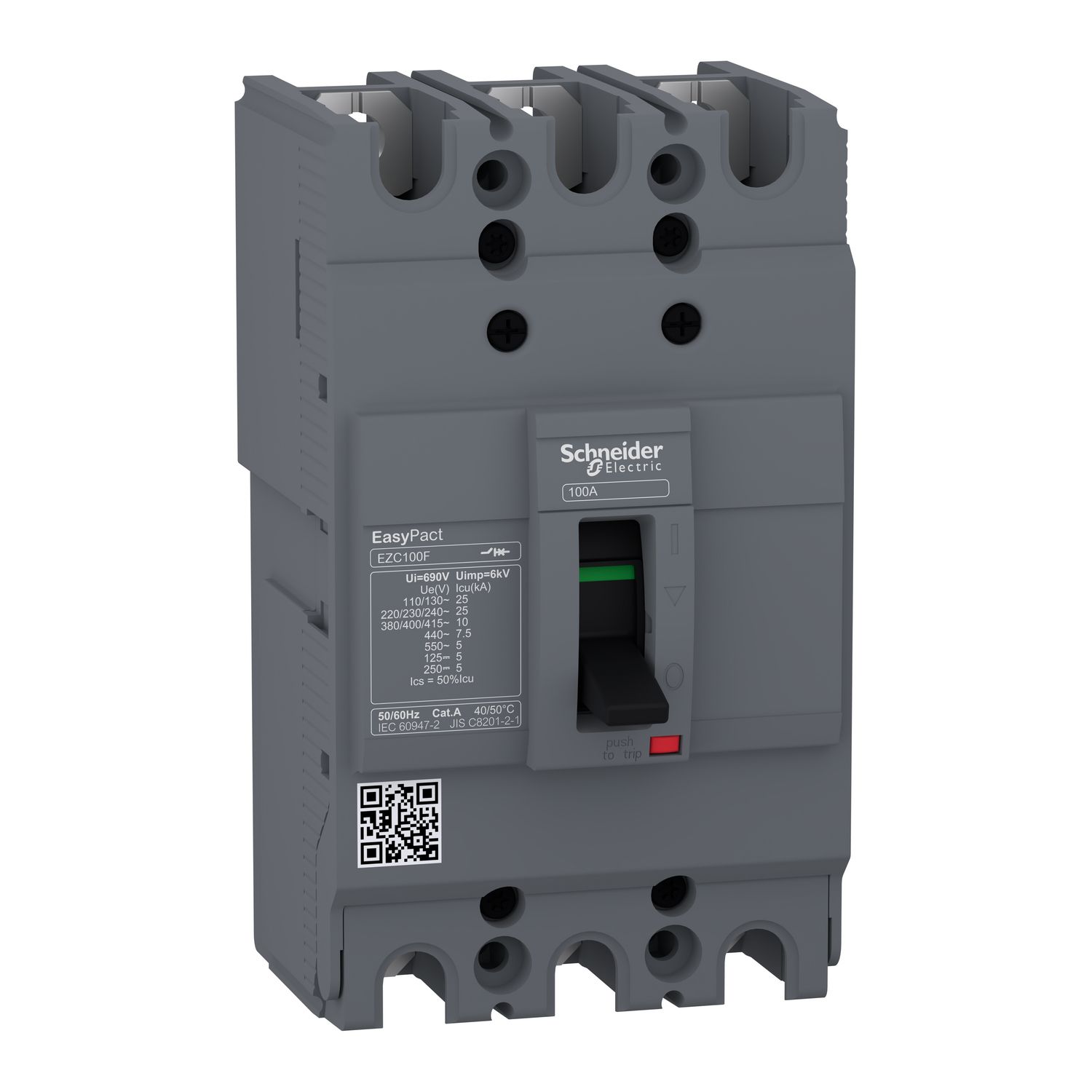

EasyPact EZC100F is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 10kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 100A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC100F is compliant with international standards (IEC 60947, UL 508) and marine certifications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | Easypact EZC100F |
| Device application | distribution |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Protection type | overload protection, short-circuit protection |
| Trip unit rating | 100-100 A at 50 °C |
| Suitability for isolation | yes conforming to IEC 60947-2 |
| Breaking capacity | 7.5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA Icu at 250 V DC 2P conforming to IEC 60947-2, 5 kA Icu at 125 V DC 1P conforming to IEC 60947-2, 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2 |
| Pollution degree | 3 conforming to IEC 947-1, 3 conforming to IEC 60664-1 |
| Range | EasyPact |
| Protected poles description | 3t |
| Range of product | EasyPact |
| Trip unit name | TM-D |
| [Ics] rated service breaking capacity | 3.75 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2, 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2, 2.5 kA at 250 V DC conforming to IEC 60947-2, 2.5 kA at 125 V DC conforming to IEC 60947-2, 12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2, 12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2 |
| Circuit breaker name | Easypact EZC100F |
| Trip unit technology | thermal-magnetic |
| Poles description | 3P |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Utilisation category | category A |
| Product name | EasyPact EZC |
| Product or component type | circuit breaker |
| Breaking capacity code | F |
| Network type | AC, DC |
| [Ue] rated operational voltage | 250 V DC conforming to IEC 60947-2, 550 V AC 50/60 Hz conforming to IEC 60947-2 |
| [In] rated current | 100 A at 40 °C |
| Network frequency | 50/60 Hz |
| Complementary | |
| Compatibility code | EZC100 |
| Mechanical durability | 8500 cycles |
| Electrical durability | category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Neutral protection setting | without protection |
| Mounting mode | fixed |
| Upside connection | front |
| Control type | toggle |
| Downside connection | front |
| Earth-leakage protection | without |
| Connection pitch | 25 mm |
| Height | 130 mm |
| Depth | 60 mm |
| Market segment | small commercial |
| Width | 75 mm |
| Local signalling | positive contact indication |
| Mounting support | backplate |
| Environment | |
| Ambient air temperature for storage | -35-85 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Standards | EN/IEC 60947-2, GB/T 14048.2, JIS C8201-2-2, EN/IEC 60947-1 |
