Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue output number | 4 |
| Splitter box type | compact |
| Range of product | Advantys FTM |
| Input/output number | 4 |

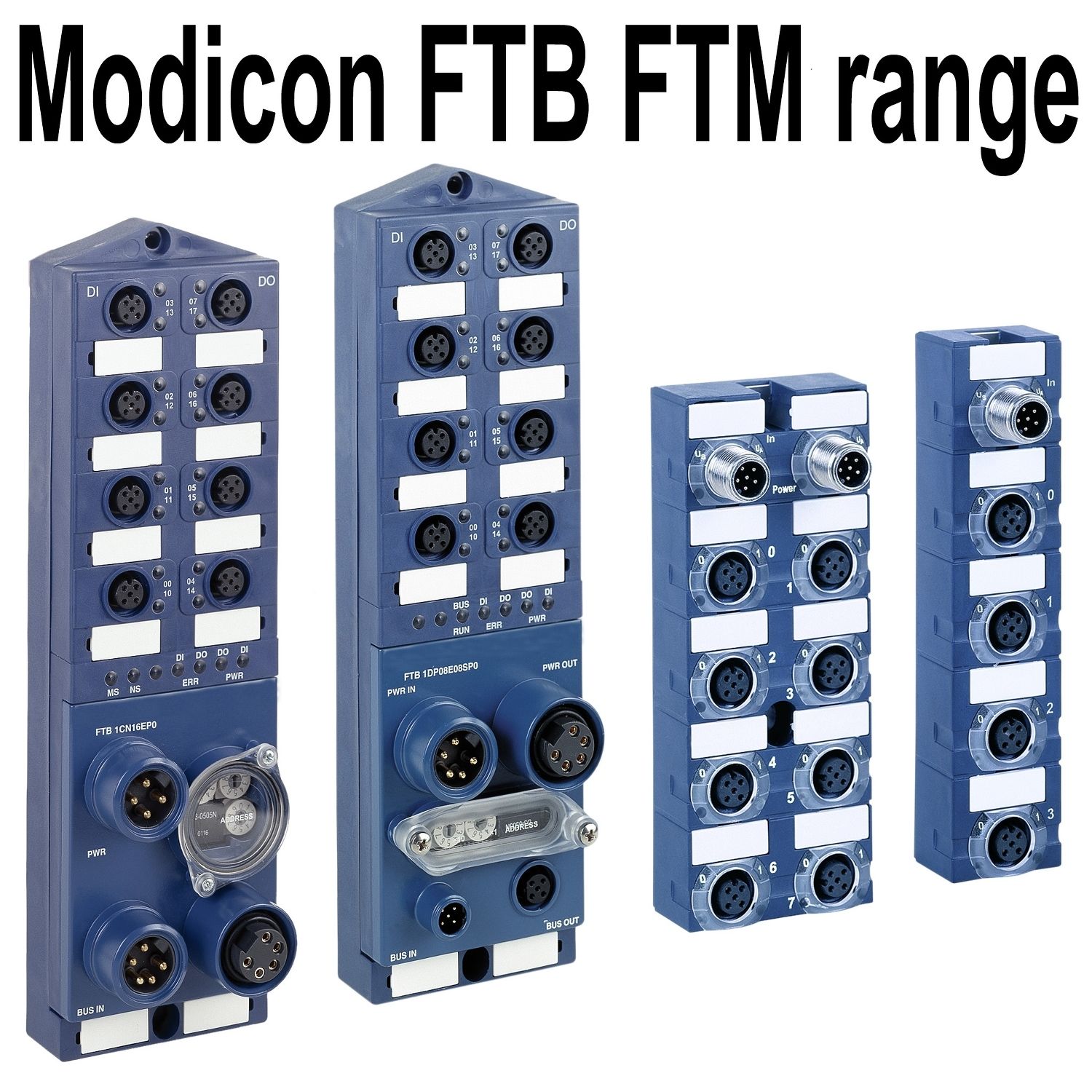

| Product or component type | IP67 modular I/O splitter box |
| Analogue output range | 0...20 mA, 4...20 mA |
| Electrical connection | 4 female connectors M12 (actuator), 1 male connector M12 (bus module or previous module) |
| Complementary | |
| Minimum output impedance | 0 Ohm |
| Operating position | any position |
| Maximum supply current | 4 A |
| Surge withstand | 0.5 kV power supply conforming to IEC 61000-4-5, 0.5 kV ground/PE conforming to IEC 61000-4-5, 1 kV signal conforming to IEC 61000-4-5, -1 kV signal conforming to IEC 61000-4-5 |
| Input filtering | 1 ms |
| Status LED | 1 LED per channel (yellow) channel status |
| Current per channel | 1.6 A |
| Maximum cable distance between devices | 30 m |
| Conversion time | 0...1 ms |
| Internal current consumption | 50 mA |
| Analogue output resolution | 12 bits |
| Net weight | 0.13 kg |
| Control threshold undervoltage | 0-18 V |
| Fixing mode | by 2 screws |
| [Ue] rated operational voltage | 24 V DC |
| Tightening torque | 1.5 N.m for M4 screw(s) |
| Maximum output impedance | 500 Ohm |
| Environment | |
| Resistance to fast transients | 2 kV (signal) conforming to IEC 61000-4-4, -2 kV (signal) conforming to IEC 61000-4-4, 2 kV (power supply) conforming to IEC 61000-4-4, -2 kV (power supply) conforming to IEC 61000-4-4 |
| IP degree of protection | IP67 |
| Resistance to electrostatic discharge | 8 kV in air conforming to IEC 61000-4-2, -8 kV in air conforming to IEC 61000-4-2, 4 kV in contact conforming to IEC 61000-4-2, -4 kV in contact conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -25-70 °C |
| Ambient air temperature for operation | 0-55 °C |
| Resistance to conducted disturbances | 10 V conforming to IEC 61000-4-6 |
| Operating altitude | 0...2000 m |
| Vibration resistance | 15 gn conforming to IEC 68-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 68-2-27, EA tests |
| Resistance to radiated fields | 10 V/m conforming to IEC 61000-4-3 |
| Product certifications | cULus |
