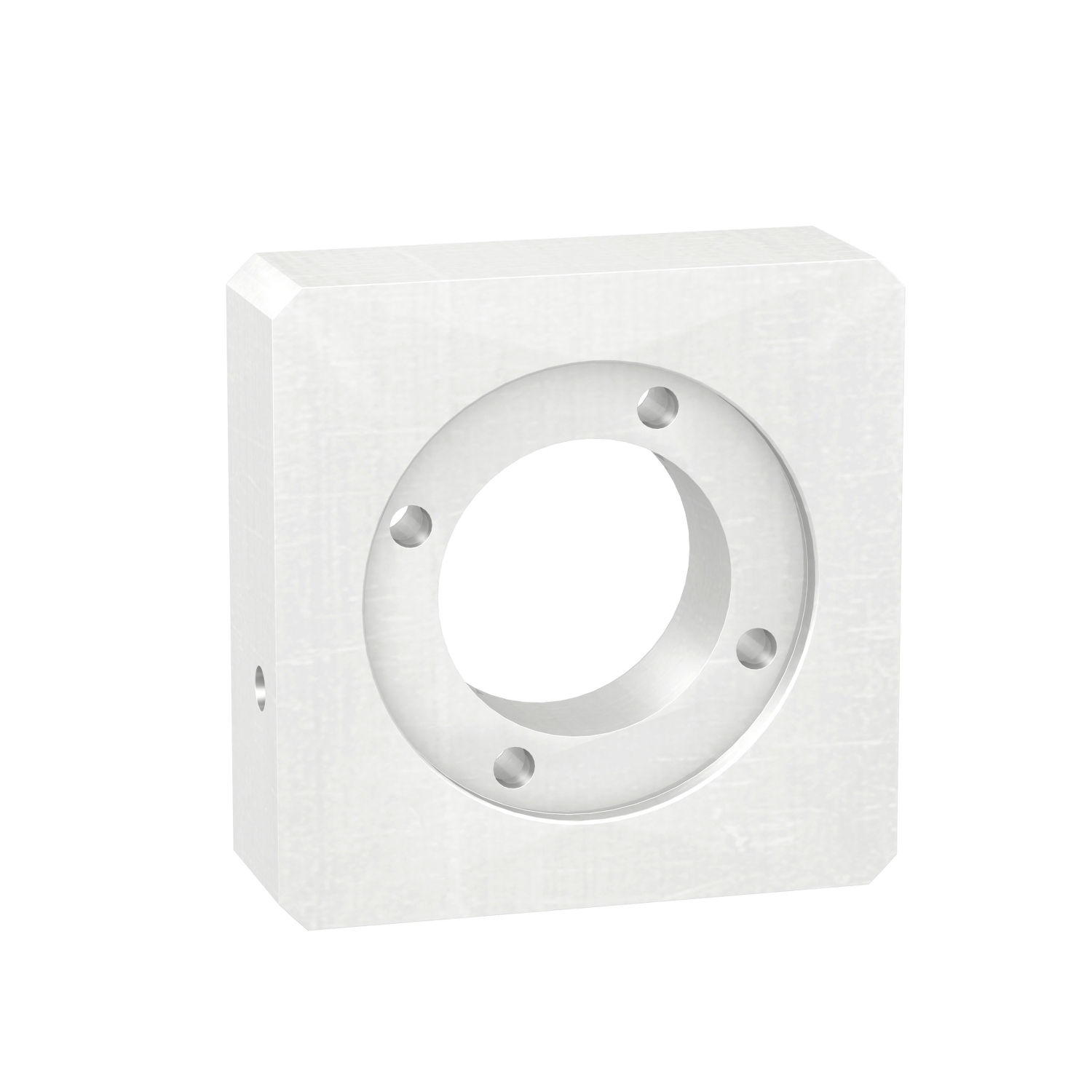

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This adaptation kit is for assembly motors and gearbox. The kit fits 80mm gearbox. This adaptation kit is for mounting servo motor and planetary gearbox. It composes with an adaptor plate, a shaft end adaptor, screws and bolts for mounting. It fits 70mm motor flange size. It weighs 0.45kg. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | for assembly motor and gearbox |
| Kit composition | a shaft end adaptor, an adaptor plate, screws and bolts for mounting |
| Device short name | GBK |
| Product compatibility | BMH, BSH, BMI, MH3, ILM, SH3 |
| Range compatibility | Lexium 52, Lexium 62, Lexium 62 ILM, Lexium 32, Lexium 32i |
| Gearbox external diameter | 80 mm |
| Product or component type | adaptation kit |
| Accessory / separate part category | adaptation accessory |
| Complementary | |
| Compatibility code | GBK |
| Motor flange size | 70 mm |
| Net weight | 0.45 kg |
| Length | 21.2 mm |
| Number of motor stacks | 1, 2 |
