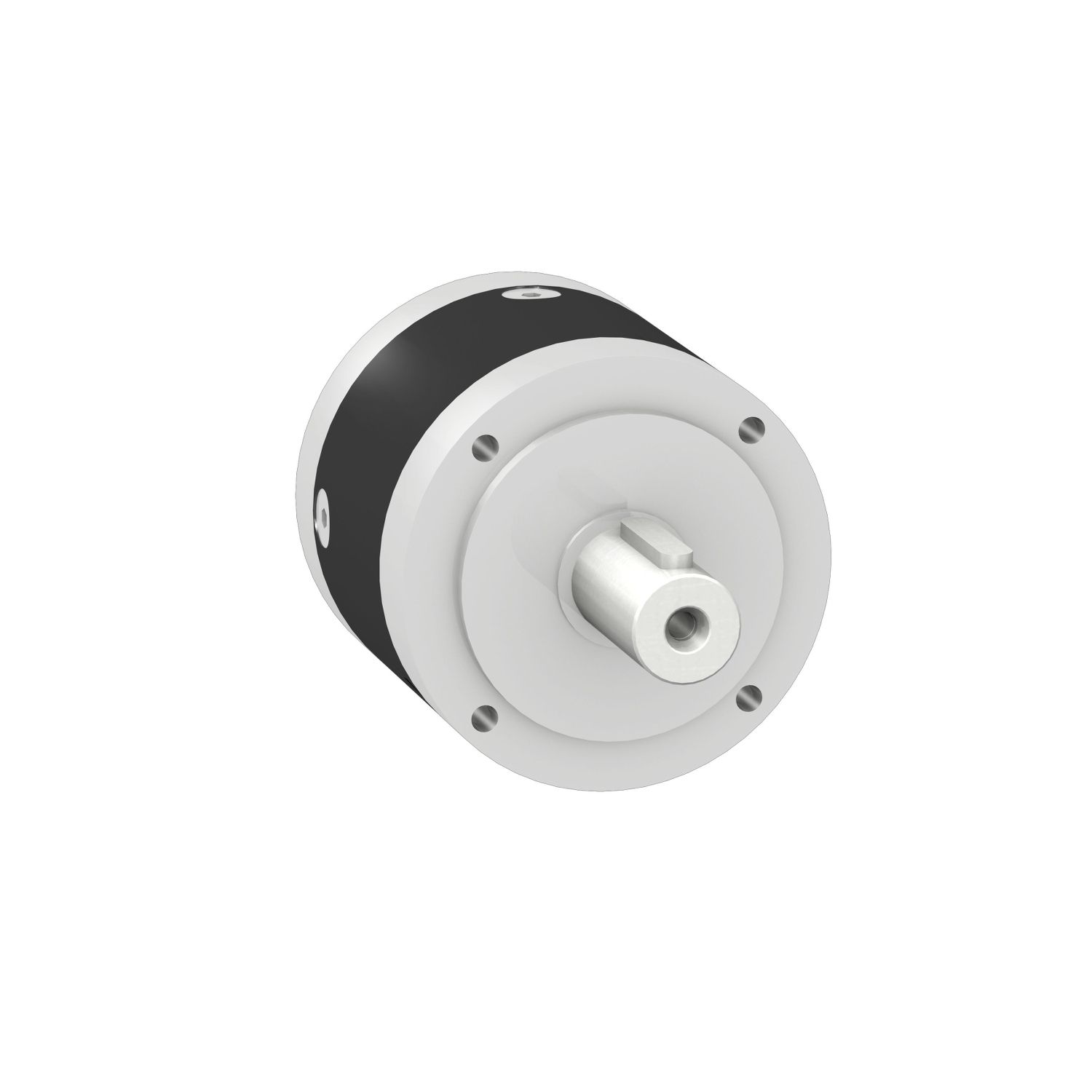

This product is part of the Lexium ILA, ILE, ILS range, an offer of Integrated drives for motion control. This planetary gearbox has straight teeth, lubricated for life. The gearbox external diameter is 80mm. This gearbox is to adapt speeds and torques of motors. This gearbox has a reduction ratio of 40/1, maximum axial force (Fa) of 1200N at 100RPM and continuous output torque of 110N.m at 100RPM at 30°C. It offers service life of about 30000h at 100RPM at 30°C. It is an IP54 rated product. The enclosure is made of black anodized aluminium. It weighs 2.6kg. It can be mounted in any position. Lexium-integrated drives are used to create decentralized motion control solutions in very compact units. Integrated Drives for motion control with stepper, servo or brushless DC motor.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GBX |
| Range compatibility | Lexium 52, Lexium 62, Lexium 62 ILM, Lexium 32, Lexium 28 |
| Gearbox external diameter | 80 mm |
| Gear box type | straight teeth |
| Product compatibility | ILM, MH3, SH3, BCH2 (80 mm, 1 motor stacks), BSH (70 mm, 1 motor stacks), BMH (70 mm, 1 motor stacks) |
| Product or component type | planetary gearbox |
| Reduction ratio | 40:1 |
| Complementary | |
| Maximum axial force Fa | 1200 N at 100 rpm, during 30000 hour at 30°C |
| Reduction ratio | 40 |
| Continuous output torque | 110 N.m at 100 rpm at 30 °C |
| Mounting position | any position |
| Housing material | black anodized aluminium |
| Additional information | lubricated for life |
| Compatibility code | GBX |
| Service life in hours | 30000 h at 100 rpm at 30 °C |
| Internal diameter | 19.0 mm |
| Maximum torsional backlash | 9 arc.min |
| Maximum output torque | 176 N.m at 100 rpm at 30 °C |
| Shaft material | C 45 |
| Net weight | 2.6 kg |
| Length | 89.5 mm |
| Shaft moment of inertia | 0.39 kg.cm² |
| Efficiency | 94 % |
| No load running torque | 0.1 N.m |
| Maximum radial force Fr | 650 N at 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C |
| Torsional rigidity | 6.5 N.m/arcmin |
| Housing colour | black |
| Environment | |
| IP degree of protection | shaft output: IP54 |
| Noise level | 60 dB at 1 m, no-load |
| Ambient air temperature for operation | -25-90 °C |
