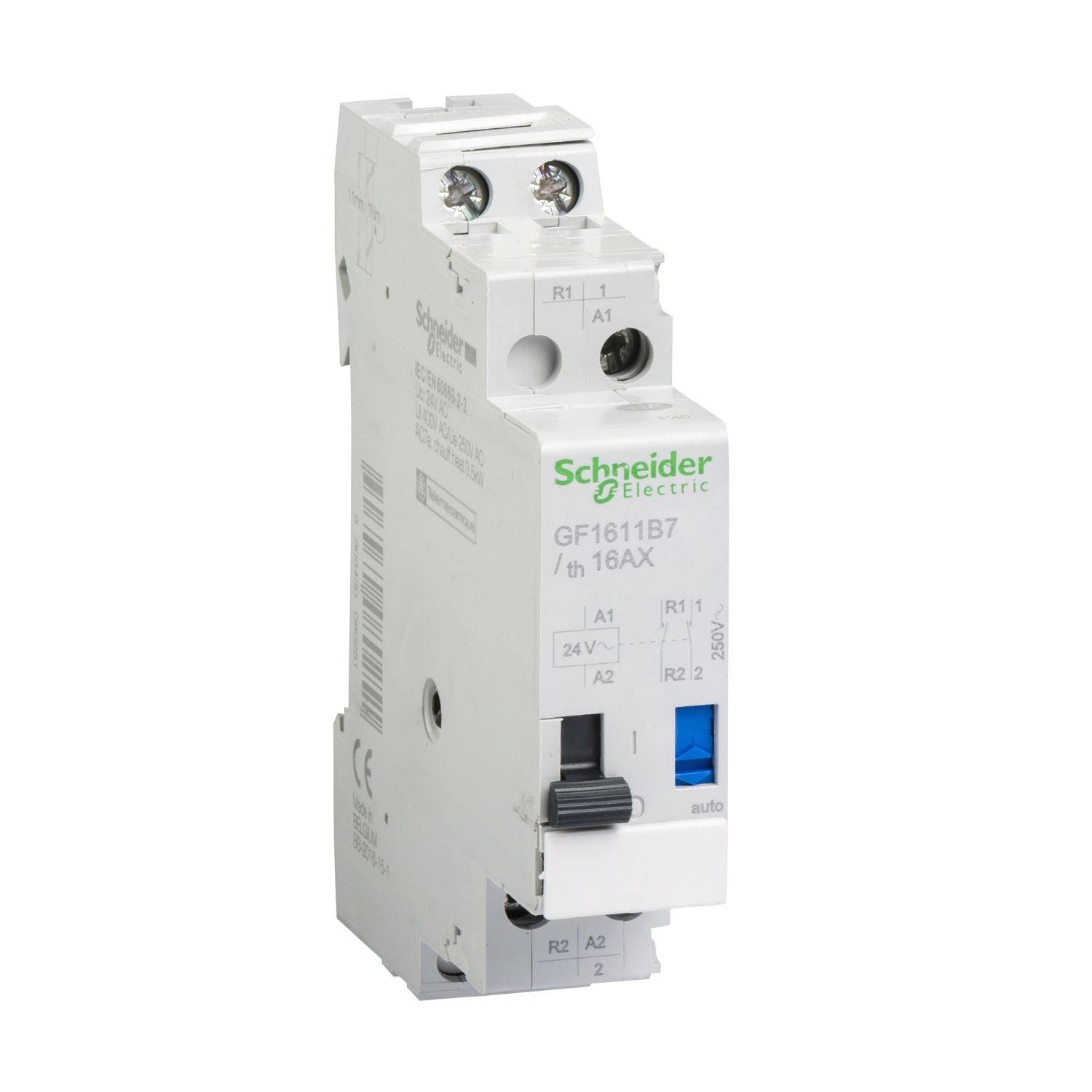

Impulse relay designed for TeSys GF. Rated Current 16A, 2P. with contact composition 1 NO + 1 NC. Rated Operational Voltage 250 V AC, 50/60 Hz AC-1. Impulse relay with control voltage of 24 V AC, 50/60 Hz.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GF16 |
| Operating position | +/- 90° to vertical plane |
| Poles description | 2P |
| [Ie] rated operational current | 16 A AC-1 |
| Mounting mode | clip-on |
| Utilisation category | AC-1 |
| Pole contact composition | 1 NO + 1 NC |
| Range | TeSys |
| Product name | TeSys GF |
| Product or component type | impulse relay |
| Control circuit type | AC at 50/60 Hz |
| Mounting support | 35 mm symmetrical DIN rail |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Permissible short-time rating | 96 A 40 °C 10 s, 48 A 40 °C 30 s, 320 A 40 °C 1 s |
| Complementary | |
| Depth | 64 mm |
| Tightening torque | power circuit: 0.8-0.8 N.m - on screw clamp terminals, control circuit: 0.8-0.8 N.m - on screw clamp terminals |
| Width | 18 mm |
| Operating time | 70 ms opening, 70 ms closing |
| Quantity per set | set of 12 |
| Control circuit voltage limits | 0.85...1.1 Uc 50 °C 50/60 Hz |
| Compatibility code | modular impulse relay |
| Mechanical durability | 1 Mcycles |
| [Ui] rated insulation voltage | 400 V conforming to VDE 0110, 400 V conforming to IEC 60947-5-1 |
| Electrical durability | 200000 cycles AC-21, 100000 cycles AC-22 |
| Maximum operating rate | 900 cyc/h |
| Impulse duration | >= 70 ms |
| Power dissipation per pole | 1 W |
| [Uimp] rated impulse withstand voltage | 4 kV in enclosure |
| Net weight | 0.11 kg |
| Connections - terminals | power circuit: screw clamp terminals 1 cable(s) 0.5-6 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 0.5-6 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 0.5-6 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm² solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm² flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm² flexible with cable end, power circuit: screw clamp terminals 2 cable(s) 0.5-4 mm² solid without cable end, power circuit: screw clamp terminals 2 cable(s) 0.5-4 mm² flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 0.5-4 mm² flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm² solid without cable end |
| 9 mm pitches | 2 |
| [Ith] conventional free air thermal current | 16 A (at 50 °C) |
| Average consumption | 19 VA AC 50 Hz at at Uc at 20 ºC |
| Average impedance | 4 mOhm at 50 Hz - Ith 16 A |
| Height | 81 mm |
| Environment | |
| Operating altitude | <= 2000 m without derating |
| IP degree of protection | IP20 conforming to VDE 0106, IP40 conforming to VDE 0106 (in enclosure) |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-80 °C |
| Standards | IEC 60669-2, NF C 61-112, IEC 60669-1 |
| Ambient air temperature for operation | -20-50 °C |
| Mechanical robustness | vibrations contactor closed: 4 Gn, 5...300 Hz, vibrations contactor open: 4 Gn, 5...300 Hz |
