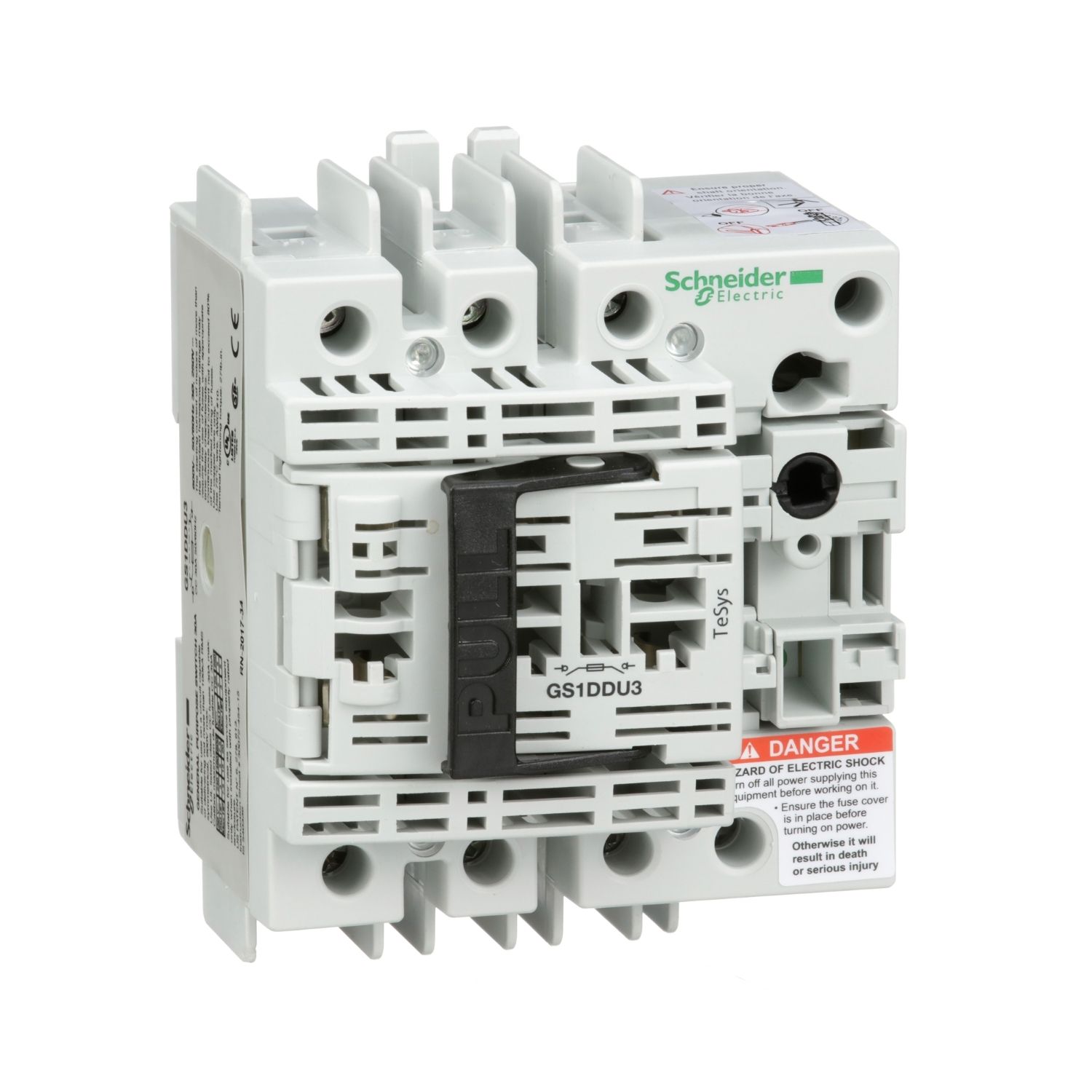

TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/800V, to be used with class CC fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH106 (to be ordered separately), or with an external front side mounting operating handle (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). UL/CSA certified.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GS1 DD |
| Device application | protection |
| Poles description | 3P |
| Fuse type | UL |
| [Ie] rated operational current | 30 A |
| Contacts type and composition | 3 NO |
| Range | TeSys |
| Design | compact |
| Product name | TeSys GS |
| Product or component type | switch-disconnector-fuse |
| Protected poles description | 3t |
| Network type | DC, AC |
| [Ith] conventional free air thermal current | 30 A (at 40 °C) |
| Fuse size | CC |
| Network frequency | 50/60 Hz |
| Complementary | |
| Rated operational power in W | 25 kW at 690 V, 18.5 kW at 500 V, 15 kW at 400 V |
| Tightening torque | power circuit: 3-3 N.m |
| Compatibility code | GS1 DD |
| Mechanical durability | 10000 cycles |
| Electrical durability | 6000 cycles |
| [Ui] rated insulation voltage | 690 V |
| Short-circuit withstand | 5.5 kA |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Connections - terminals | power circuit: lugs-ring terminals2-6 mm² |
| Mounting support | plate, rail |
| Type of operating handle | direct frontal, external frontal |
| Environment | |
| Depth | 83.5 mm |
| Width | 97 mm |
| Fire resistance | 960 °C body conforming to IEC 60695-2-1 |
| IP degree of protection | IP20 conforming to IEC 60529 (with terminal cover) |
| Ambient air temperature for storage | -40-80 °C |
| Net weight | 0.6 kg |
| Standards | CSA C22.2 No 5, UL 489 |
| Ambient air temperature for operation | -20-70 °C |
| Height | 116 mm |
| Product certifications | ASEFA, LOVAG, LROS (Lloyds register of shipping) |
