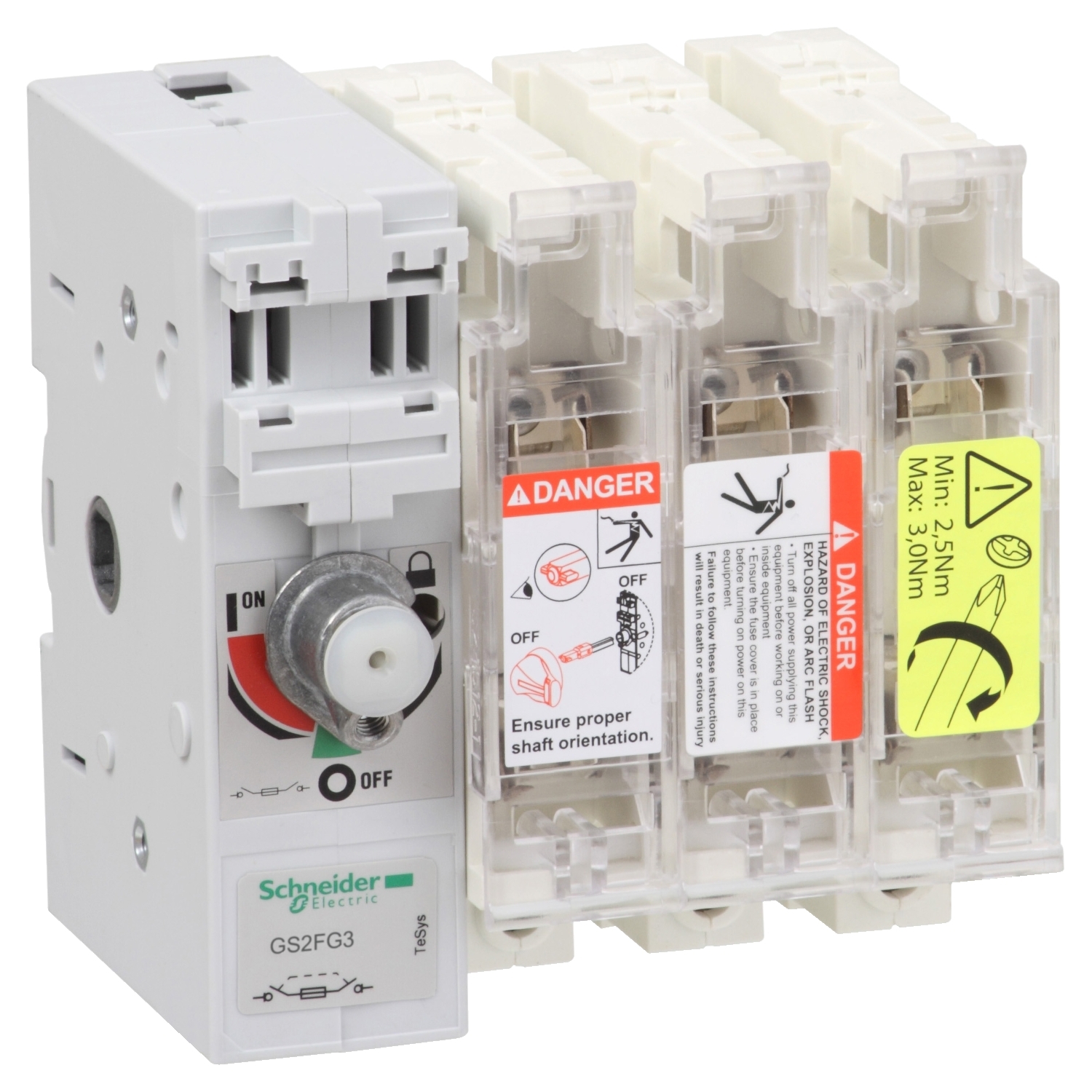

Switch disconnector fuse, TeSys GS, 3P, 50A fuse type NFC, size 14x51mm

Equipped with an External front side or right-hand side-mounted operators

Lockable with door interlock

To be used with NFC cylindrical fuse links

High short circuit performance up to 100 KA

Robust and compact handles

Effective protection thanks to fuse speed fusion

Manufacturer: Schneider Electric

SKU: GS2FG3

GTIN: 3389119410885

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $466.40 inc GST

Price: $185.11 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys GS fuse switch-disconnector, 3 poles (3P), 50A/750V, to be used with NFC cylindrical fuse links size 14x51mm up to 50A, for motor applications up to 25kW@400V AC-23. To be equipped with an external left-hand side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG 14x51mm cylindrical fuse links without strickers DF2EA, DF2EN and with strickers DF3EA, DF3EN are available (to be ordered separately). Multi standards certified (IEC, Marine).

Products specifications

Attribute name	Attribute value
Main
Device short name	GS2F
Poles description	3P
Fuse type	NFC
[Ie] rated operational current	50 A at 690 V AC-23B, 50 A at 690 V AC-23A, 50 A at 500 V AC-23B, 50 A at 500 V AC-23A, 50 A at 400 V AC-23B, 50 A at 400 V AC-23A, 40 A at 440 V 2 poles in series per phase DC-23B, 40 A at 440 V 2 poles in series per phase DC-23A
Contacts type and composition	3 NO
Range	TeSys
Product name	TeSys GS
Product or component type	switch-disconnector-fuse
Protected poles description	3t
Network type	AC, DC
[Ith] conventional free air thermal current	50 A (at 40 °C)
Fuse size	14 x 51 mm
Network frequency	50/60 Hz
Complementary
Breaking capacity	400 A at 400 V (AC-23B)
Rated operational power in W	33 kW at 500 V, 45 kW at 690 V, 25 kW at 400 V
Tightening torque	power circuit: 3.2-3.2 N.m
Compatibility code	GS2F
Mechanical durability	10000 cycles
Electrical durability	300 cycles DC-23B, 300 cycles AC-23B, 1500 cycles DC-23A, 1500 cycles AC-23A
[Icm] rated short-circuit making capacity	100 kA at 400 V with protection by gG fuses
[Ui] rated insulation voltage	750 V AC 50/60 Hz
Short-circuit withstand	10.6 kA
[Uimp] rated impulse withstand voltage	8 kV
Making capacity	500 A at 400 V AC-23B
Connections - terminals	power circuit: lugs-ring terminals6-25 mm²
Mounting support	plate
Type of operating handle	external left side
Environment
Depth	87 mm
Width	121 mm
Fire resistance	960 °C body conforming to IEC 60695-2-1, 850 °C fuse cover conforming to IEC 60695-2-1
IP degree of protection	IP20 conforming to IEC 60529 (with terminal cover)
Ambient air temperature for storage	-40-80 °C
Net weight	0.8 kg
Standards	IEC 60947-3
Ambient air temperature for operation	-20-70 °C
Height	118 mm
Product certifications	CE
