Current limiter, TeSys GV2, 32A/690V, activation 1.5kA, Iq 100kA@400V, device mounting

    Previous Product
Next Product

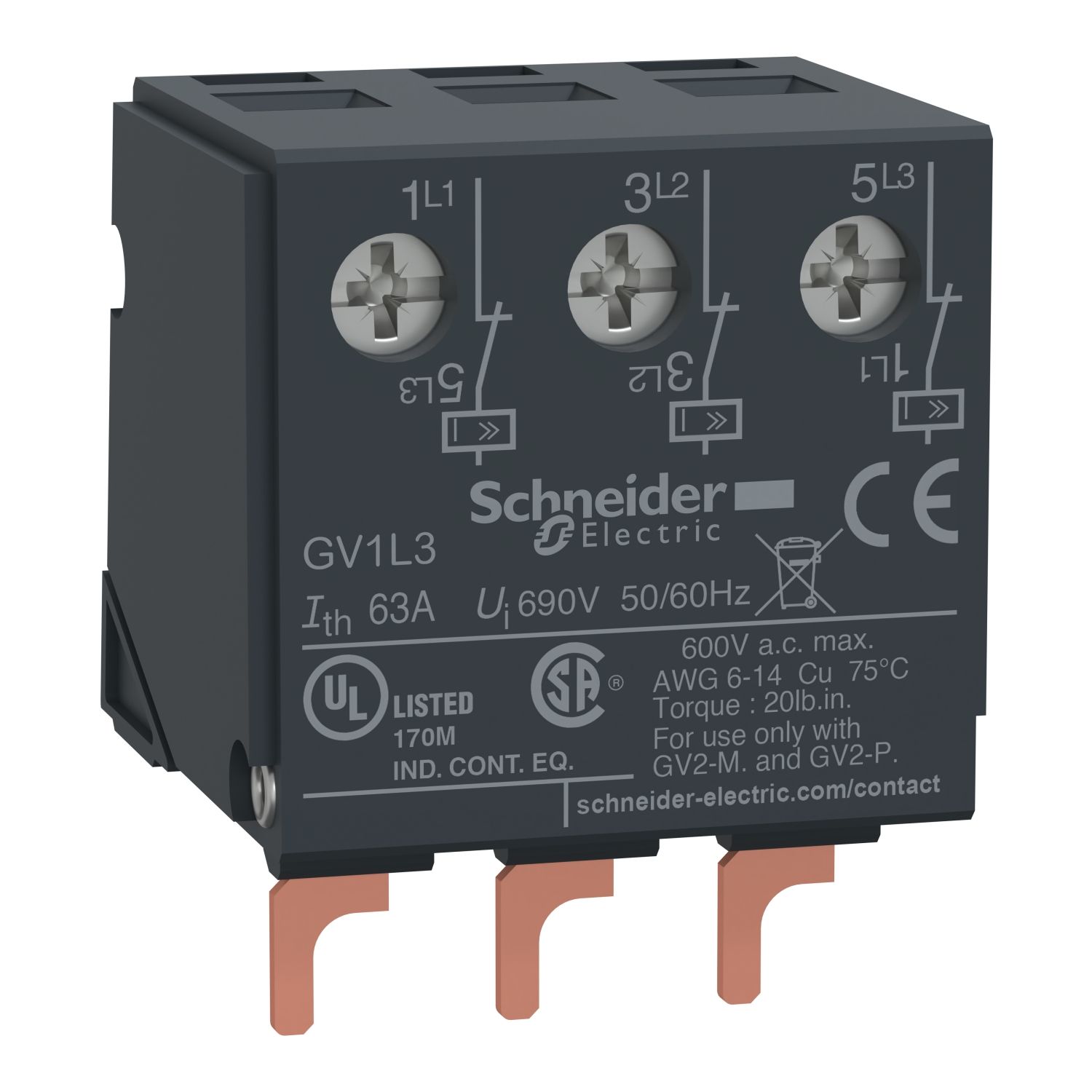

Picture of Current limiter, TeSys GV2, 32A/690V, activation 1.5kA, Iq 100kA@400V, device mounting
Current limiter, TeSys GV2, 32A/690V, activation 1.5kA, Iq 100kA@400V, device mounting
Manufacturer: Schneider Electric
SKU: GV1L3
GTIN: 3389110209952
Catalog
Instruction sheet
Declaration of conformity
Old price: $301.40 inc GST
$119.63 inc GST
Supported cards
Supported cards
TeSys GV short circuit current limiter block for motor circuit breakers GV2L/LE/P/ME/RT. It increases the ability of the circuit breaker to withstand a short circuit current from 50 kA to 100/130kA@400 V. To be mounted on top of a GV2 motor circuit breaker. It conforms to RoHS/REACh regulation.

Products specifications

Attribute name Attribute value
Main
Product compatibility GV2L, GV2P, GV2ME, GV2RT
Range TeSys
Accessory / separate part category protection accessory
Range of product TeSys Deca, TeSys GV2
Function of module increasing the breaking capacity of a circuit breaker
Activation threshold 1500 A
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-1
[Ie] rated operational current 32 A
Breaking capacity <= 100 kA depending on protective device
Mounting location on top of the circuit breaker
Product or component type current limiting module
[Ith] conventional free air thermal current 63 A conforming to IEC 60947-1
Range compatibility TeSys Deca, TeSys GV2
[Ue] rated operational voltage 690 V AC 50/60 Hz
Complementary
Tightening torque 2.2 N.m
Connections - terminals screw clamp terminals 2 x 1.5-4 mm² flexible with cable end, screw clamp terminals 1 x 1.5-16 mm² flexible with cable end, screw clamp terminals 2 x 1.5-10 mm² flexible without cable end, screw clamp terminals 1 x 1.5-25 mm² flexible without cable end, screw clamp terminals 2 x 1.5-10 mm² rigid, screw clamp terminals 1 x 1.5-25 mm² rigid
Net weight 0.13 kg
