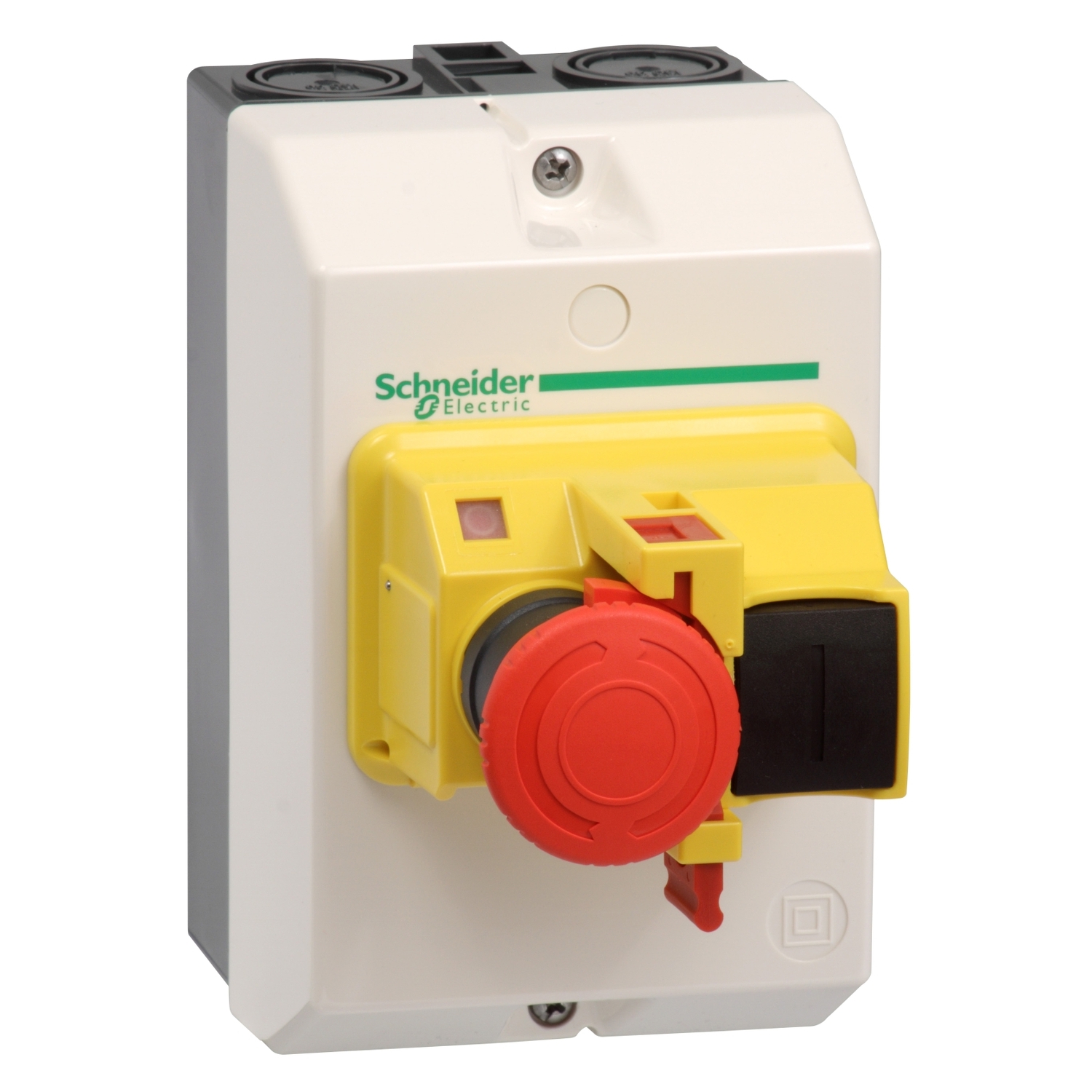

TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection. Already fitted with a mushroom head emergency stop pushbutton GV2K04 , it must be equipped with a motor circuit breaker GV2ME (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GV2MC |
| Product compatibility | GV2ME |
| Provided equipment | mushroom head emergency stop push-button |
| Range | TeSys |
| Enclosure/cubicle description | surface mounting |
| Product or component type | enclosure |
| Accessory / separate part category | mounting accessory |
| Range of product | TeSys GV2 |
| Complementary | |
| Auxiliary mounting location | left, right |
| Depth | 145.5 mm |
| Width | 93 mm |
| Compatibility code | GV2MC |
| Net weight | 0.3 kg |
| Height | 147 mm |
| Environment | |
| Environmental characteristic | standard environment |
| IP degree of protection | IP55 |
| Product certifications | UKCA |
