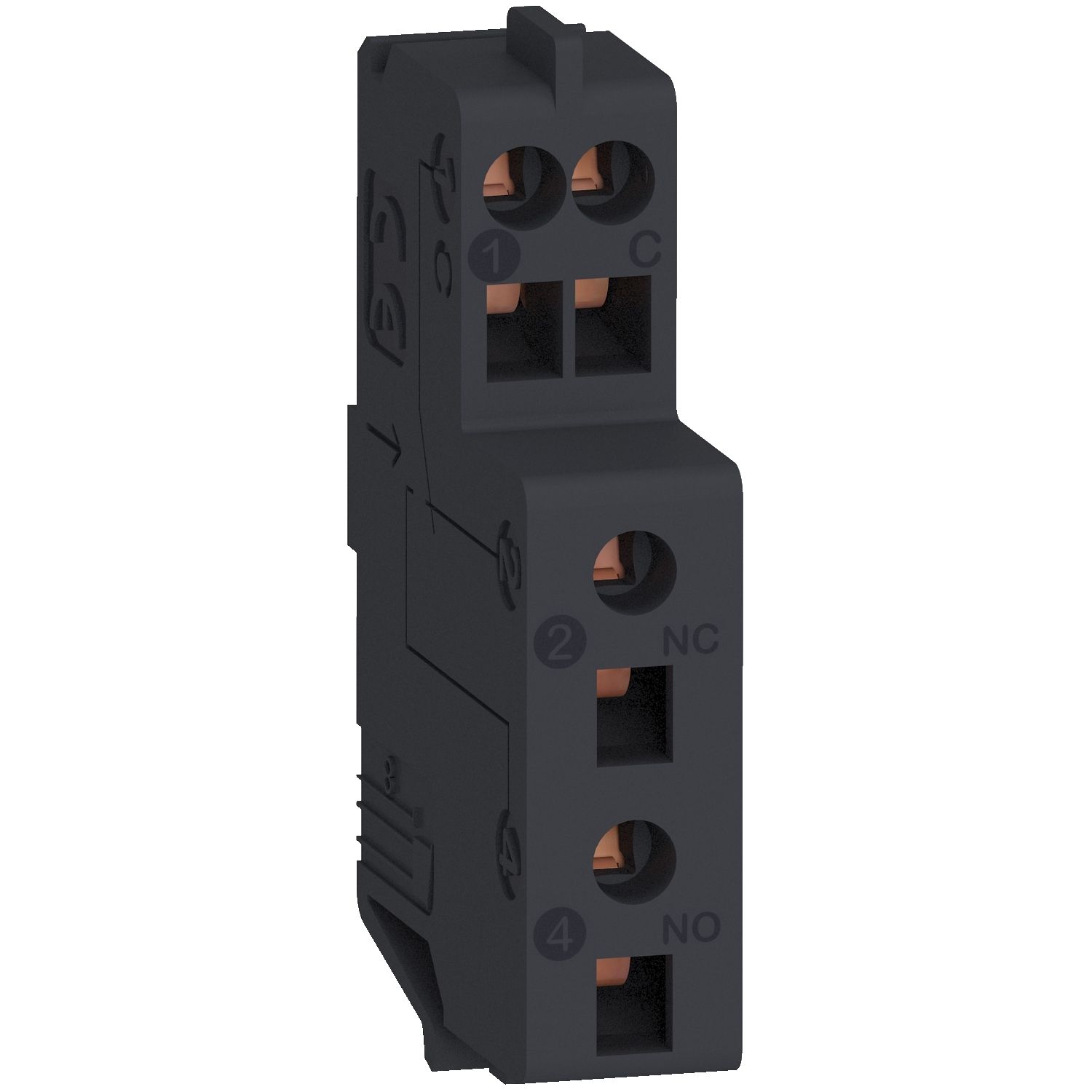

TeSys GV4 auxiliary contact block, for motor circuit breakers GV4. 1C/O contact, it performs Open/Close OF function or Trip alarm SD function, depending of its location in the circuit breaker. Rated for operation up to 5A/690V AC and 5A/250V DC. To be plugged inside the circuit breaker, in the right-hand cavity for OF function, in the left-hand cavity for SD function, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GV4AE |
| Device application | signalling |
| Mounting mode | internal mounting |
| Range | TeSys |
| Product or component type | auxiliary contact |
| [Ith] conventional free air thermal current | 5 A conforming to UL 508, 5 A conforming to CSA C22.2 No 14, 5 A conforming to IEC 60947-5-1 |
| Range compatibility | TeSys TeSys BV4, TeSys TeSys GV4 |
| [Ue] rated operational voltage | <= 690 V |
| Auxiliary contact composition | 1 NO/NC |
| Complementary | |
| Mechanical durability | 40000 cycles |
| Minimum switching voltage | 17 V |
| [Ie] rated operational current | 0.6 A 110/127 V DC-12 conforming to IEC 60947-5-1, 2.5 A 48 V DC-12 conforming to IEC 60947-5-1, 5 A <= 24 V DC-12 conforming to IEC 60947-5-1, 0.11 A 660/690 V AC-15 conforming to IEC 60947-5-1, 2.5 A 380...440 V AC-15 conforming to IEC 60947-5-1, 3 A 220/240 V AC-15 conforming to IEC 60947-5-1, 4 A 110/127 V AC-15 conforming to IEC 60947-5-1, 5 A <= 48 V AC-15 conforming to IEC 60947-5-1, 0.03 A 250 V DC-12 conforming to IEC 60947-5-1, 0.05 A 110/127 V DC-12 conforming to IEC 60947-5-1, 0.2 A 48 V DC-12 conforming to IEC 60947-5-1, 1 A <= 24 V DC-12 conforming to IEC 60947-5-1, 0.05 A 250 V DC-12 conforming to IEC 60947-5-1, 0.35 A 110/127 V DC-12 conforming to IEC 60947-5-1, 1.2 A 48 V DC-12 conforming to IEC 60947-5-1, 2.5 A <= 24 V DC-12 conforming to IEC 60947-5-1, 0.3 A 250 V DC-12 conforming to IEC 60947-5-1, 5 A <= 690 V AC-12 conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-1 |
| Wire stripping length | 8 mm |
| Connections - terminals | spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end |
| Associated fuse rating | 5 A gG at 690 V conforming to IEC 60947-5-1 |
| Rated power in VA | 3450 VA AC-12 at 660/690 V conforming to IEC 60947-5-1, 2200 VA AC-12 at 380/440 V conforming to IEC 60947-5-1, 1200 VA AC-12 at 230/240 V conforming to IEC 60947-5-1, 635 VA AC-12 at 110/127 V conforming to IEC 60947-5-1, 240 VA AC-12 at 48 V conforming to IEC 60947-5-1, 120 VA AC-12 at 24 V conforming to IEC 60947-5-1 |
| Minimum switching current | 2 mA |
| Rated power in W | DC-12: 75 W 250 V conforming to IEC 60947-5-1, DC-12: 66 W 110 V conforming to IEC 60947-5-1, DC-12: 120 W 48 V conforming to IEC 60947-5-1, DC-12: 120 W 24 V conforming to IEC 60947-5-1 |
| Environment | |
| Quantity per set | set of 1 |
