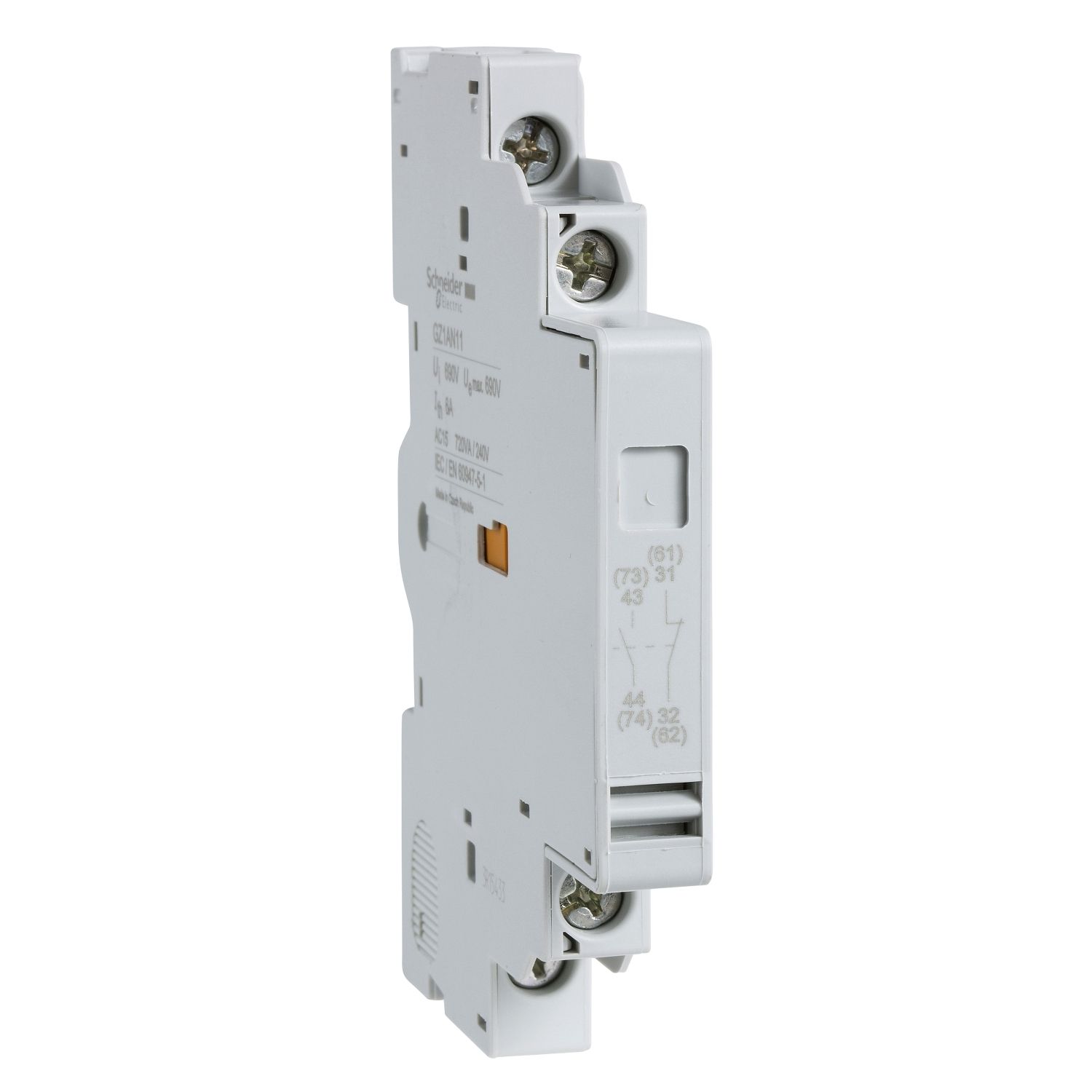

Instantaneous auxiliary contact block for circuit breaker Easy TeSys Power GZ1E/LE. It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals. Clip-on left side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC) and Environmental compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GZ1AN |
| Range | Easy TeSys |
| Connections - terminals | screw clamp terminals 1 cable(s) 0.75-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-2.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.75-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²solid, screw clamp terminals 1 cable(s) 1-2.5 mm²solid |
| Product or component type | auxiliary contact block |
| Range of product | Easy TeSys Power |
| Complementary | |
| Rated operational power in W | 240 W at 48 V DC-13 - electrical durability: 70000 cycles, 180 W at 60 V DC-13 - electrical durability: 70000 cycles, 140 W at 24 V DC-13 - electrical durability: 70000 cycles, 140 W at 110 V DC-13 - electrical durability: 70000 cycles, 120 W at 240 V DC-13 - electrical durability: 70000 cycles |
| Auxiliary contacts operation | instantaneous 1 NO + 1 NC |
| Depth | 66 mm |
| Width | 9.3 mm |
| Compatibility code | GZ1AN |
| Mechanical durability | 100000 cycles |
| Rated operational power in VA | 850 VA at 380-415 V AC-15 - electrical durability: 70000 cycles, 720 VA at 230-240 V AC-15 - electrical durability: 70000 cycles, 650 VA at 440-440 V AC-15 - electrical durability: 70000 cycles, 500 VA at 500-500 V AC-15 - electrical durability: 70000 cycles, 500 VA at 110-127 V AC-15 - electrical durability: 70000 cycles, 400 VA at 690-690 V AC-15 - electrical durability: 70000 cycles, 300 VA at 48-48 V AC-15 - electrical durability: 70000 cycles |
| Minimum switching voltage | 17 V |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-1 |
| Pole contact composition | 1 NO + 1 NC |
| Mounting location | left side |
| Net weight | 0.05 kg |
| Protection type | gG fuse 10 A |
| Range compatibility | EasyPact EasyPact TVS GZ1E circuit breaker |
| [Ue] rated operational voltage | 24...240 V DC, 48...690 V AC |
| [Ith] conventional free air thermal current | 6 A |
| Height | 89 mm |
| Minimum switching current | 5 mA |
