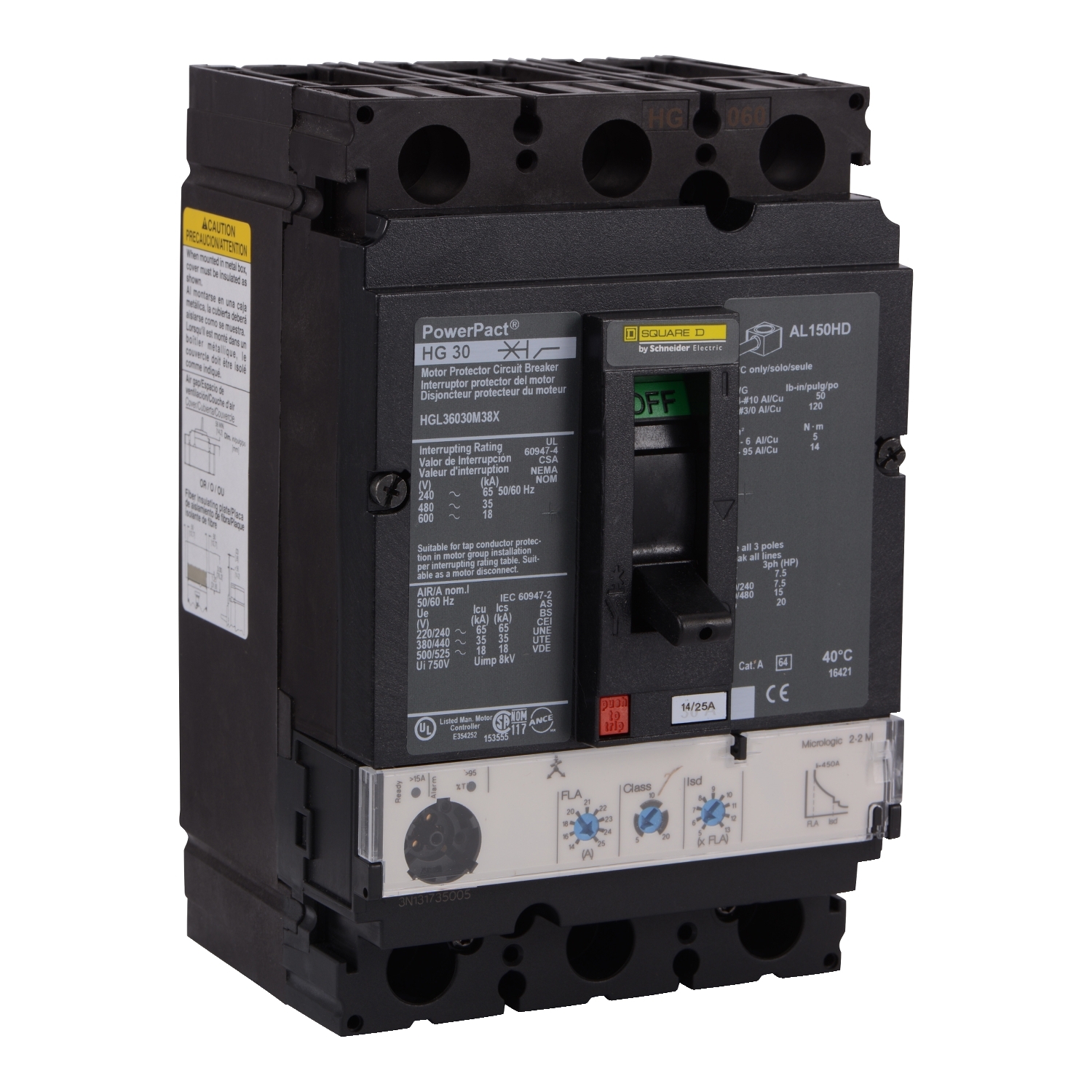

PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic motor circuit protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 15A and is a 3P breaker. This breaker has a breaking capacity of 18 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker has a magnetic tripping current of 500-1300A. This product comes with an 18 months warranty.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | distribution |
| Range | PowerPact |
| Product name | PowerPact H |
| Product or component type | Motor Circuit Protector |
| Complementary | |
| Colour | black |
| AWG gauge | AWG 14...AWG 3/0 aluminium/copper terminal |
| Protection type | phase unbalance, overload protection, short-circuit protection |
| Quantity per set | 1 |
| Suitability for isolation | yes conforming to IEC 60947-2 |
| Breaking capacity | 20 kA at 500 V DC conforming to UL 489, 20 kA at 250 V DC conforming to UL 489, 18 kA at 600 V AC 50/60 Hz conforming to UL 489, 35 kA at 480 V AC 50/60 Hz conforming to UL 489, 65 kA at 240 V AC 50/60 Hz conforming to UL 489 |
| Continuous current rating | 80 % |
| Wire stripping length | 16 mm |
| Control type | toggle |
| Protected poles description | 3t |
| Tightening torque | 14-14 N.m for 10-95 mm² (AWG 8...AWG 3/0), 5-5 N.m for 2.5-6 mm² (AWG 14...AWG 10) |
| Height | 163 mm |
| Trip unit name | MicroLogic 2.2 M |
| [Ith] conventional free air thermal current | 58-130 A |
| [Ics] rated service breaking capacity | 20 kA at 500 V DC conforming to IEC 60947-2, 20 kA at 250 V DC conforming to IEC 60947-2, 18 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA at 380/440/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Depth | 86 mm |
| Width | 104 mm |
| Poles description | 3P |
| Communication interface | Ethernet, Modbus |
| [Ui] rated insulation voltage | 750 V conforming to IEC 60947-2 |
| [In] rated current | 150-150 A |
| Utilisation category | category A |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Net weight | 2.2 kg |
| Electrical connection | lugs, load, lugs, line |
| Number of slots | 1 slot(s) for voltage release MN or MX (plug-in), 1 slot(s) for overcurrent trip switch SDE (plug-in), 1 slot(s) for alarm switch SD (plug-in), 2 slot(s) for auxiliary switch OF (plug-in) |
| Breaking capacity code | G |
| Mounting support | lug |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| Trip unit technology | electronic, standard, MicroLogic 2.2 M, LSoI |
| Terminal identifier | AL150HD |
| Network frequency | 50/60 Hz |
| Mounting mode | unit mount (lug) |
| Environment | |
| Ambient air temperature for storage | -50-85 °C |
| Pollution degree | 3 conforming to IEC 60947-1 |
| IP degree of protection | front cover: IP40 conforming to IEC 60529 |
| Product certifications | NOM, CSA, UL |
| Ambient air temperature for operation | -25-70 °C |
| Operating altitude | 5000 m with derating, < 2000 m without derating |
| Quality labels | CE |
| Standards | IEC 60947-2, NOM-003-SCFI-2000, NEMA, CSA, UL |
