Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

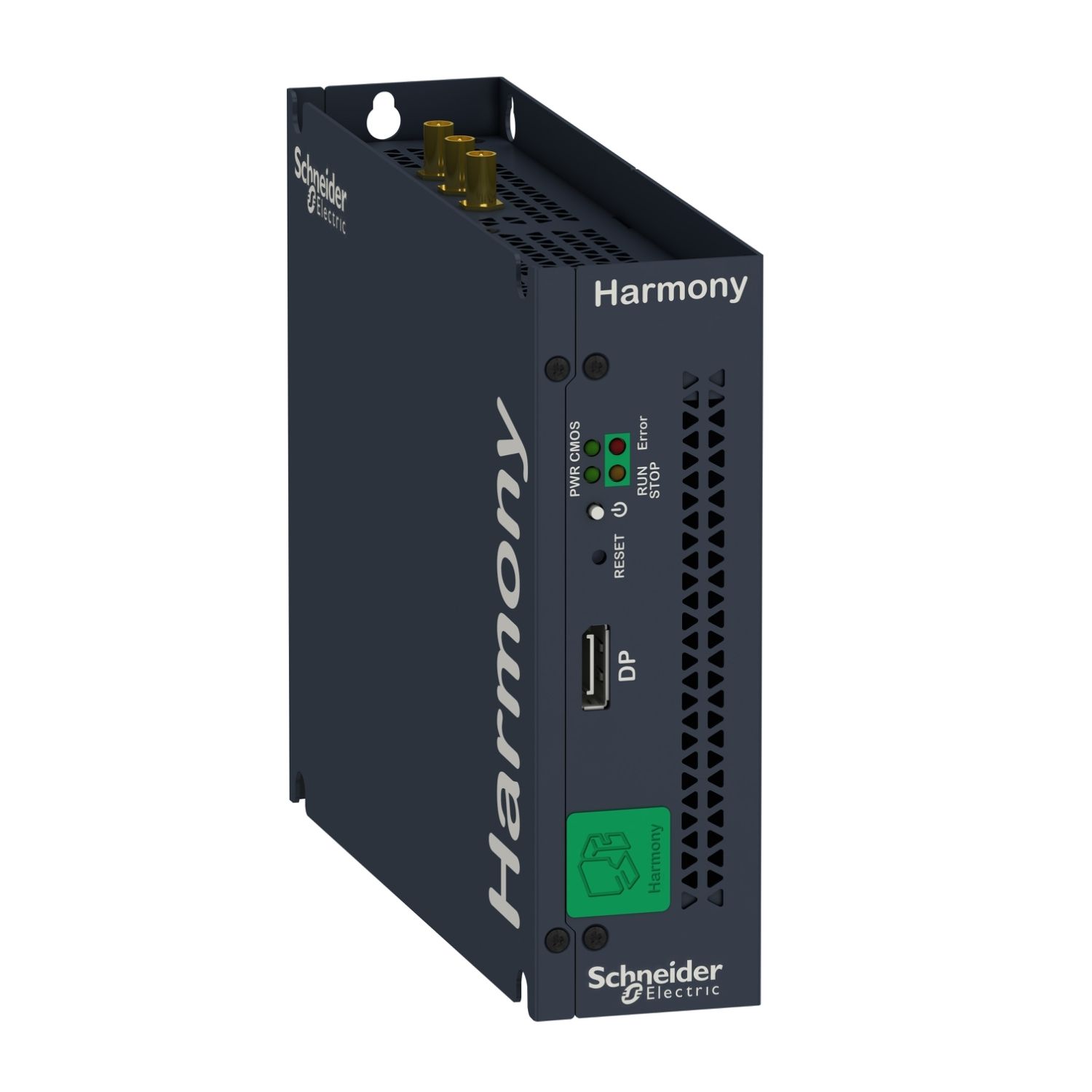

| Device short name | Modular BOX PC basic Optimized |
| Processor name | Intel Atom E3930 upto 1.8 GHz |
| Software package | EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included, McAfee white listing installer cyber security license not included, Node-RED and system nodes restore IIoT Wiring Operating System Restore |
| Range of product | Harmony iPC |
| Range compatibility | Modular Display HMIDM, iDisplay |
| Accessory / separate part destination | PC panel on HMIDM modular display |
| Product or component type | modular box PC |
| Complementary | |
| Data storage equipment | 64 GB eMMC (soldered) |
| Type of cooling | fanless |
| Display resolution | 3200 x 2000 pixels at 60 Hz |
| Number of slots available for expansion | 1.0 slot(s) for mini PCIe |
| Supply voltage limits | 9.6-28.8 V |
| Depth | 46 mm |
| Watchdog timer | 1-255 ms |
| Control type | ON/OFF button |
| Height | 150 mm |
| Electrical connection | connector, connector type: SMA, 3 ways - location: top, screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom |
| Width | 187 mm |
| Integrated connection type | TPM connector Ver 2.0 for cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed on motherboard, USB 3.0 port with 1.0 USB type A, transmission rate: 5 Gbit/s on bottom, USB 2.0 port with 1.0 USB type A, transmission rate: 480 Mbit/s on bottom, COM1 serial link for battery backup with 1 male SUB-D 9 RS232/422/485 on bottom non-isolated, Ethernet with 2 RJ45 I210, transmission rate: 10/100/1000 Mbps on bottom IEEE 1588 supported, display port with 1 on front |
| Memory description | 4 GB RAM DDR3 internal (not expandable) |
| Mounting location | wall mounting, flat mounting, book mounting |
| Net weight | 1.2 kg |
| Main type | Basic Optimised |
| Cyber secured boot | Secure password boot UEFI |
| Number of slots | 1 slot(s) for mini PCI Express full-size with optional interface plate, |
| Inrush current | 2.03 A |
| [Us] rated supply voltage | 100...240 V AC power supply, 24 V DC power supply |
| Power consumption in W | 21.0 W (with Wide 22" display HMIDMA521), 20.0 W (with Wide 19" display HMIDM9521), 19.0 W (with Wide 15" display HMIDM7521), 17.0 W (with 4:3 15" display HMIDM7421), 16.0 W (with Wide 12" display HMIDM6521), 15.0 W (with 4:3 12" display HMIDM6421), 20.0 W (box) |
| Environment | |
| Relative humidity | 10-95 % non-condensing conforming to EN/IEC 60068-2-30 |
| Ambient air temperature for storage | -20-60 °C conforming to IEC 60068-2-14, -20-60 °C conforming to IEC 60068-2-2 |
| Directives | 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Electromagnetic compatibility | conducted and radiated emissions class A conforming to EN 55022, disturbing field emission class A conforming to EN 55011, immunity to high frequency interference conforming to IEC 61000-4 |
| Product certifications | EAC, RCM, CCC, UL 60950 for IT equipments, cULus, CE |
| Standards | UL 60950, FCC part 15, EN 61131-2, EN 61000-6-4, class A group 1 EN 55011 |
| Ambient air temperature for operation | 0-45 °C flat mounting on mini PCIe, 0-45 °C on mini PCIe, 0-50 °C flat mounting, 0-50 °C (by default) conforming to EN/IEC 60068-2-2 |
| Operating altitude | 2000 m conforming to EN/IEC 60664-1 |
| Quality labels | CE |
| Vibration resistance | 2 gn (f = 5-500 Hz) eMMC |
