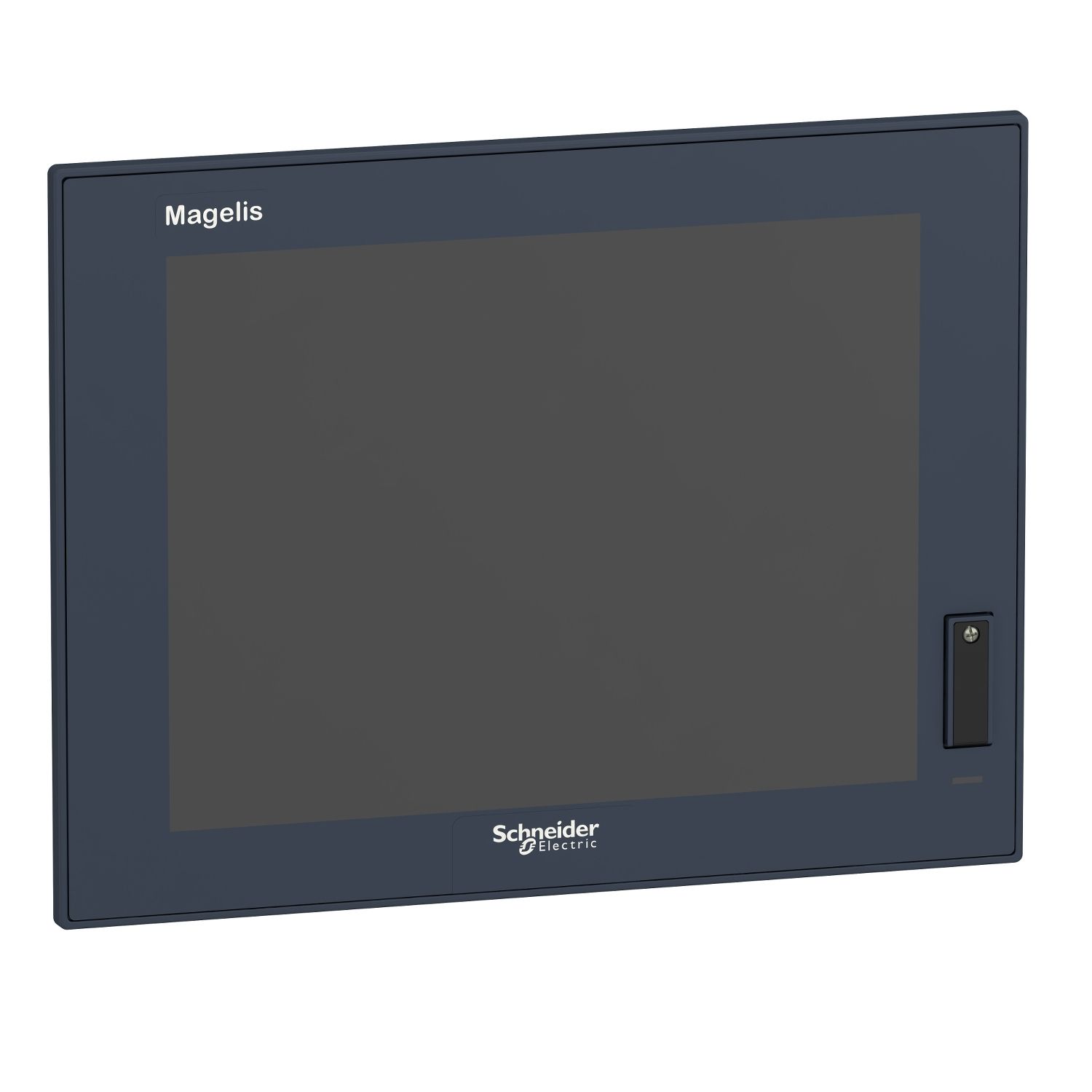

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device mounting | flush |
| Product compatibility | Modular Box PC |
| Range of product | Harmony iPC |
| Terminal type | touchscreen display |
| Product or component type | flat screen |
| Complementary | |
| Display colour | 16777216 colors |
| Display resolution | 1024 x 768 pixels XGA |
| Display size | 12.1 inch |
| Touch panel | single touch analogue resistive |
| Contrast ratio | 500:1 |
| Display type | colour TFT LCD, LED |
| Supply voltage limits | 18-36 V |
| Function available | operate with water on screen |
| Backlight lifespan | 50000 hours at 25 °C |
| Depth | 7 mm, 66.3 mm enclosure: |
| Height | 245.1 mm |
| Aspect ratio | 4:3 |
| Width | 319.1 mm |
| Local signalling | status LED |
| Integrated connection type | USB 2.0 type A |
| View angle horizontal x vertical | 140 x 115° |
| Net weight | 2.3 kg |
| Luminance | 300 cd/m² |
| Touchscreen resolution | 2048 x 2048 |
| Inrush current | 8.9 A |
| [Us] rated supply voltage | 100...240 V AC power supply, 24 V DC power supply |
| Power consumption in W | 52.87 W (Box PC HMIBMU), 57.87 W (Box PC HMIBMP) |
| Environment | |
| Relative humidity | 10-95 % non-condensing |
| Ambient air temperature for storage | -30-70 °C |
| Pollution degree | 2 |
| IP degree of protection | IP66 |
| Product certifications | EAC, IEC-Ex, C-Tick, CE |
| Standards | class I division 2 ANSI/ISA 12-12-01, UL 6110-2-201, CSA C22.2 No 142, class I division 2 CSA C22.2 No 213 |
| Ambient air temperature for operation | 0-55 °C |
| Operating altitude | 2000 m |
| NEMA degree of protection | NEMA 4X |
| Vibration resistance | 2 gn (f = 5-500 Hz) Cfast card, 2 gn (f = 5-500 Hz) SSD, 1 gn (f = 5-500 Hz) HDD |
